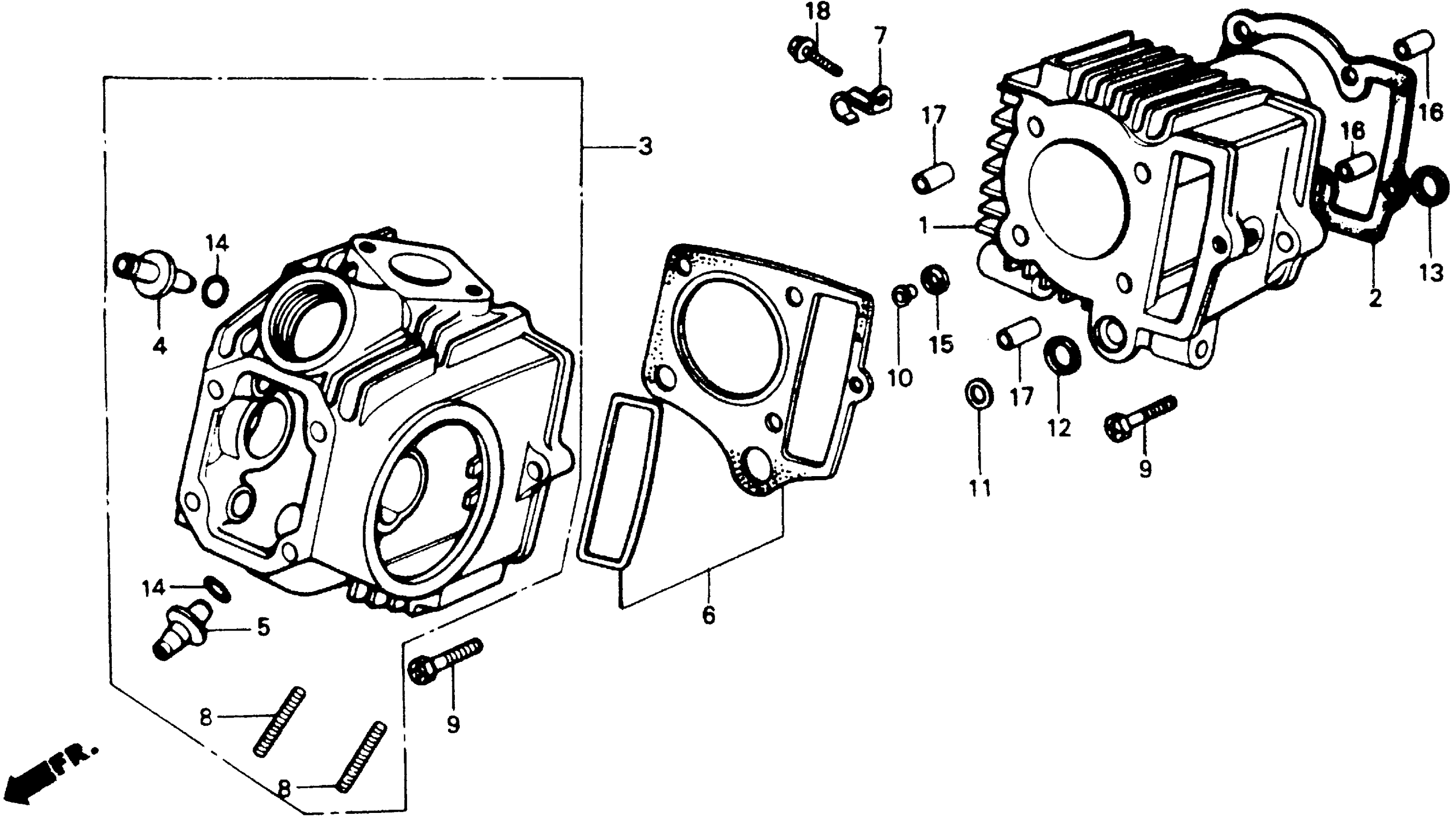

Honda Z50RA (91) MOTORCYCLE, JPN, VIN# JH2AB020-MS000004 TO JH2AB020-MS005474 CYLINDER Diagram

#

Description
Price

1

CYLINDER

12101-GB2-000

$197.73

2

GASKET, CYLINDER This part replaces 12191-GB2-000.

12191-GW8-683

$8.88

2

GASKET, CYLINDER This part replaces 12191-GB2-004.

12191-GW8-683

$8.88

2

GASKET, CYLINDER This part replaces 12191-GB2-306.

12191-GW8-683

$8.88

2

GASKET, CYLINDER This part replaces 12191-GW8-681.

12191-GW8-683

$8.88

2

GASKET, CYLINDER This part replaces 12191-GW8-682.

12191-GW8-683

$8.88

3

CYLINDER HEAD (NOT AVAILABLE)

12200-165-621

Unavailable

4

GUIDE, IN. VALVE (OVER SIZE)

12237-GB4-305

$14.20

5

GUIDE, EX. VALVE (OVER SIZE)

12245-GB4-305

$14.20

6

GASKET ASSY., CYLINDER HEAD (NOT AVAILABLE) This part replaces 12250-GB2-000.

12250-GW8-680

Unavailable

8

BOLT, STUD (6X32)

90033-041-020

$2.25

9

BOLT (6MM)

90082-035-010

$2.39

10

COLLAR (9.5MM)

90602-GB0-911

Unavailable

11

COLLAR (14.8MM)

90603-GB0-911

$3.10

12

O-RING (14.5MM) This part replaces 91301-GB0-911.

91301-GF6-003

$6.69

12

O-RING (14.5MM)

91301-GF6-003

$6.69

13

GASKET, RUBBER (16MM)

91303-035-000

$4.87

14

O-RING (9X1.6) (ARAI) This part replaces 91305-028-158.

91305-028-900

$2.92

14

O-RING (9X1.6) (ARAI)

91305-028-900

$2.92

15

GASKET, RUBBER (9MM)

91306-141-000

$4.65

16

PIN A, DOWEL (8X12)

94301-08120

$2.19

16

PIN A, DOWEL (8X12) This part replaces 90702-GB6-910.

94301-08120

$2.19

17

PIN, DOWEL (8X14)

94301-08140

$2.25
