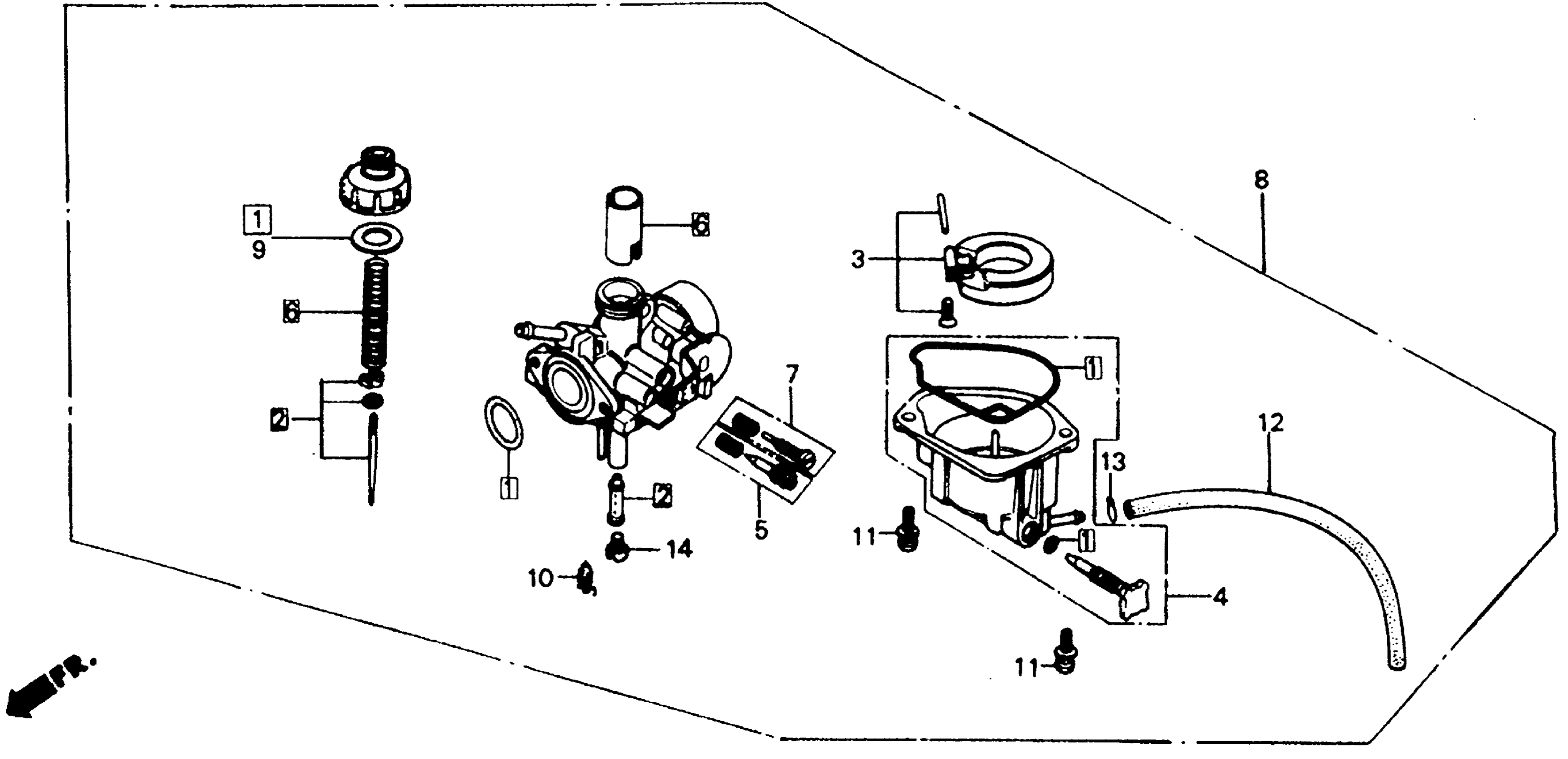

Honda Z50RA (91) MOTORCYCLE, JPN, VIN# JH2AB020-MS000004 TO JH2AB020-MS005474 CARBURETOR Diagram

GASKET SET

16010-181-305

$20.43

GASKET SET This part replaces 16010-181-831.

16010-181-305

$20.43

NEEDLE SET, JET (NOT AVAILABLE)

16012-GW8-671

Unavailable

FLOAT SET

16013-147-004

$44.62

CHAMBER SET, FLOAT

16015-099-691

$95.92

SCREW SET

16016-GW8-672

Unavailable

VALVE SET, THROTTLE This part replaces 16022-GW8-671.

16022-GW8-672

$38.24

VALVE SET, THROTTLE

16022-GW8-672

$38.24

SCREW SET B

16028-GC8-004

$16.35

CARBURETOR ASSY. (PA03H B) (NOT AVAILABLE)

16100-GW8-673

Unavailable

GASKET, TOP

16110-181-831

$4.92

VALVE, FLOAT

16155-883-005

$20.11

SCREW-WASHER (4X12)

93892-04012-08

$1.49

BULK HOSE, FUEL (3.5X3000) (3.5X180)

95001-35003-60M

$20.85

CLIP, TUBE (B7)

95002-02070

$1.80

JET, MAIN (#55) | (Optional).

99101-ZG0-0550

$7.68

JET, MAIN (#55) | (Optional). This part replaces 99101-187-0550.

99101-ZG0-0550

$7.68

JET, MAIN (#58)

99101-187-0580

$8.08
