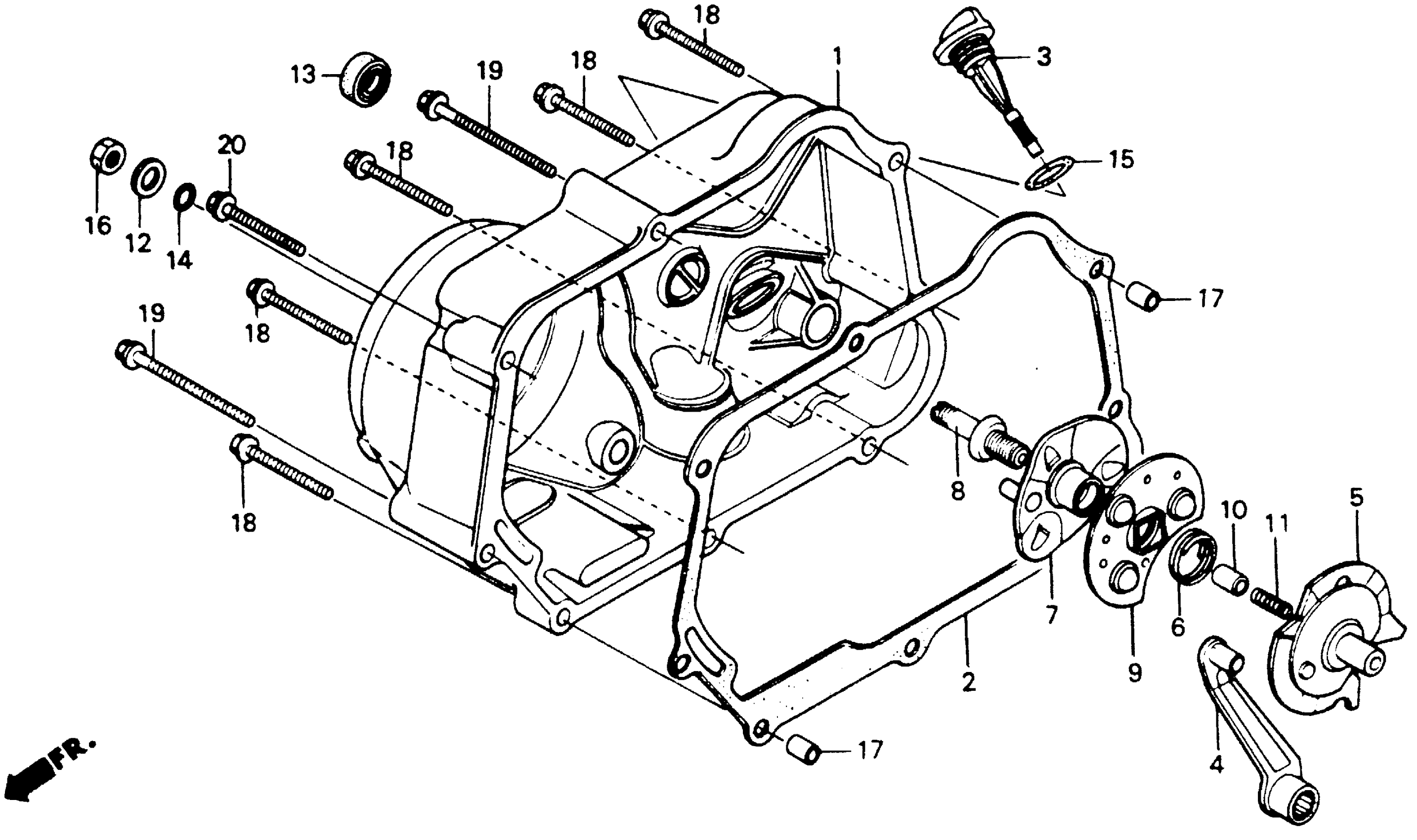

Honda Z50RA (89) MOTORCYCLE, JPN, VIN# JH2AB020-KS000001 TO JH2AB020-KS002752 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-GW8-670

Unavailable

GASKET, R. CRANKCASE COVER This part replaces 11394-035-010.

11394-GW8-682

$13.57

GASKET, R. CRANKCASE COVER This part replaces 11394-035-306.

11394-GW8-682

$13.57

GASKET, R. CRANKCASE COVER This part replaces 11394-GW8-680.

11394-GW8-682

$13.57

DIPSTICK, OIL This part replaces 15651-GB4-790.

15651-179-701

$10.95

LEVER, CLUTCH

22811-040-020

$32.34

PLATE, CLUTCH CAM (SOURCE: VINTAGE PARTS INC.)

22820-957-670

Unavailable

SPRING, CAM PLATE SIDE

22825-046-000

$2.08

PLATE, CLUTCH LIFTER (SOURCE: VINTAGE PARTS INC.)

22830-957-670

Unavailable

BOLT, CLUTCH ADJUSTING

22846-040-010

$6.30

RETAINER, CLUTCH BALL

22860-046-000

$7.04

THROUGH, OIL This part replaces 25551-918-007.

25551-GEL-A80

$6.02

SPRING, OIL THROUGH

25555-065-000

$1.63

WASHER (8MM)

90485-GB4-790

$2.16

OIL SEAL (13.8X24X5)

91202-KFL-841

$5.04

OIL SEAL (14X24X5) This part replaces 91202-302-010.

91202-KFL-841

$5.04

OIL SEAL (14X24X5) This part replaces 91205-HB2-771.

91202-KFL-841

$5.04

OIL SEAL (14X24X5) This part replaces 91205-HB2-772.

91202-KFL-841

$5.04

O-RING (8X1.7) (ARAI) This part replaces 91303-001-000.

91306-HB3-003

$1.81

O-RING (8X1.7) (ARAI)

91306-HB3-003

$1.81

O-RING (18X3)

91307-035-000

$2.92

NUT, HEX. (8MM)

94030-08070

$1.49

PIN A, DOWEL (8X12)

94301-08120

$2.19

PIN A, DOWEL (8X12) This part replaces 90702-GB6-910.

94301-08120

$2.19

BOLT, FLANGE (6X40)

96001-06040-07

$1.49

BOLT, FLANGE (6X65)

96001-06065-07

$1.97

BOLT, FLANGE (6X80)

96001-06080-07

$2.23
