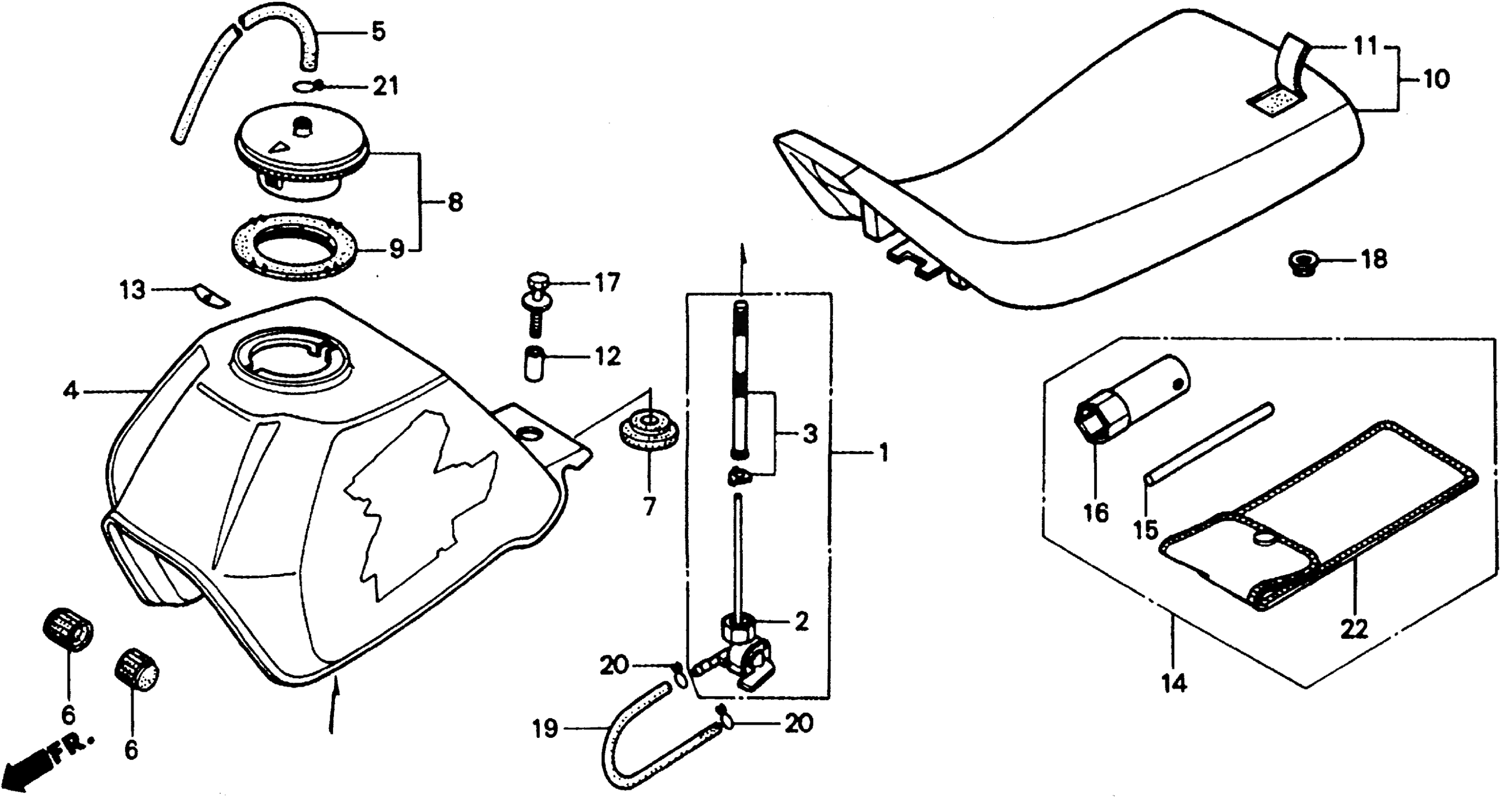

Honda Z50RA (89) MOTORCYCLE, JPN, VIN# JH2AB020-KS000001 TO JH2AB020-KS002752 FUEL TANK + SEAT 88-93 Diagram

#

Description
Price

1

PETCOCK ASSY. This part replaces 16950-166-025.

16950-GW8-670

$69.05

1

PETCOCK ASSY.

16950-GW8-670

$69.05

2

BODY, PETCOCK This part replaces 16951-166-015.

16951-166-025

Unavailable

3

SCREEN SET This part replaces 16952-166-015.

16952-166-305

Unavailable

4

TANK SET, FUEL *R120* (WL) (BLAZE RED) (NOT AVAILABLE)

17500-GW8-770ZA

Unavailable

5

TUBE, FUEL CAP BREATHER (NOT AVAILABLE)

17520-GW8-670

Unavailable

6

RUBBER, FR. FUEL TANK (NOT AVAILABLE)

17611-GW8-670

Unavailable

7

RUBBER, FUEL TANK

17613-120-000

$5.19

8

CAP, FUEL FILLER This part replaces 17620-GM2-000.

17620-GM2-010

Unavailable

9

GASKET | Use up to Frame SN KS002489 This part replaces 17632-176-770.

17632-176-772

$11.02

9

GASKET This part replaces 17632-176-771.

17632-176-772

$11.02

10

SEAT (TYPE1) (NOT AVAILABLE) This part replaces 77200-GW8-770.

77200-GW8-A10ZA

Unavailable

11

COVER, SEAT This part replaces 77201-GW8-306.

77201-GW8-920

Unavailable

12

COLLAR B, RR. FENDER

80109-061-010

$3.15

13

MARK, ARROW This part replaces 87575-GW8-670ZA.

87575-GW8-670

Unavailable

14

TOOL SET (NOT AVAILABLE)

89010-GW8-670

Unavailable

15

BAR, PLUG WRENCH

89211-170-000

$2.47

16

WRENCH, SPARK PLUG

89216-130-690

$7.16

17

BOLT-WASHER (6X25)

93404-06025-00

$1.49

18

NUT, FLANGE (6MM)

94050-06000

$1.49

19

BULK HOSE, FUEL (4.5X3000) (4.5X130)

95001-45003-60M

$36.67

20

CLIP, TUBE (B8)

95002-02080

$1.80

21

CLIP, TUBE (C9)

95002-50000

$1.49

22

BAG, TOOL (160MM)

99008-01600

$2.22
