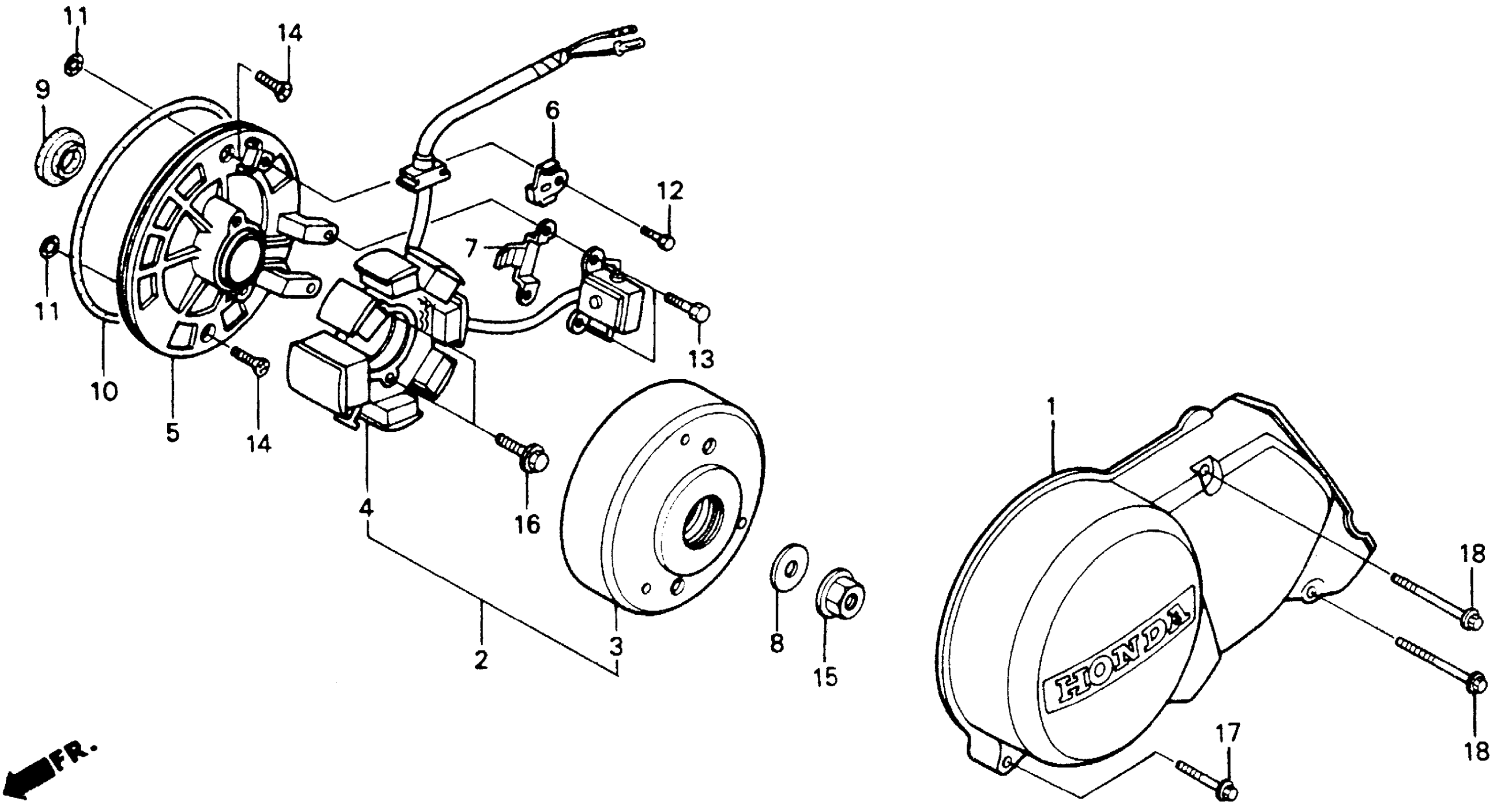

Honda Z50RA (89) MOTORCYCLE, JPN, VIN# JH2AB020-KS000001 TO JH2AB020-KS002752 ALTERNATOR 88-93 Diagram

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-GW8-670

Unavailable

ALTERNATOR ASSY., FLYWHEEL TYPE (MITSUBA) (NOT AVAILABLE)

31100-GW8-671

Unavailable

FLYWHEEL (MITSUBA) (NOT AVAILABLE)

31110-GS9-008

Unavailable

STATOR (MITSUBA)

31120-GW8-671

$217.51

BASE, STATOR | Use up to Engine SN KS002658 This part replaces 31131-GS9-010.

31131-GS9-505

Unavailable

BASE, STATOR | Use from Engine SN KS002659

31131-GS9-020

$47.55

CLAMP, ALTERNATOR WIRE (NOT AVAILABLE) | Use up to Engine SN KS002658

32961-GS9-000

Unavailable

CLAMP, ALTERNATOR WIRE | Use from Engine SN KS002659

32961-GS9-010

$4.24

CLAMP, PULSER WIRE

32962-GS9-000

$4.94

WASHER, MAGNET FIXING

90426-035-000

$2.57

OIL SEAL (18.9X30X5) This part replaces 91202-GE0-003.

91202-GK4-722

$6.14

OIL SEAL (18.9X30X5) This part replaces 91202-GE0-015.

91202-GK4-722

$6.14

OIL SEAL (18.9X30X5)

91202-GK4-722

$6.14

O-RING (107X2) (ARAI)

91301-035-003

$7.05

O-RING (6X1.7) (ARAI)

91317-171-003

$2.92

BOLT, HEX. (5X6)

93301-05006-0H

$1.49

BOLT, HEX. (5X10)

93301-05010-0H

$1.49

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

NUT, FLANGE (10MM)

94050-10000

$1.59

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

BOLT, FLANGE (6X28)

96001-06028-07

$1.51

BOLT, FLANGE (6X35)

96001-06035-00

$1.49
