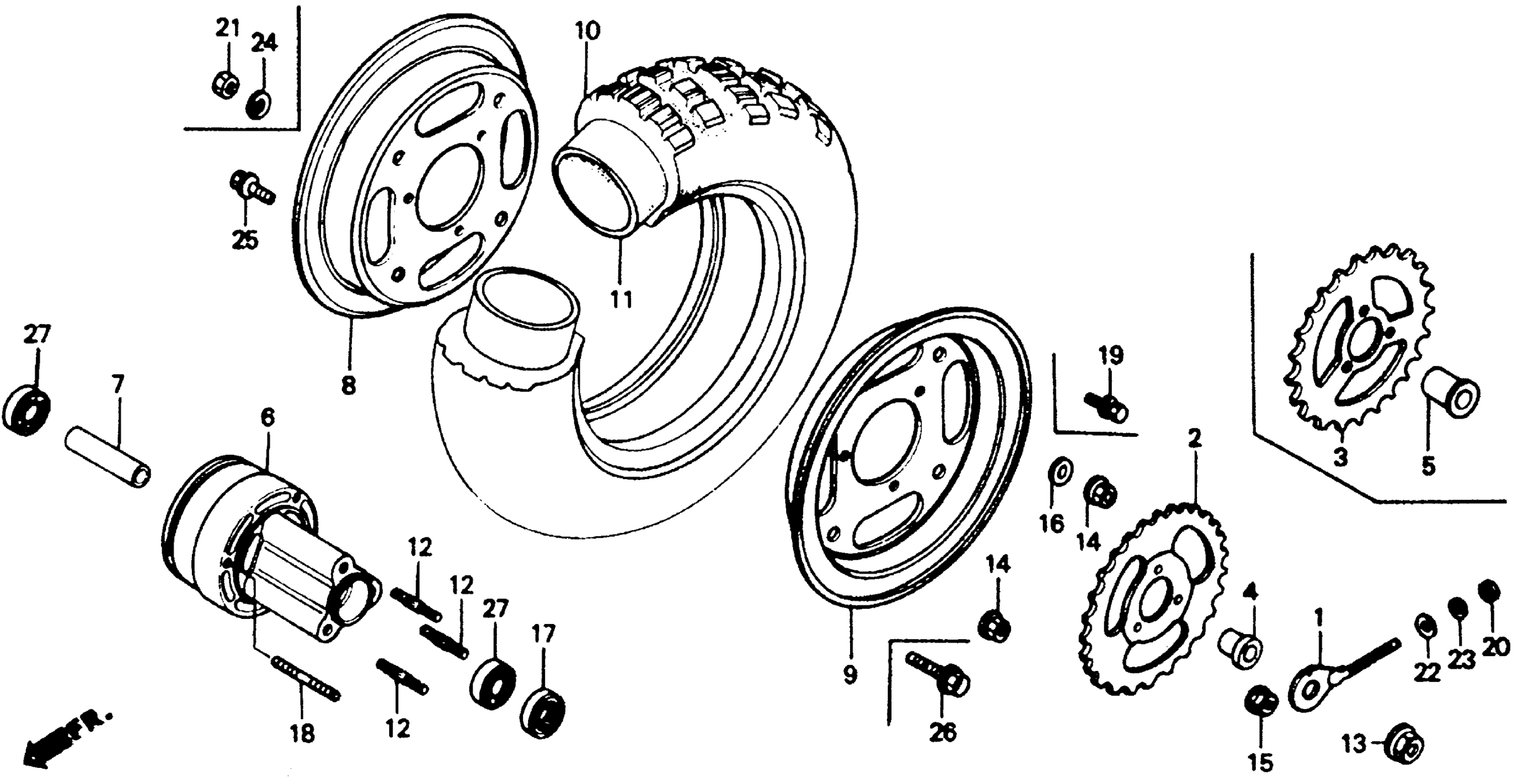

Honda Z50RA (88) MOTORCYCLE, JPN, VIN# JH2AB020-JS900005 TO JH2AB020-JS903187 REAR WHEEL Diagram

#

Description
Price

1

ADJUSTER S, R. CHAIN

95014-10010

$4.53

2

SPROCKET, FINAL DRIVEN (37T) This part replaces 41201-GW8-670.

41201-GW8-680

$79.32

2

SPROCKET, FINAL DRIVEN (37T)

41201-GW8-680

$79.32

4

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42312-GW8-670

Unavailable

6

HUB, RR. WHEEL *NH138* (SHASTA WHITE) (NOT AVAILABLE)

42601-181-830ZB

Unavailable

7

COLLAR, RR. AXLE DISTANCE

42620-165-405

Unavailable

7

COLLAR, RR. AXLE DISTANCE This part replaces 42620-165-890.

42620-165-405

Unavailable

8

RIM, R. WHEEL *NH138* (SHASTA WHITE) This part replaces 42701-165-890ZC.

42701-165-891ZA

$56.98

8

RIM, R. WHEEL *NH138* (SHASTA WHITE)

42701-165-891ZA

$56.98

9

RIM, L. WHEEL *NH138* (SHASTA WHITE) This part replaces 42702-165-890ZC.

42702-165-891ZA

$53.73

9

RIM, L. WHEEL *NH138* (SHASTA WHITE)

42702-165-891ZA

$53.73

10

TIRE, WHEEL (3.50-8) (2PR/35J) (INOUE)

42711-181-003

Unavailable

11

TUBE, TIRE (3.00-8) (IRC)

42712-GC3-004

$26.73

11

TUBE, TIRE (3.00-8) (IRC) This part replaces 44712-045-670.

42712-GC3-004

$26.73

11

TUBE, TIRE (3.00-8) (IRC) This part replaces 44712-120-154.

42712-GC3-004

$26.73

12

BOLT, STUD (8X25) (NOT AVAILABLE)

92910-08025-3E

Unavailable

13

NUT, FLANGE (12MM) (FUSERASHI)

90306-KF0-003

$3.85

15

NUT, HEX. (8MM)

90309-357-000

$3.40

17

OIL SEAL (18X32X8)

91251-045-005

$5.05

19

BOLT-WASHER (8X16) This part replaces 93482-08016-00.

93412-08016-00

Unavailable

19

BOLT-WASHER (8X16)

93412-08016-00

Unavailable

20

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM)

94001-06200-0S

$1.49

21

NUT, HEX. (8MM)

94030-08000

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

22

WASHER, PLAIN (6MM)

94101-06800

$1.49

23

WASHER, SPRING (6MM)

94111-06000

$1.49

24

WASHER, SPRING (8MM)

94111-08000

$1.49

26

BOLT, SPLIT WHEEL

90194-567-010

$3.08

27

BEARING, RADIAL BALL (6201U)

96140-62010-10

$10.28
