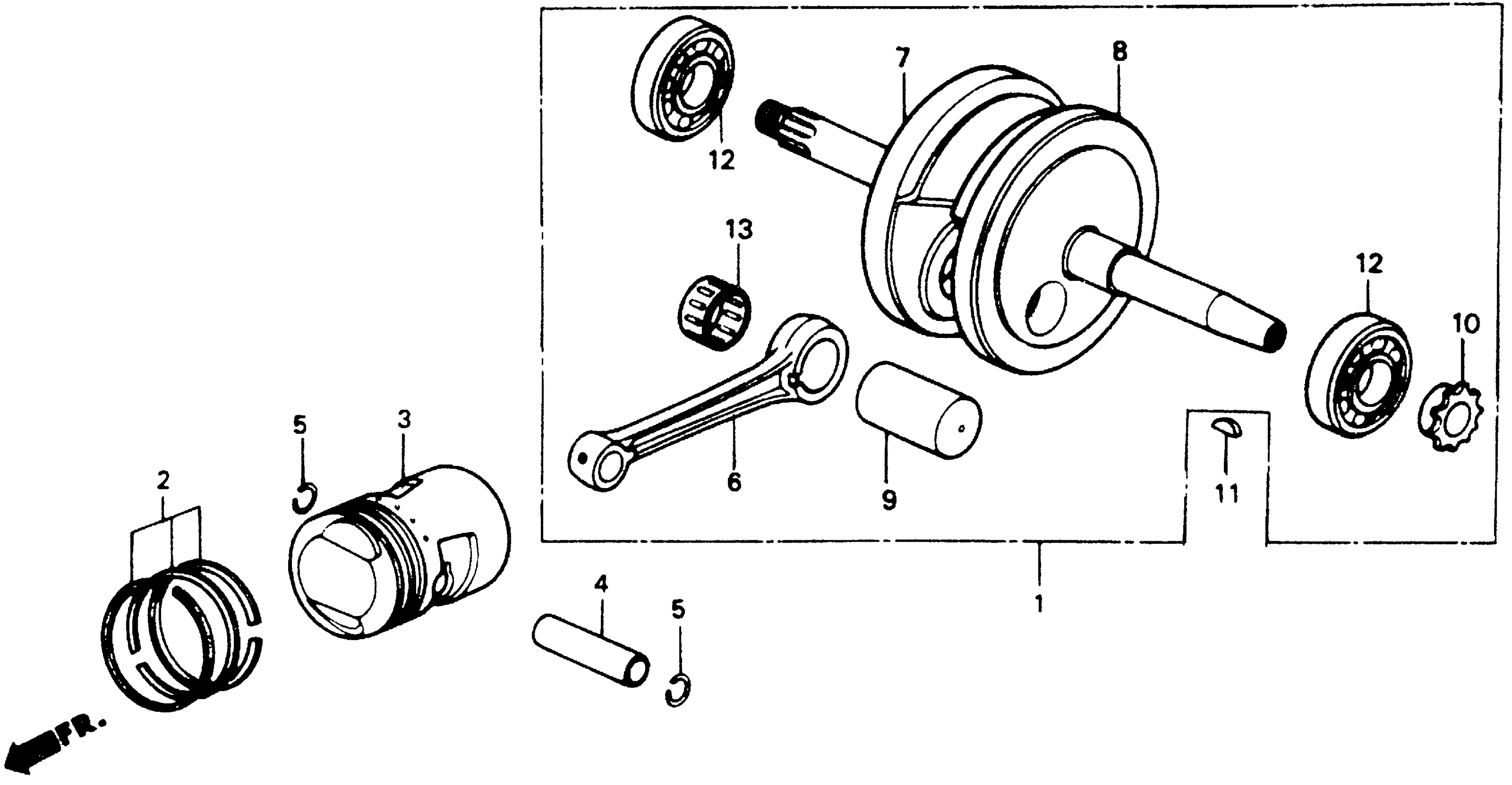

Honda Z50RA (87) MOTORCYCLE, JPN, VIN# JH2AB020-HS800001 TO JH2AB020-HS803002 CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT (NOT AVAILABLE)

13000-181-750

Unavailable

2

RING SET, PISTON (STD) This part replaces 13010-GB2-004.

13010-GB2-014

Unavailable

2

RING SET, PISTON (STD) This part replaces 13010-GB2-005.

13010-GB2-014

Unavailable

2

RING SET, PISTON (STD)

13010-GB2-014

Unavailable

2

RING SET, PISTON (STD) This part replaces 13011-GB2-004.

13010-GB2-014

Unavailable

2

RING SET, PISTON (STD) This part replaces 13011-GB2-005.

13010-GB2-014

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.25) (SOURCE: VINTAGE PARTS INC.) | (Optional). This part replaces 13020-GB2-004.

13020-GB2-014

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.25) (SOURCE: VINTAGE PARTS INC.) | (Optional). This part replaces 13020-GB2-005.

13020-GB2-014

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.25) (SOURCE: VINTAGE PARTS INC.) | (Optional).

13020-GB2-014

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.25) (SOURCE: VINTAGE PARTS INC.) | (Optional). This part replaces 13021-GB2-004.

13020-GB2-014

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.25) (SOURCE: VINTAGE PARTS INC.) | (Optional). This part replaces 13021-GB2-005.

13020-GB2-014

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13030-GB2-004.

13030-GB2-014

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13030-GB2-005.

13030-GB2-014

Unavailable

2

RING SET, PISTON (0.75) | (Optional). This part replaces 13040-GB2-004.

13040-GB2-014

Unavailable

2

RING SET, PISTON (0.75) | (Optional). This part replaces 13040-GB2-005.

13040-GB2-014

Unavailable

2

RING SET, PISTON (1.00) (SOURCE: VINTAGE PARTS INC.) | (Optional). This part replaces 13050-GB2-004.

13050-GB2-014

Unavailable

2

RING SET, PISTON (1.00) (SOURCE: VINTAGE PARTS INC.) | (Optional). This part replaces 13050-GB2-005.

13050-GB2-014

Unavailable

2

RING SET, PISTON (1.00) (SOURCE: VINTAGE PARTS INC.) | (Optional).

13050-GB2-014

Unavailable

2

RING SET, PISTON (1.00) (SOURCE: VINTAGE PARTS INC.) | (Optional). This part replaces 13051-GB2-004.

13050-GB2-014

Unavailable

2

RING SET, PISTON (1.00) (SOURCE: VINTAGE PARTS INC.) | (Optional). This part replaces 13051-GB2-005.

13050-GB2-014

Unavailable

3

PISTON (STD) (NOT AVAILABLE)

13101-GB2-010

Unavailable

3

PISTON (OVER SIZE) (0.25) (NOT AVAILABLE) | (Optional).

13102-GB2-010

Unavailable

3

PISTON (OVER SIZE) (0.50) (SOURCE: VINTAGE PARTS INC.) | (Optional).

13103-GB2-010

Unavailable

3

PISTON (OVER SIZE) (0.75) (NOT AVAILABLE) | (Optional).

13104-GB2-010

Unavailable

3

PISTON (1.00) (NOT AVAILABLE) | (Optional).

13105-GB2-010

Unavailable

4

PIN, PISTON This part replaces 13111-036-000.

13111-GB2-000

$9.19

4

PIN, PISTON

13111-GB2-000

$9.19

5

CLIP, PISTON PIN (13MM) This part replaces 13115-001-000.

94601-13000

$1.49

5

CLIP, PISTON PIN (13MM)

94601-13000

$1.49

6

ROD, CONNECTING (SOURCE: VINTAGE PARTS INC.)

13201-GB2-300

Unavailable

7

CRANKSHAFT, R. (NOT AVAILABLE)

13311-035-050

Unavailable

8

CRANKSHAFT, L. This part replaces 13321-086-300.

13321-165-650

Unavailable

9

PIN, CRANK This part replaces 13381-178-300.

13381-GB1-900

Unavailable

10

SPROCKET, TIMING (14T)

14311-035-000

$19.28

11

KEY, WOODRUFF (3MM)

90741-035-000

$4.19

12

BEARING, RADIAL BALL (6304)

91001-GF6-004

$20.45

12

BEARING, RADIAL BALL (6304) This part replaces 91001-035-000.

96100-63040-00

$14.40

12

BEARING, RADIAL BALL (6304) This part replaces 91001-035-008.

91001-GF6-004

$20.45

12

BEARING, RADIAL BALL (6304) This part replaces 96100-63040.

96100-63040-00

$14.40

12

BEARING, RADIAL BALL (6304)

96100-63040-00

$14.40

13

BEARING, CONNECTING ROD (RED) (NOT AVAILABLE)

91101-GB4-681

Unavailable

13

BEARING, CONNECTING ROD (BLUE)

91102-GB4-681

Unavailable

13

BEARING, CONNECTING ROD (WHITE)

91103-GB4-681

$23.20
