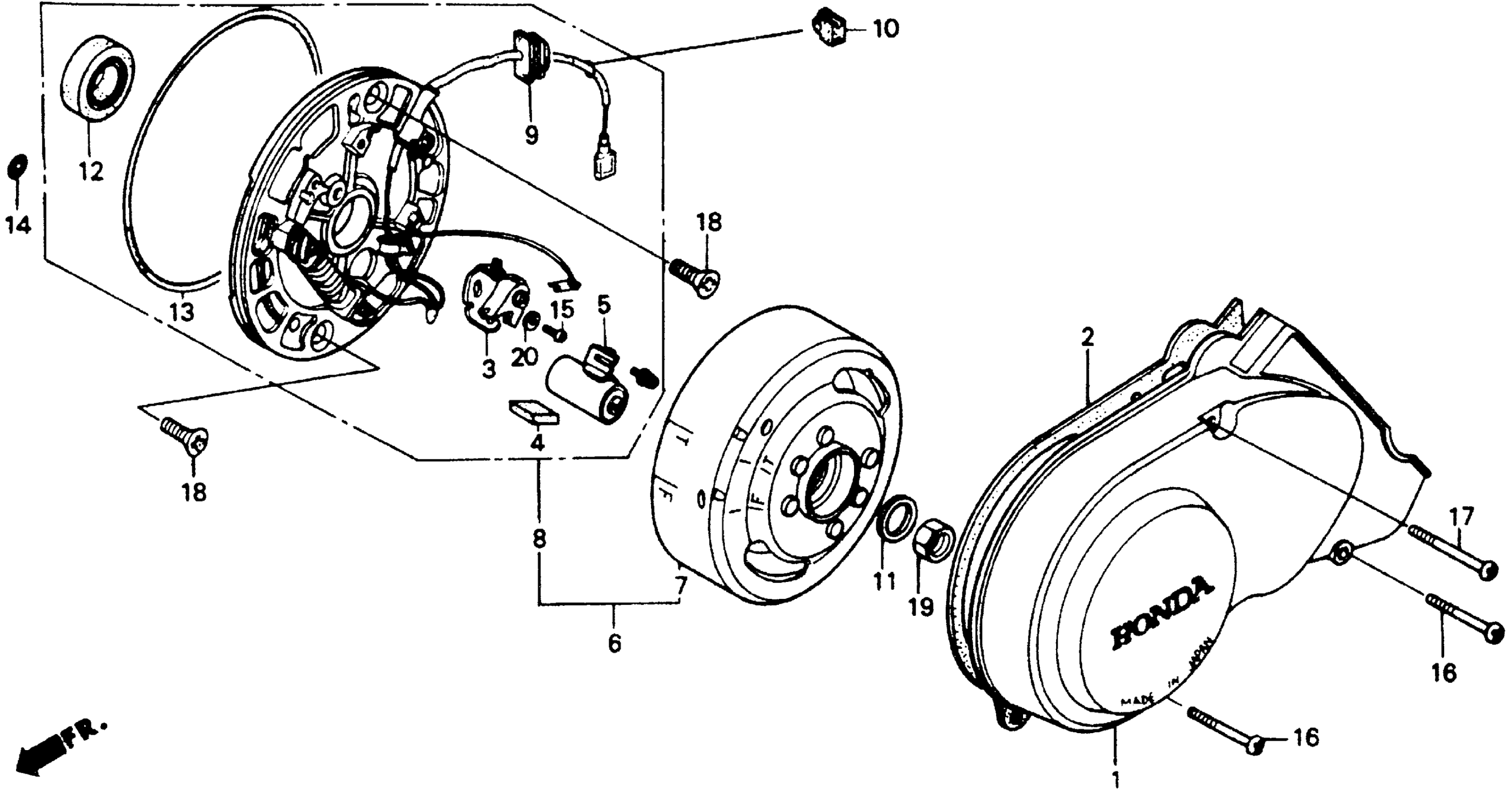

Honda Z50RA (87) MOTORCYCLE, JPN, VIN# JH2AB020-HS800001 TO JH2AB020-HS803002 ALTERNATOR 86-87 Diagram

COVER, L. CRANKCASE This part replaces 11341-181-771.

11341-165-750

Unavailable

GASKET, L. This part replaces 11401-937-000.

11401-937-306

Unavailable

POINTS (HITACHI)

30202-041-015

$29.26

FELT, OIL (HITACHI)

30205-041-005

$3.83

CONDENSER (HITACHI)

30250-041-005

$24.74

ALTERNATOR ASSY., FLYWHEEL TYPE (HITACHI) (NOT AVAILABLE)

31100-181-830

Unavailable

FLYWHEEL (NOT AVAILABLE)

31121-181-830

Unavailable

STATOR (NOT AVAILABLE)

31141-181-830

Unavailable

GROMMET, ALTERNATOR WIRE (NOT AVAILABLE)

32971-116-000

Unavailable

GROMMET, NEUTRAL SWITCH WIRE (NOT AVAILABLE)

32981-035-000

Unavailable

WASHER, MAGNET FIXING

90426-035-000

$2.57

OIL SEAL (18.9X30X5) This part replaces 91202-GE0-003.

91202-GK4-722

$6.14

OIL SEAL (18.9X30X5) This part replaces 91202-GE0-015.

91202-GK4-722

$6.14

OIL SEAL (18.9X30X5)

91202-GK4-722

$6.14

O-RING (107X2) (ARAI)

91301-035-003

$7.05

O-RING (6X1.7) (ARAI)

91317-171-003

$2.92

SCREW, PAN (4X10)

93500-04010-0A

$1.49

SCREW, PAN (6X28)

93500-06028-0A

$1.49

SCREW, PAN (6X35)

93500-06035-0A

$1.49

SCREW, PAN (6X35) This part replaces 93500-06036-0A.

93500-06035-0A

$1.49

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

NUT, FLANGE (10MM)

94050-10000

$1.59

WASHER, SPRING (4MM)

94111-04000

$1.49
