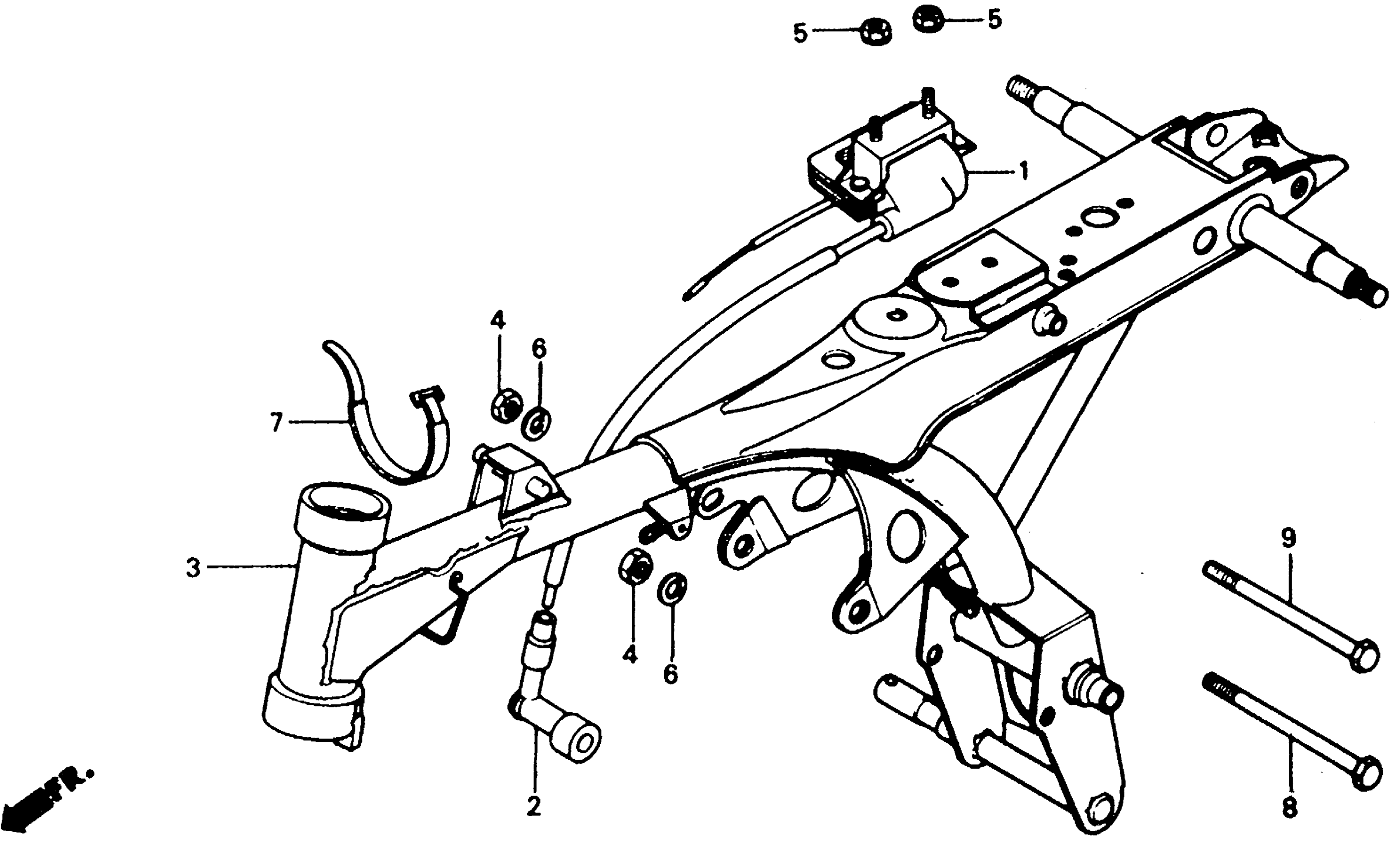

Honda Z50RA (86) MOTORCYCLE, JPN, VIN# JH2AB020-GS700001 TO JH2AB020-GS711651 FRAME 86-87 Diagram

#

Description

Price

1

COIL ASSY., A.C. IGNITION (NOT AVAILABLE)

30500-165-600

Unavailable

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-165-600.

30700-GJ5-010

Unavailable

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-196-010.

30700-GJ5-010

Unavailable

3

FRAME R120 (BLAZE RED) (NOT AVAILABLE)

50100-181-830ZA

Unavailable

4

NUT, HEX. (8MM)

94030-08000

$0.97

5

NUT, FLANGE (6MM)

94050-06000

$0.59

6

WASHER, SPRING (8MM)

94111-08000

$0.90

7

BAND A3, WIRE

95014-61300

$1.80

8

BOLT, HEX. (8X98) (NOT AVAILABLE)

95300-08098-00

Unavailable

9

BOLT, HEX. (8X111)

95300-08111-00

$2.80
