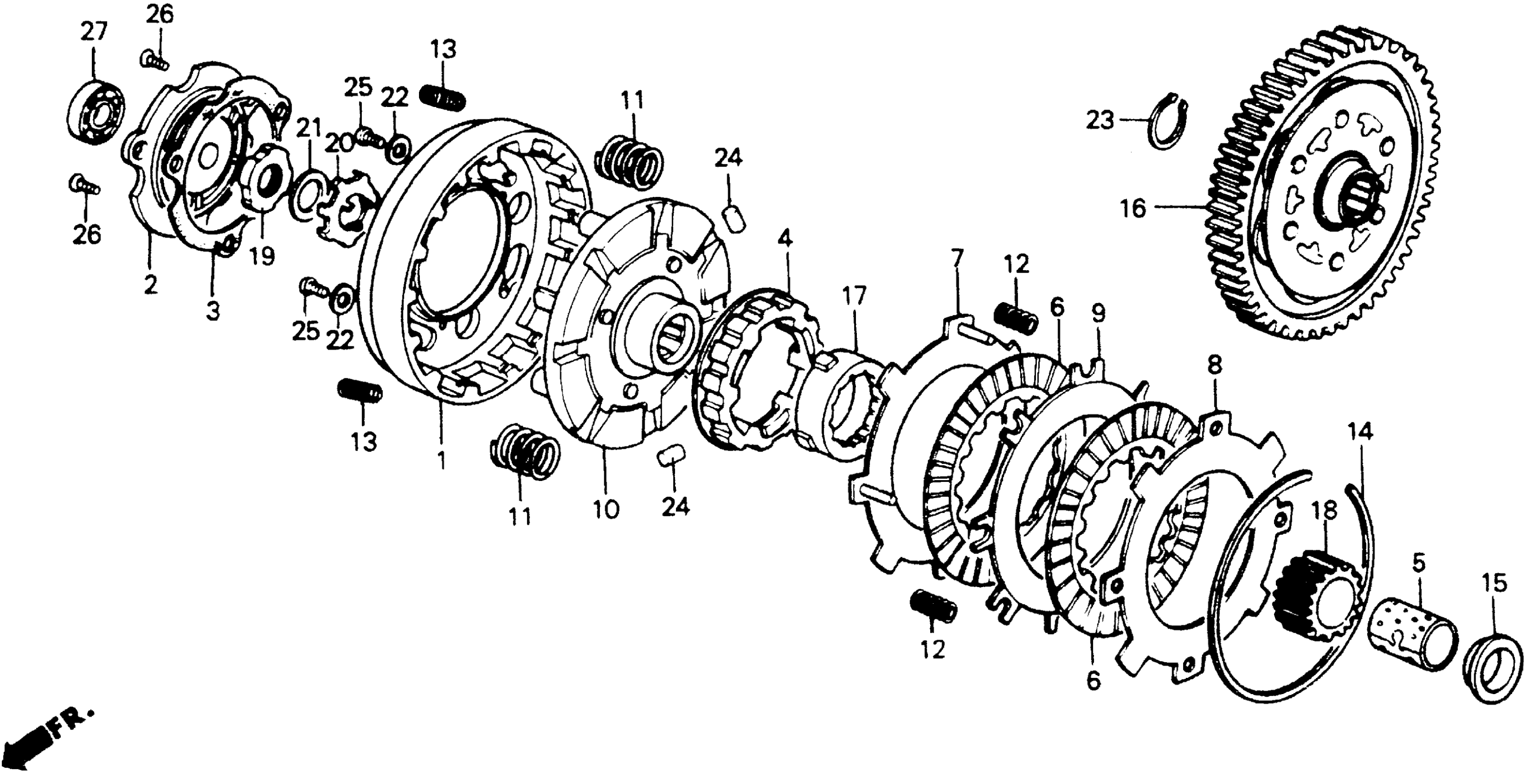

Honda Z50RA (86) MOTORCYCLE, JPN, VIN# JH2AB020-GS700001 TO JH2AB020-GS711651 CLUTCH 86-87 Diagram

#

Description
Price

1

CLUTCH (OUTER) (NOT AVAILABLE)

22101-040-030

Unavailable

2

COVER, CLUTCH (OUTER) (NOT AVAILABLE)

22111-040-000

Unavailable

3

GASKET, CLUTCH COVER (OUTER) This part replaces 22119-040-000.

22119-040-010

$3.40

3

GASKET, CLUTCH COVER (OUTER)

22119-040-010

$3.40

4

CENTER, CLUTCH (17T)

22120-040-030

$72.13

5

GUIDE, CLUTCH CENTER

22131-035-030

$20.39

6

DISK, CLUTCH FRICTION This part replaces 22201-040-000.

22201-165-951

$14.21

6

DISK, CLUTCH FRICTION This part replaces 22201-087-306.

22201-165-951

$14.21

6

DISK, CLUTCH FRICTION

22201-165-951

$14.21

7

PLATE A, CLUTCH

22310-GB0-910

$14.59

8

PLATE B, CLUTCH This part replaces 22321-041-000.

22321-046-020

$9.83

8

PLATE B, CLUTCH

22321-046-020

$9.83

9

PLATE C, CLUTCH

22331-041-000

Unavailable

10

PLATE, DRIVE (NOT AVAILABLE)

22351-120-691

Unavailable

11

SPRING, CLUTCH

22401-040-010

Unavailable

12

SPRING, CLUTCH FREE

22411-041-000

$2.13

13

SPRING, CLUTCH DAMPER

22421-040-000

$2.03

14

SET-RING (102MM)

22901-001-000

$4.02

15

COLLAR (17MM)

22911-GB4-680

$6.74

16

GEAR, PRIMARY DRIVEN (67T)

23110-GCF-670

$123.47

16

GEAR, PRIMARY DRIVEN (67T) This part replaces 23110-098-740.

23110-GCF-670

$123.47

17

OUTER, DRIVE GEAR (18T) This part replaces 23112-041-040.

23112-041-050

$32.74

17

OUTER, DRIVE GEAR (18T)

23112-041-050

$32.74

18

GEAR, PRIMARY DRIVE (18T)

23120-041-000

Unavailable

19

NUT, LOCK (14MM) This part replaces 90231-087-000.

90231-087-010

$3.80

19

NUT, LOCK (14MM)

90231-087-010

$3.80

20

WASHER, LOCK (14MM)

90431-086-000

$3.03

21

WASHER B, LOCK

90432-086-000

$4.44

22

WASHER, STOPPER

90483-041-000

$1.92

23

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

24

ROLLER (8X10) (NOT AVAILABLE)

91102-041-007

Unavailable

24

ROLLER (8X10) (NOT AVAILABLE)

91102-041-153

Unavailable

25

SCREW, PAN (5X10)

93500-05010-0A

$1.49

26

SCREW, FLAT (5X10)

93600-05010-0A

$1.49

27

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
