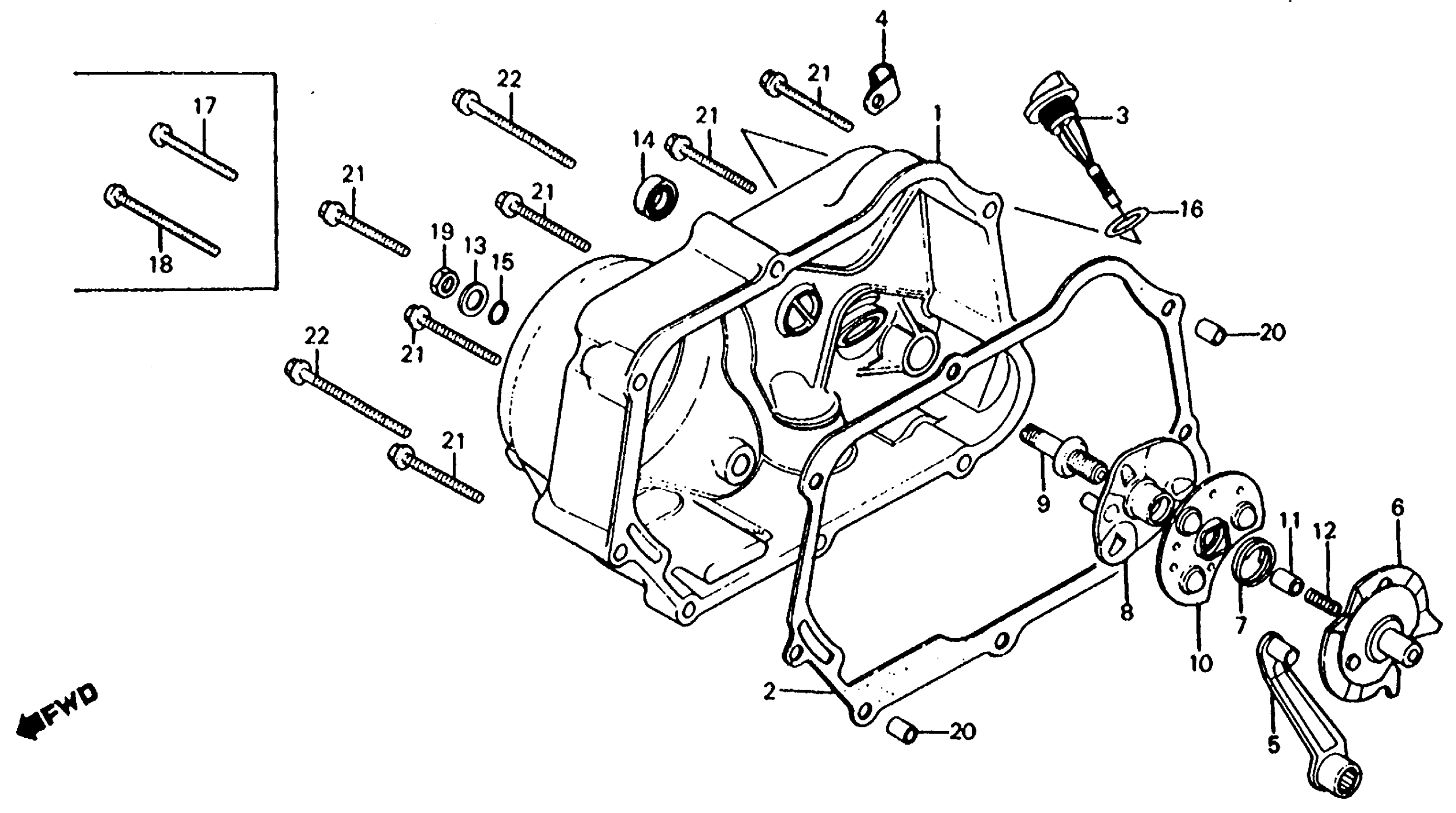

Honda Z50RA (85) MOTORCYCLE, JPN, VIN# JH2AB020-FS600001 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE This part replaces 11330-045-010.

11330-045-020

Unavailable

GASKET, R. CRANKCASE COVER This part replaces 11394-GW8-680.

11394-GW8-682

$12.45

GASKET, R. CRANKCASE COVER This part replaces 11394-035-010.

11394-GW8-682

$12.45

GASKET, R. CRANKCASE COVER This part replaces 11394-035-306.

11394-GW8-682

$12.45

DIPSTICK, OIL

15650-098-730

$7.43

LEVER, CLUTCH

22811-040-020

$29.88

PLATE, CLUTCH CAM This part replaces 22820-918-010.

22820-918-020

$16.19

PLATE, CLUTCH CAM

22820-918-020

$16.19

SPRING, CAM PLATE SIDE

22825-046-000

$2.01

PLATE, CLUTCH LIFTER

22830-041-000

$10.77

BOLT, CLUTCH ADJUSTING

22846-040-010

$6.01

RETAINER, CLUTCH BALL

22860-046-000

Unavailable

THROUGH, OIL This part replaces 25551-918-000.

25551-GEL-A80

$5.58

THROUGH, OIL This part replaces 25551-918-007.

25551-GEL-A80

$5.58

SPRING, OIL GUIDE

25555-065-000

$1.57

WASHER (8MM)

90485-040-000

$1.63

OIL SEAL (14X24X5)

91202-KFL-841

$4.81

OIL SEAL (14X24X5) This part replaces 91202-302-000.

91202-KFL-841

$4.81

OIL SEAL (14X24X5) This part replaces 91202-302-010.

91202-KFL-841

$4.81

OIL SEAL (14X24X5) This part replaces 91205-HB2-771.

91202-KFL-841

$4.81

OIL SEAL (14X24X5) This part replaces 91205-HB2-772.

91202-KFL-841

$4.81

OIL SEAL (14X24X5) This part replaces 91205-035-303.

91202-KFL-841

$4.81

O-RING (8X1.7) (ARAI) This part replaces 91303-001-000.

91306-HB3-003

$1.75

O-RING (8X1.7) (ARAI)

91306-HB3-003

$1.75

O-RING (18X3) (ARAI)

91307-KF0-003

$2.71

O-RING (18X3)

91307-035-000

$2.75

NUT, HEX. (8MM)

94030-08000

Unavailable

PIN A, DOWEL (8X12)

94301-08120

$2.80

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.75

BOLT, FLANGE (6X40)

96001-06040-00

$2.75

BOLT, FLANGE (6X65) This part replaces 96000-06065-00.

96001-06065-00

Unavailable

BOLT, FLANGE (6X65)

96001-06065-00

Unavailable
