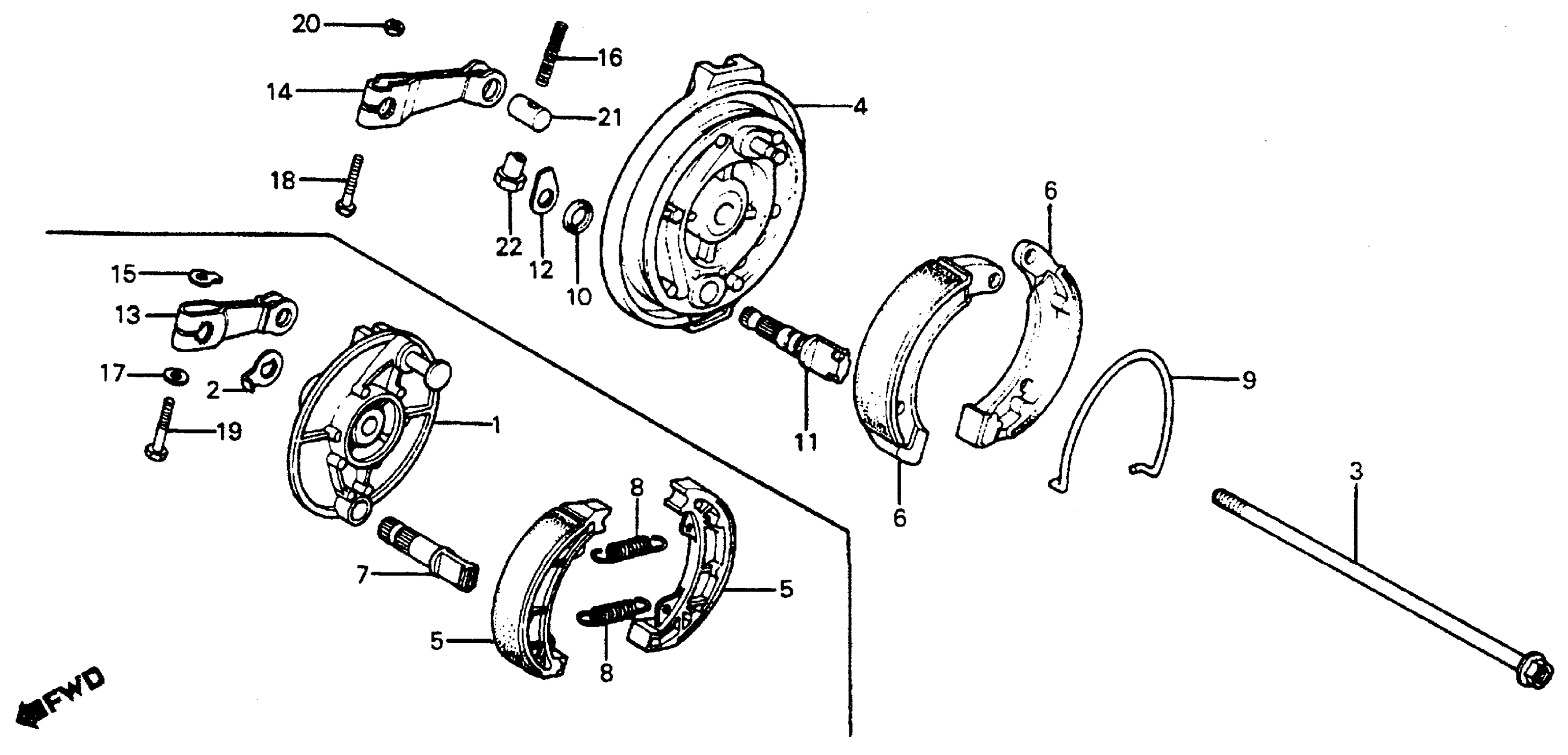

Honda Z50RA (85) MOTORCYCLE, JPN, VIN# JH2AB020-FS600001 FRONT BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (JB) | Use up to Frame SN 6112060 This part replaces 06450-GAG-003.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) | Use up to Frame SN 6112060 This part replaces 06450-001-405.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) | Use up to Frame SN 6112060

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) | Use up to Frame SN 6112060 This part replaces 451A0-001-670.

06450-178-932

$24.89

3

AXLE, FR. WHEEL

44301-045-010

Unavailable

4

PANEL, FR. BRAKE (NOT AVAILABLE)

45100-165-890

Unavailable

6

SHOE SET, BRAKE

06430-131-405

$15.33

6

SHOE, FR. BRAKE

43120-GZ9-003

Unavailable

6

SHOE, FR. BRAKE This part replaces 45120-GE8-003.

43120-GZ9-003

Unavailable

6

SHOE, FR. BRAKE This part replaces 45120-GE8-505.

43120-GZ9-003

Unavailable

6

SHOE, FR. BRAKE This part replaces 45120-147-672.

43120-GZ9-003

Unavailable

9

SPRING, BRAKE SHOE

45133-044-000

$2.31

10

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

11

CAM, FR. BRAKE This part replaces 45141-147-030.

45141-147-040

$11.25

11

CAM, FR. BRAKE

45141-147-040

$11.25

12

INDICATOR, BRAKE (NOT AVAILABLE)

45145-147-000

Unavailable

14

ARM, FR. BRAKE (NOT AVAILABLE)

45410-165-890

Unavailable

16

SPRING, FR. BRAKE ARM

45437-001-000

$3.50

18

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

18

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

18

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

20

NUT, HEX. (5MM)

94001-05000-0S

$2.74

21

JOINT A, BRAKE ARM

95015-31001

$1.53

22

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49
