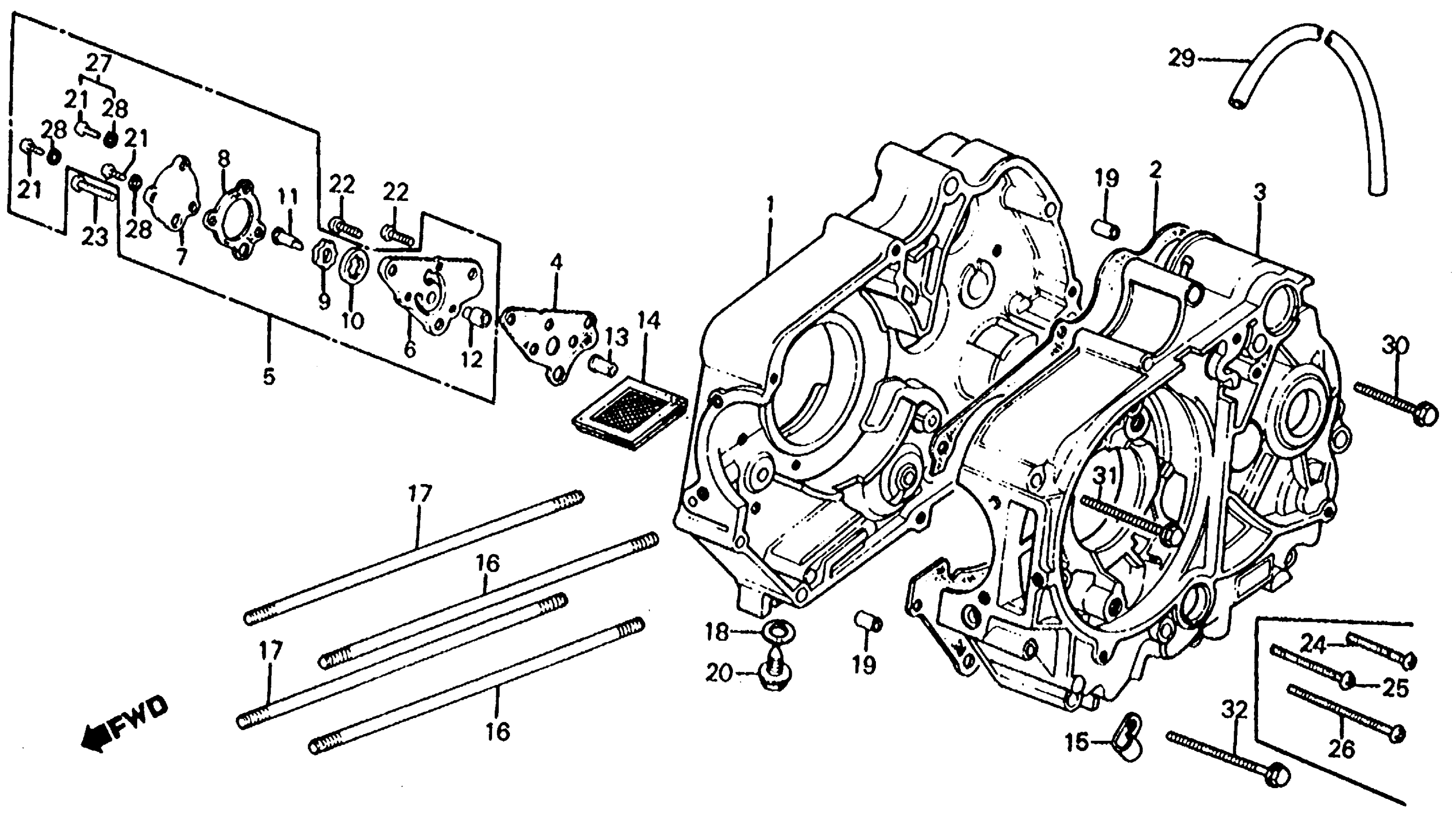

Honda Z50RA (85) MOTORCYCLE, JPN, VIN# JH2AB020-FS600001 CRANKCASE OIL PUMP Diagram

#

Description
Price

1

CRANKCASE, R.

11100-GB0-911

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-GB0-306.

11191-GB0-912

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-GB0-910.

11191-GB0-912

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-GB0-911.

11191-GB0-912

Unavailable

3

CRANKCASE, L. (NOT AVAILABLE)

11200-120-030

Unavailable

4

GASKET, OIL PUMP BODY

15119-178-000

$3.85

5

PUMP ASSY., OIL

15100-178-000

Unavailable

6

BODY, OIL PUMP (NOT AVAILABLE)

15311-178-000

Unavailable

7

COVER, OIL PUMP (NOT AVAILABLE)

15321-035-003

Unavailable

8

GASKET, OIL PUMP COVER

15329-035-003

$4.24

9

ROTOR, OIL PUMP (INNER)

15331-107-000

Unavailable

10

ROTOR, OIL PUMP (OUTER)

15332-107-000

Unavailable

11

DRIVESHAFT, OIL PUMP (NOT AVAILABLE)

15382-178-000

Unavailable

12

PIN, OIL PUMP KNOCK (NOT AVAILABLE)

15383-178-300

Unavailable

13

PIVOT, OIL PUMP

15384-178-000

$5.77

14

SCREEN, OIL FILTER

15421-035-010

$3.80

15

CLAMP, OVERFLOW PIPE

16236-045-010

$4.49

16

BOLT A, CYLINDER STUD

90031-035-010

$5.46

17

BOLT B, CYLINDER STUD

90032-035-000

$5.46

18

WASHER, DRAIN PLUG (12MM) This part replaces 90407-231-000.

94109-12000

$1.49

18

GASKET, DRAIN VALVE (12.5X20)

90407-259-000

$2.92

18

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

19

PIN A, DOWEL (10X14) This part replaces 90704-035-000.

94301-10140

$2.28

19

PIN A, DOWEL (10X14)

94301-10140

$2.28

20

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

22

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

22

SCREW, PAN (6X16)

93500-06016-0A

$1.49

23

SCREW, PAN (6X22) This part replaces 93500-06022.

93500-06022-0A

$1.49

23

SCREW, PAN (6X22)

93500-06022-0A

$1.49

27

SCREW-WASHER (5X10)

93892-05010-00

$1.49

29

BULK HOSE, VACUUM (5X3000) (5X320)

95005-50003-30M

$20.85

30

BOLT, FLANGE (6X50) This part replaces 96000-06050-00.

96001-06050-00

$2.16

30

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

31

BOLT, FLANGE (6X60) This part replaces 96000-06060-00.

96001-06060-00

$2.06

31

BOLT, FLANGE (6X60)

96001-06060-00

$2.06

32

BOLT, FLANGE (6X65) This part replaces 96000-06065-00.

96001-06065-00

$2.34

32

BOLT, FLANGE (6X65)

96001-06065-00

$2.34
