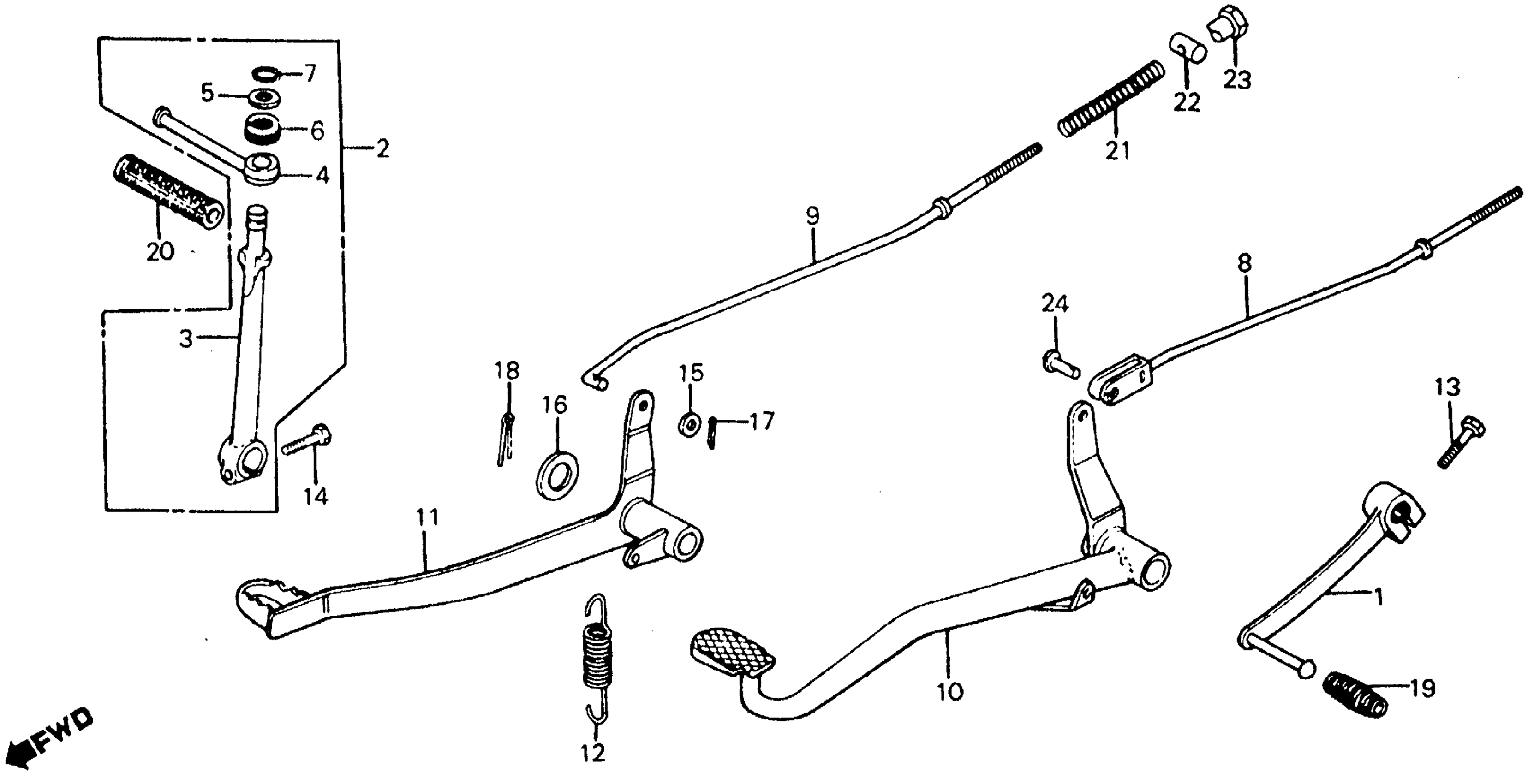

Honda Z50RA (85) MOTORCYCLE, JPN, VIN# JH2AB020-FS600001 BRAKE PEDAL + KICK STARTER ARM + GEARSHIFT PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24701-181-770

$39.02

2

ARM ASSY., KICK STARTER

28300-GW8-670

Unavailable

2

ARM ASSY., KICK STARTER This part replaces 28300-181-730.

28300-GW8-670

Unavailable

3

ARM, KICK STARTER

28301-181-730

Unavailable

4

PEDAL, KICK STARTER (NOT AVAILABLE)

28302-195-670

Unavailable

5

WASHER, KICK STARTER KNUCKLE

28303-001-000

$1.79

6

SPRING, KICK STARTER KNUCKLE

28322-001-000

$2.84

7

CLIP, KICK STARTER KNUCKLE

28324-001-000

$2.92

9

ROD, RR. BRAKE (NOT AVAILABLE)

43451-181-770

Unavailable

11

PEDAL, BRAKE (NOT AVAILABLE) This part replaces 46500-181-770.

46500-181-850

Unavailable

12

SPRING, BRAKE PEDAL This part replaces 46514-028-000.

46514-GW8-670

$4.33

13

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

13

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

14

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

14

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

14

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

15

WASHER, PLAIN (5MM)

94101-05000

$1.49

16

WASHER, FLAT (14MM)

94102-14000

$1.49

17

PIN, COTTER (2.0X15)

94201-20150

$1.49

18

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

18

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

18

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

18

PIN, COTTER (3.0X45)

94201-30450

$1.49

19

RUBBER, SHIFT PEDAL

95011-40000

$1.49

20

RUBBER A, KICK STARTER

95011-51000

$3.69

21

SPRING A, BRAKE ROD

95014-73100

$1.49

22

JOINT A, BRAKE ARM

95015-31001

$1.53

23

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49
