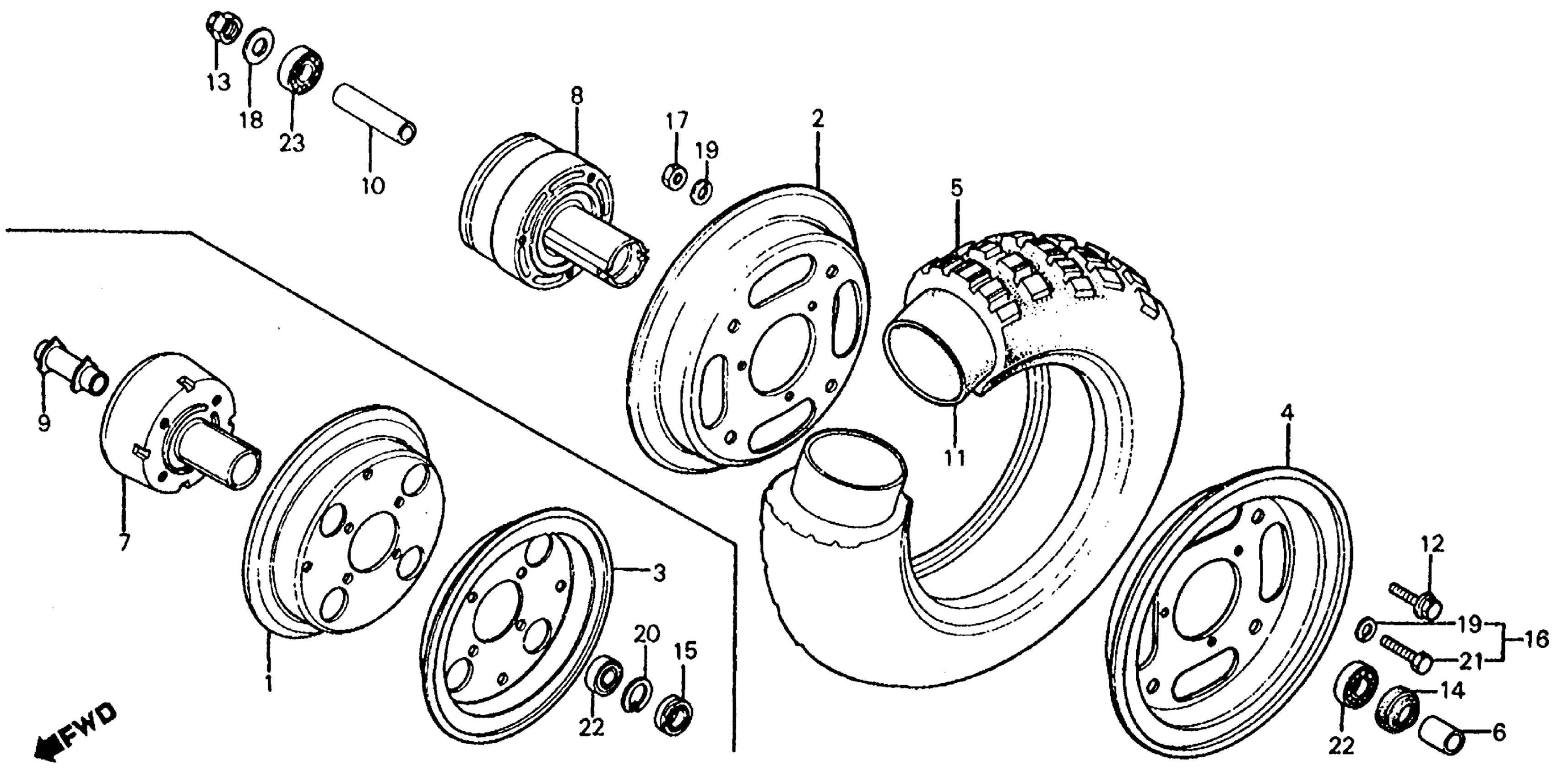

Honda Z50RA (84) MOTORCYCLE, JPN, VIN# JH2AB020-ES500001 TO JH2AB020-ES517905 FRONT WHEEL Diagram

#

Description
Price

2

RIM, R. WHEEL *NH35M* (CLOUD SILVER METALLIC) This part replaces 42701-165-890ZA.

42701-165-891ZC

Unavailable

2

RIM, R. WHEEL *NH35M* (CLOUD SILVER METALLIC)

42701-165-891ZC

Unavailable

4

RIM, L. WHEEL *NH35M* (CLOUD SILVER METALLIC) This part replaces 42702-165-890ZA.

42702-165-891ZC

Unavailable

4

RIM, L. WHEEL *NH35M* (CLOUD SILVER METALLIC)

42702-165-891ZC

Unavailable

5

TIRE (3.50-8) (2PR) (BS) This part replaces 42711-130-671.

44711-120-671

$60.44

5

TIRE, WHEEL (3.50-8) (NITTO) (NOT AVAILABLE)

42711-130-672

Unavailable

5

TIRE, WHEEL (3.50-8) (2PR/35J) (INOUE)

42711-181-003

Unavailable

5

TIRE (3.50-8) (2PR) (BS)

44711-120-671

$60.44

6

COLLAR, FR. WHEEL SIDE

44311-045-670

$5.08

8

HUB, FR. WHEEL (NOT AVAILABLE)

44601-165-890

Unavailable

10

COLLAR, FR. AXLE DISTANCE

44620-165-890

Unavailable

11

TUBE (300/350-8) (NOT AVAILABLE)

08400-12010

Unavailable

11

TUBE, TIRE (3.50-8) (BS) This part replaces 42712-GC3-003.

44712-120-003

Unavailable

11

TUBE, TIRE (3.00-8) (IRC)

42712-GC3-004

$26.73

11

TUBE, TIRE (3.00-8) (IRC) This part replaces 44712-045-670.

42712-GC3-004

$26.73

11

TUBE, TIRE (3.50-8) (BS)

44712-120-003

Unavailable

11

TUBE, TIRE (3.50-8) (BS) This part replaces 44712-120-006.

44712-120-003

Unavailable

11

TUBE, TIRE (3.00-8) (IRC) This part replaces 44712-120-154.

42712-GC3-004

$26.73

12

BOLT, WHEEL RIM

90194-567-010

$3.08

13

NUT, FLANGE (12MM)

90306-181-761

$6.08

14

OIL SEAL (21X35X7)

90752-035-003

$6.41

16

BOLT-WASHER (8X16)

93412-08016-00

Unavailable

16

BOLT-WASHER (8X16) This part replaces 93492-08016-00.

93412-08016-00

Unavailable

17

NUT, HEX. (8MM)

94030-08000

$1.49

18

WASHER, PLAIN (12MM)

94101-12000

$1.49

19

WASHER, SPRING (8MM)

94111-08000

$1.49

22

BEARING, RADIAL BALL (6201) This part replaces 96100-62010.

96100-62010-00

$8.08

22

BEARING, RADIAL BALL (6201)

96100-62010-00

$8.08

23

BEARING, RADIAL BALL (6201U) This part replaces 96140-62010.

96140-62010-00

$9.63

23

BEARING, RADIAL BALL (6201U)

96140-62010-00

$9.63
