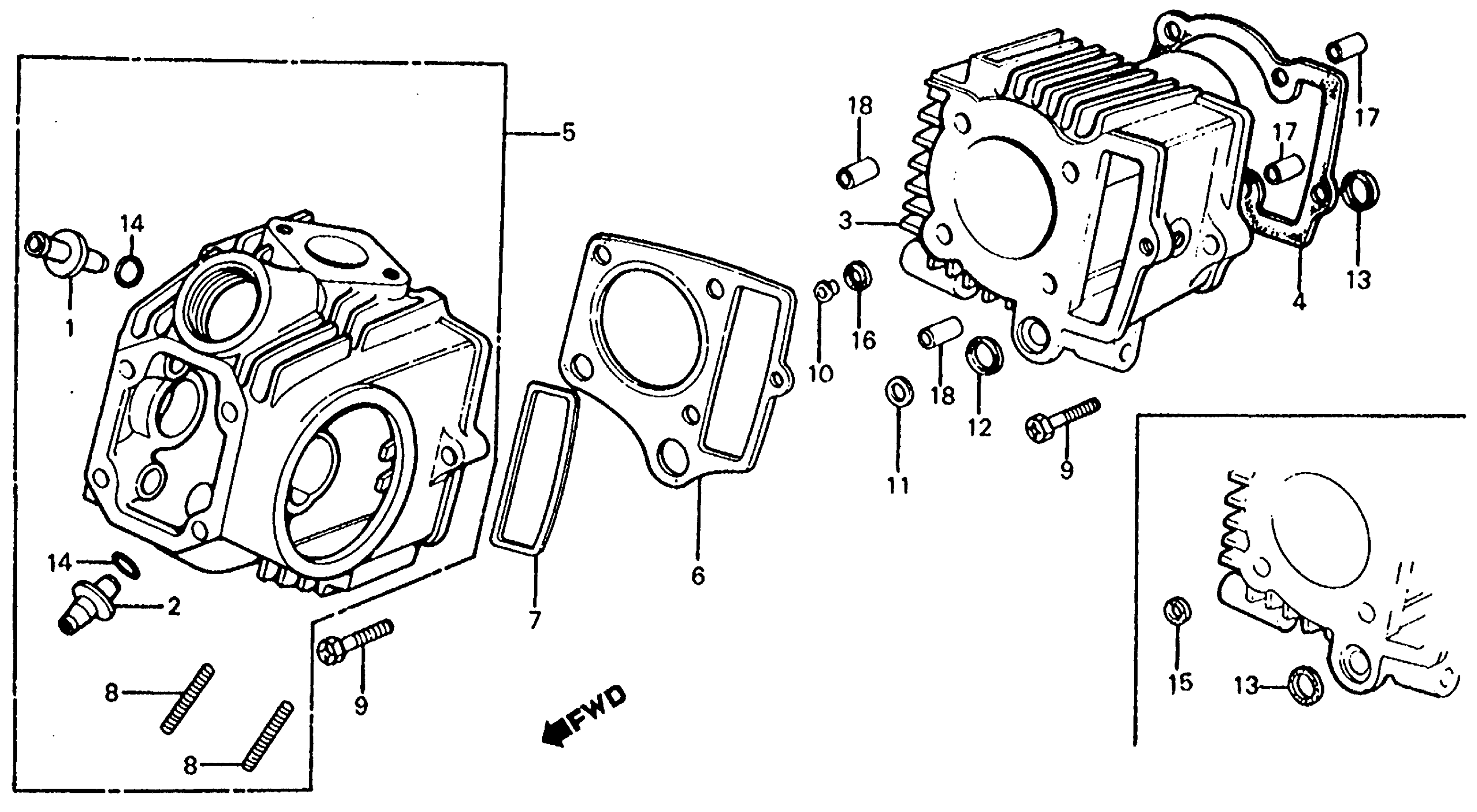

Honda Z50RA (84) MOTORCYCLE, JPN, VIN# JH2AB020-ES500001 TO JH2AB020-ES517905 CYLINDER CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE, IN./EX. VALVE

12021-128-405

$17.91

1

GUIDE, IN./EX. VALVE This part replaces 12023-051-405.

12021-128-405

$17.91

1

GUIDE, IN./EX. VALVE This part replaces 12231-178-305.

12021-128-405

$17.91

2

GUIDE, EX. VALVE

12023-051-320

Unavailable

3

CYLINDER

12101-GB2-000

$197.73

4

GASKET, CYLINDER This part replaces 12191-GB2-004.

12191-GW8-683

$8.88

4

GASKET, CYLINDER This part replaces 12191-GB2-306.

12191-GW8-683

$8.88

4

GASKET, CYLINDER This part replaces 12191-GW8-681.

12191-GW8-683

$8.88

5

CYLINDER HEAD (NOT AVAILABLE) This part replaces 12200-GB2-010.

12200-GB2-020

Unavailable

5

CYLINDER HEAD (NOT AVAILABLE)

12200-GB2-020

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-GB2-000.

12251-GB2-505

Unavailable

6

GASKET, CYLINDER HEAD

12251-GB2-505

Unavailable

7

SEAL, CAM CHAIN CHAMBER

12255-GB0-911

Unavailable

8

BOLT, STUD (6X32) This part replaces 90033-041-010.

90033-041-020

$2.25

8

BOLT, STUD (6X32)

90033-041-020

$2.25

9

BOLT (6MM)

90082-035-010

$2.39

10

COLLAR (9.5MM) This part replaces 90602-GB0-910.

90602-GB0-911

Unavailable

10

COLLAR (9.5MM)

90602-GB0-911

Unavailable

11

COLLAR (14.8MM) This part replaces 90603-GB0-910.

90603-GB0-911

$3.10

11

COLLAR (14.8MM)

90603-GB0-911

$3.10

12

O-RING (14.5MM) This part replaces 91301-GB0-911.

91301-GF6-003

$6.69

12

O-RING (14.5MM)

91301-GF6-003

$6.69

13

GASKET, RUBBER (16MM)

91303-035-000

$4.87

14

O-RING (9X1.6) (ARAI) This part replaces 91305-028-158.

91305-028-900

$2.92

14

O-RING (9X1.6)

91305-028-900

$2.92

16

GASKET, RUBBER (9MM)

91306-141-000

$4.65

17

PIN A, DOWEL (8X12)

94301-08120

$2.19

18

PIN A, DOWEL (8X14)

94301-08140

$2.25
