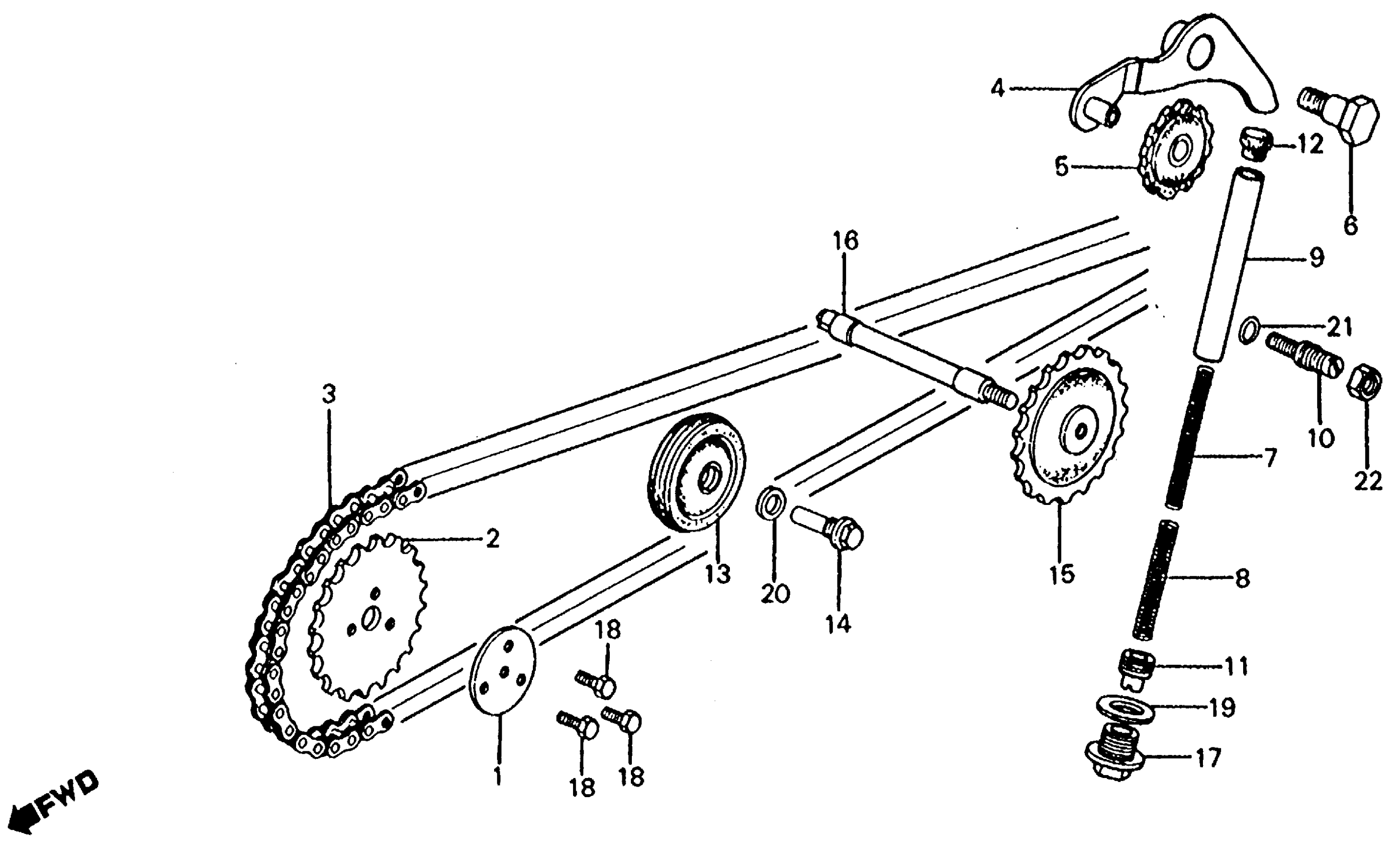

Honda Z50RA (83) MOTORCYCLE, JPN, VIN# JH2AB020-DS400012 TO JH2AB020-DS408789 CAM CHAIN TENSIONER Diagram

#

Description
Price

1

WASHER, CAMSHAFT

14105-957-000

Unavailable

2

SPROCKET, CAM (28T) This part replaces 14321-035-003.

14321-035-700

$17.46

2

SPROCKET, CAM (28T) This part replaces 14321-035-010.

14321-035-700

$17.46

2

SPROCKET, CAM (28T)

14321-035-700

$17.46

3

CHAIN, CAM (82L) (DAIDO) This part replaces 14401-035-003.

14401-115-010

$29.93

4

ARM, CAM CHAIN TENSIONER

14500-035-020

$28.03

5

ROLLER, CAM CHAIN TENSIONER

14502-086-000

$16.33

6

PIVOT, CAM CHAIN TENSIONER

14531-035-000

$3.87

7

SPRING A, CAM CHAIN TENSIONER

14541-086-010

Unavailable

8

SPRING B, CAM CHAIN TENSIONER

14542-086-000

$4.24

9

ROD, CAM CHAIN TENSIONER PUSH

14550-086-010

Unavailable

10

BOLT, CAM CHAIN TENSIONER ADJUSTING

14561-086-010

$10.41

11

BOLT B, CAM CHAIN TENSIONER ADJUSTING

14562-086-000

Unavailable

12

HEAD, CAM CHAIN TENSIONER PUSH ROD

14566-086-030

$2.33

13

ROLLER, CAM CHAIN GUIDE This part replaces 14610-086-000.

14610-086-010

$20.24

13

ROLLER, CAM CHAIN GUIDE This part replaces 14610-086-003.

14610-086-010

$20.24

14

PIN, CAM CHAIN GUIDE ROLLER This part replaces 14615-035-000.

14615-035-010

$2.84

14

PIN, CAM CHAIN GUIDE ROLLER

14615-035-010

$2.84

15

SPROCKET, CAM CHAIN GUIDE (25T) This part replaces 14670-035-030.

14670-GBJ-M30

$23.34

16

SPINDLE, CAM CHAIN GUIDE SPROCKET (NOT AVAILABLE)

14675-GB0-910

Unavailable

17

BOLT, SEALING (14MM)

90081-086-000

$5.44

18

BOLT, KNOCK (5MM)

90083-035-010

$2.07

19

WASHER, SEALING (14MM)

90441-035-000

$2.39

20

WASHER (8MM)

90481-035-000

$1.87

21

O-RING (5.5X1.5)

91301-216-000

$2.38

22

NUT, HEX. (8MM)

94002-08000-0S

$1.49
