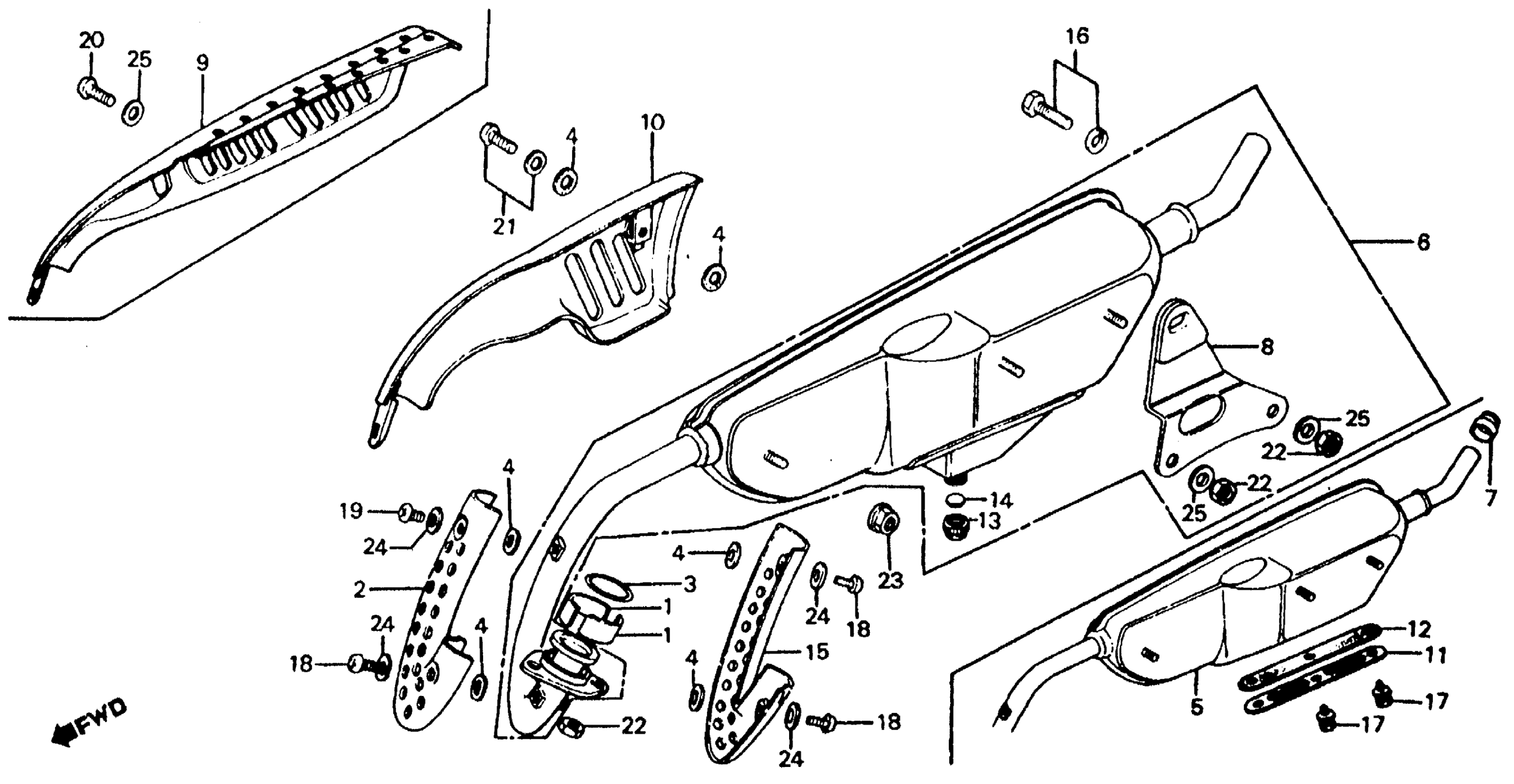

Honda Z50RA (82) MOTORCYCLE, JPN, VIN# JH2AB020-CS300002 TO JH2AB020-CS317543 MUFFLER Diagram

#

Description
Price

1

COLLAR, EX. PIPE JOINT

18233-051-000

$2.56

2

COVER A, EX. PIPE *NH106* (HEATPROOF BLACK) This part replaces 18240-165-000ZA.

18240-165-600ZA

$24.49

2

COVER A, EX. PIPE *NH106* (HEATPROOF BLACK) This part replaces 18240-165-000ZB.

18240-165-600ZA

$24.49

2

COVER A, EX. PIPE *NH106* (HEATPROOF BLACK)

18240-165-600ZA

$24.49

3

GASKET, EX. PIPE

18291-HB2-900

$3.72

3

GASKET, EX. PIPE This part replaces 18291-001-010.

18291-HB2-900

$3.72

3

GASKET, EX. PIPE This part replaces 18291-001-306.

18291-HB2-900

$3.72

4

GASKET, PROTECTOR

18292-167-890

$1.88

4

GASKET, PROTECTOR This part replaces 18292-290-000.

18292-167-890

$1.88

4

GASKET, PROTECTOR This part replaces 18292-329-000.

18292-167-890

$1.88

6

MUFFLER, EX. This part replaces 18300-181-773.

18300-181-860

Unavailable

6

MUFFLER, EX. This part replaces 18300-181-777.

18300-181-860

Unavailable

6

MUFFLER, EX. This part replaces 18300-181-681.

18300-181-860

Unavailable

6

MUFFLER, EX.

18300-181-860

Unavailable

8

STAY, MUFFLER HANGER *NH83L* (OFF BLACK) (NOT AVAILABLE)

18353-120-000CT

Unavailable

10

PROTECTOR, MUFFLER (NOT AVAILABLE)

18360-181-770

Unavailable

13

CAP, DRAIN (NOT AVAILABLE)

18375-181-770

Unavailable

14

PACKING.DRAIN This part replaces 18376-181-770.

18376-181-405

Unavailable

15

COVER B, EX. PIPE *NH105* (MAT BLACK) (NOT AVAILABLE) This part replaces 18450-181-000ZA.

18450-181-000ZB

Unavailable

16

BOLT-WASHER (8X20) This part replaces 93413-08020-00.

93403-08020-00

Unavailable

16

BOLT-WASHER (8X20) This part replaces 93483-08020-00.

93403-08020-00

Unavailable

18

SCREW, PAN (5X6)

93500-05006-0A

$1.49

19

SCREW, PAN (5X8)

93500-05008-0A

$1.49

21

SCREW-WASHER (6X12)

93891-06012-00

$1.49

22

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM)

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

23

NUT, FLANGE (6MM)

94050-06000

$1.49

24

WASHER, PLAIN (5MM)

94101-05000

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM)

94101-06800

$1.49
