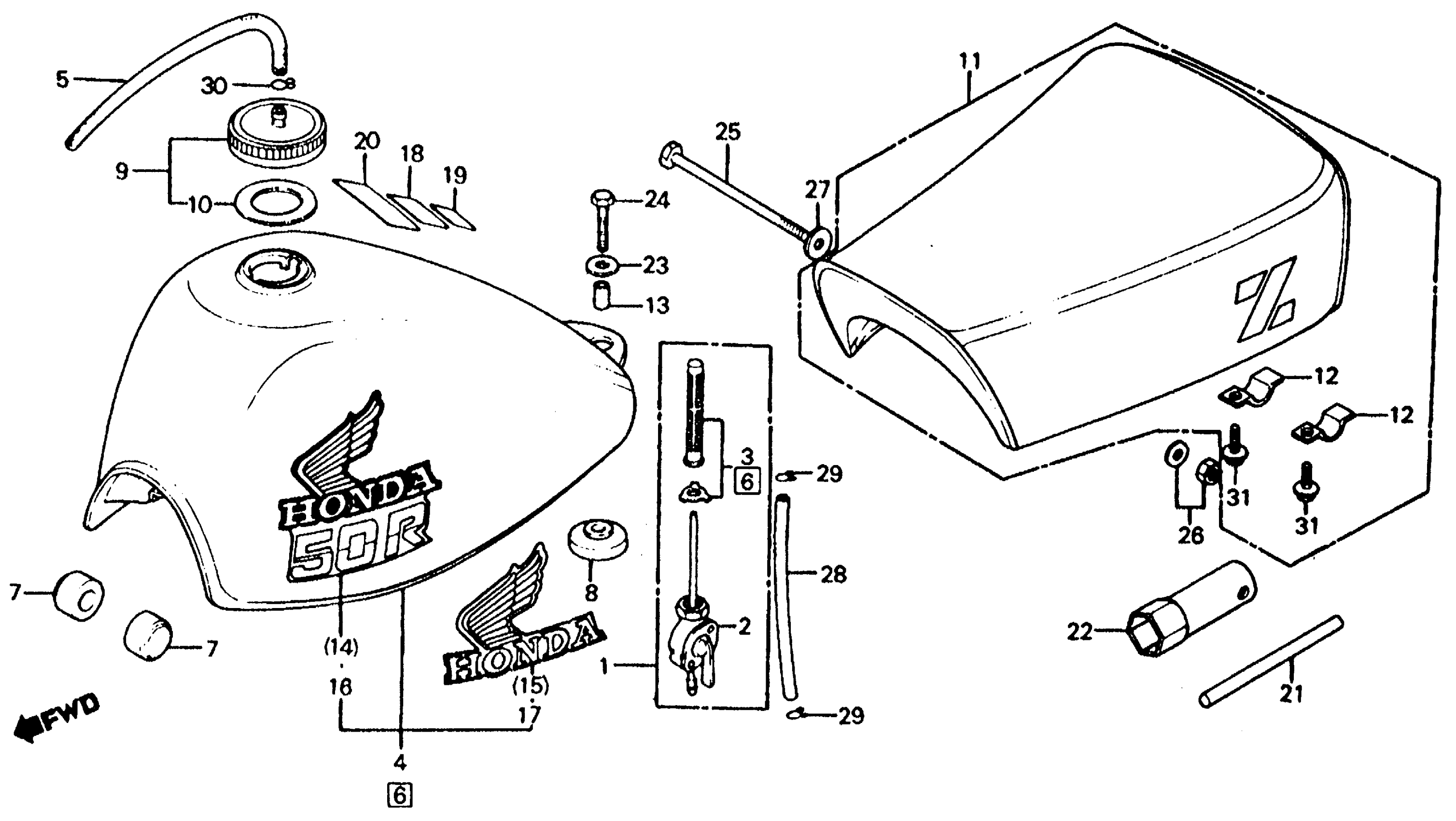

Honda Z50RA (82) MOTORCYCLE, JPN, VIN# JH2AB020-CS300002 TO JH2AB020-CS317543 FUEL TANK + SEAT Diagram

#

Description
Price

1

PETCOCK ASSY.

16950-GW8-670

$69.05

1

PETCOCK ASSY. This part replaces 16950-166-015.

16950-GW8-670

$69.05

1

PETCOCK ASSY. This part replaces 16950-166-025.

16950-GW8-670

$69.05

2

PETCOCK ASSY. This part replaces 16950-163-025.

16950-163-035

Unavailable

2

PETCOCK ASSY.

16950-163-035

Unavailable

2

PETCOCK ASSY. This part replaces 16951-163-015.

16950-163-035

Unavailable

3

SCREEN SET This part replaces 16952-166-015.

16952-166-305

Unavailable

6

TANK SET, FUEL *R120* (BLAZE RED) (NOT AVAILABLE)

175A1-181-730ZB

Unavailable

7

RUBBER, FR. FUEL TANK

17611-028-000

$4.07

8

RUBBER, FUEL TANK

17613-120-000

$5.19

9

CAP, FUEL FILLER This part replaces 17620-GA7-003.

17620-459-750

Unavailable

9

CAP, FUEL FILLER This part replaces 17620-GA7-013.

17620-459-750

Unavailable

9

CAP, FUEL FILLER This part replaces 17620-181-761.

17620-459-750

Unavailable

9

CAP, FUEL FILLER

17620-459-750

Unavailable

10

GASKET This part replaces 17631-096-700.

17631-096-702

$2.47

10

GASKET This part replaces 17631-096-701.

17631-096-702

$2.47

11

SEAT (NOT AVAILABLE)

77100-181-730

Unavailable

12

PLATE, PLUG WRENCH SETTING (NOT AVAILABLE)

77136-170-000

Unavailable

13

COLLAR B, RR. FENDER

80109-061-010

$3.15

15

EMBLEM A, R. FUEL TANK (A.M.)

87122-382-670

Unavailable

17

EMBLEM A, L. FUEL TANK (A.M.)

87123-382-670

Unavailable

18

LABEL, USE CAUTION *NH1* (BLACK) (NOT AVAILABLE)

87504-130-720ZA

Unavailable

19

LABEL, OPERATOR WARNING *NH1* (BLACK)

87510-147-670ZA

$2.92

20

MARK, DRIVE CAUTION (TYPEB) This part replaces 87560-181-760.

87560-181-760ZE

$3.95

20

LABEL, DRIVE CAUTION *NH1* (BLACK) (NOT AVAILABLE)

87560-181-760ZD

Unavailable

20

MARK, DRIVE CAUTION (TYPEB)

87560-181-760ZE

$3.95

21

BAR, PLUG WRENCH

89211-170-000

$2.47

22

WRENCH, SPARK PLUG

89216-130-690

$7.16

23

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$1.49

23

WASHER, PLAIN (6MM)

94103-06800

$1.49

24

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

24

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

25

BOLT, FLANGE (8X105) (NOT AVAILABLE)

90052-422-000

Unavailable

26

NUT-WASHER (8MM)

94070-08080

$1.49

28

BULK HOSE, FUEL (4.5X3000) (4.5X130)

95001-45003-60M

$36.67

29

CLIP, TUBE (B8)

95002-02080

$1.80

31

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

31

BOLT, FLANGE (6X10) This part replaces 95700-06010-10.

95701-06010-00

$1.49

31

BOLT, FLANGE (6X10)

95701-06010-00

$1.49
