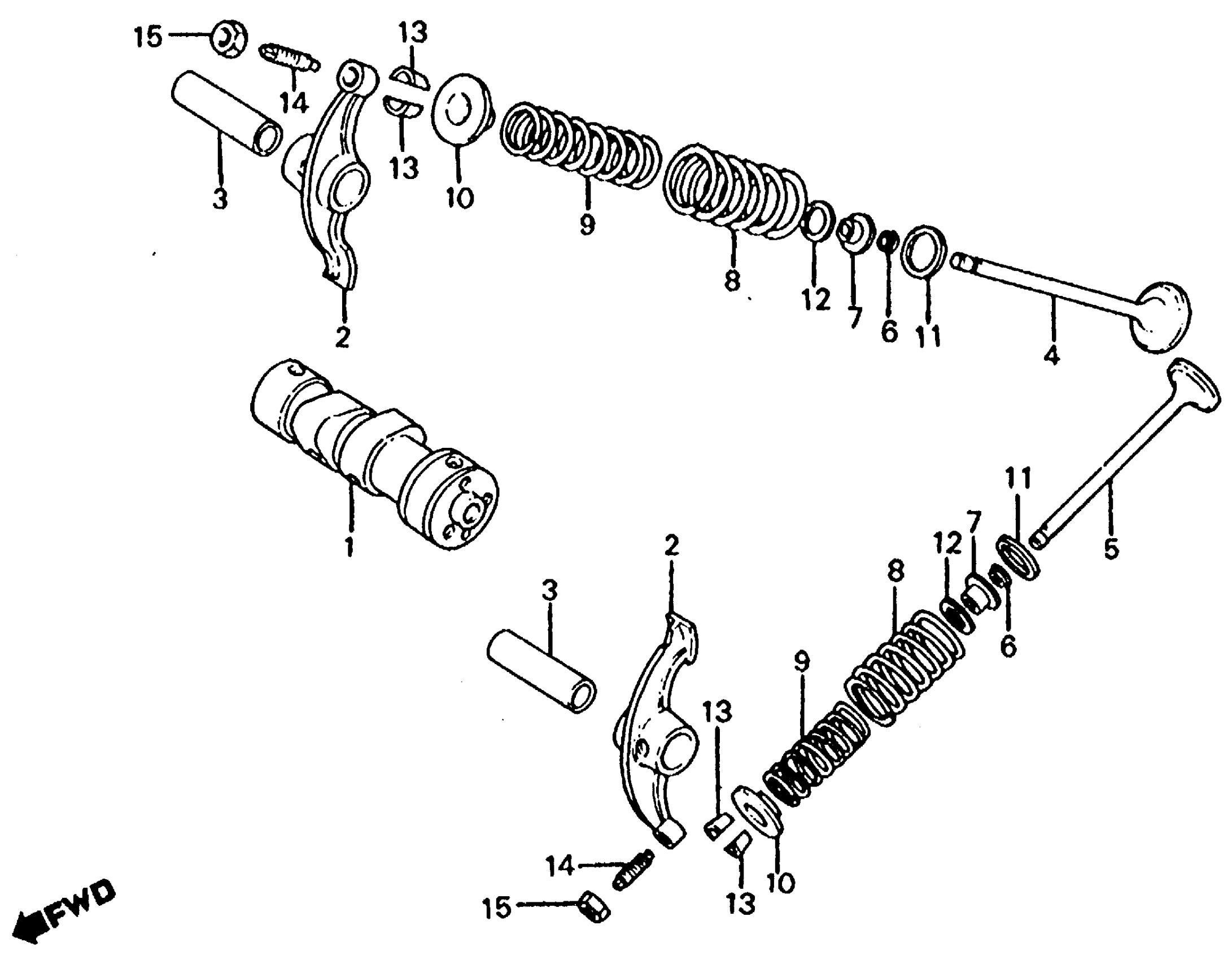

Honda Z50RA (82) MOTORCYCLE, JPN, VIN# JH2AB020-CS300002 TO JH2AB020-CS317543 CAMSHAFT VALVE Diagram

CAMSHAFT

14101-GB2-000

Unavailable

ARM, VALVE ROCKER This part replaces 14431-035-010.

14431-035-020

$38.09

ARM, VALVE ROCKER

14431-035-020

$38.09

SHAFT, VALVE ROCKER ARM

14451-035-000

$8.80

VALVE, IN.

14711-GB2-000

Unavailable

VALVE, EX.

14721-GB2-000

Unavailable

SEAL, VALVE STEM This part replaces 14730-GB0-911.

14730-GB0-912

$7.63

SEAL, VALVE STEM

14730-GB0-912

$7.63

CAP, VALVE STEM SEAL

14731-028-000

$4.35

SPRING, VALVE (OUTER)

14751-035-600

$4.85

SPRING, VALVE (INNER)

14761-035-000

$3.12

RETAINER, VALVE SPRING

14771-035-600

Unavailable

SEAT, VALVE SPRING (INNER)

14776-028-000

$4.37

COTTER, VALVE

14781-001-004

$4.95

COTTER, VALVE

14781-001-010

$5.66

SCREW, TAPPET ADJ.

90012-333-000

$2.75

NUT, TAPPET ADJ.

90206-001-000

$1.66
