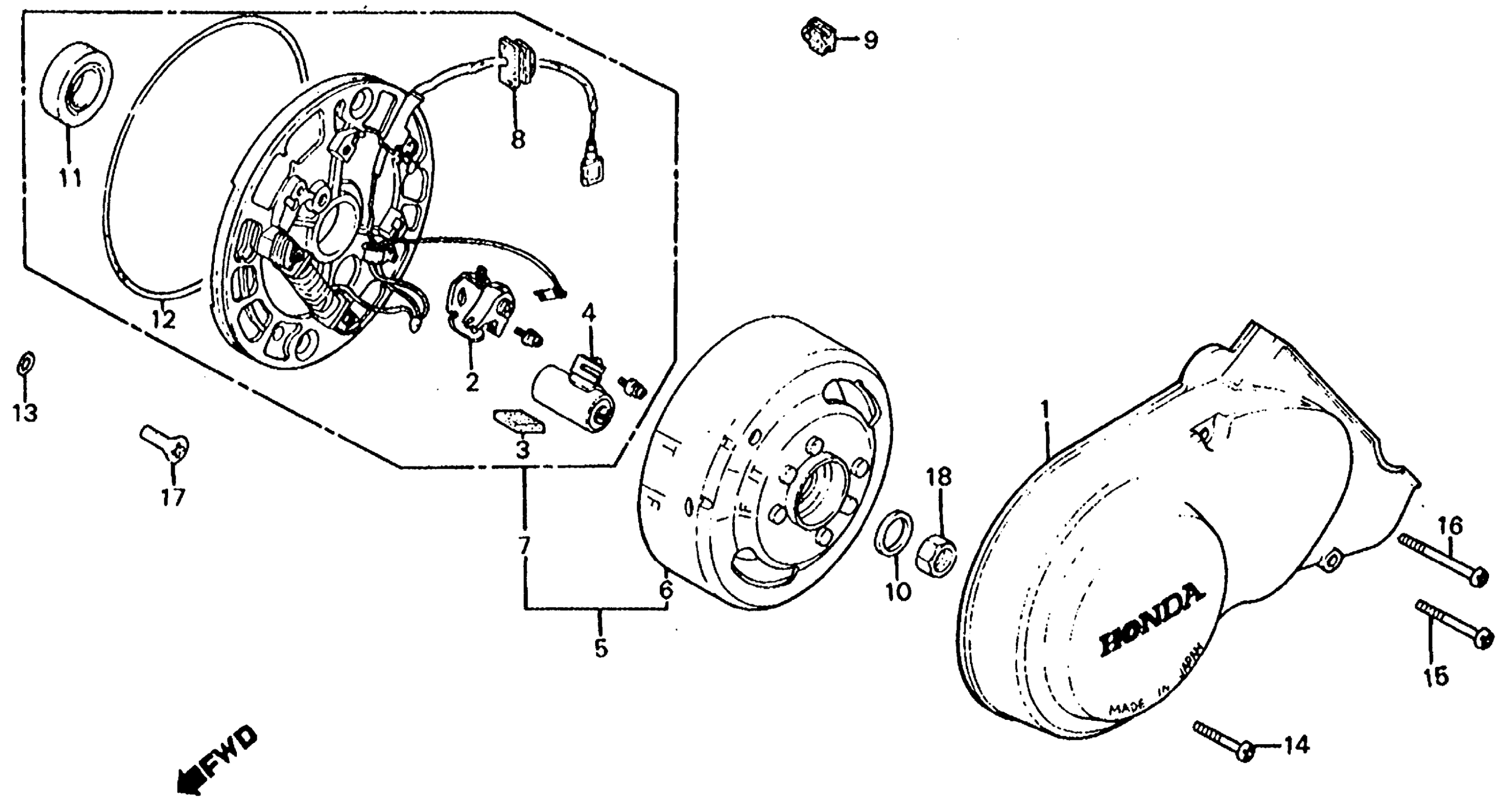

Honda Z50RA (82) MOTORCYCLE, JPN, VIN# JH2AB020-CS300002 TO JH2AB020-CS317543 ALTERNATOR LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, L. CRANKCASE This part replaces 11341-181-770.

11341-165-750

Unavailable

1

COVER, L. CRANKCASE

11341-165-750

Unavailable

1

COVER, L. CRANKCASE This part replaces 11341-181-771.

11341-165-750

Unavailable

2

POINTS (HITACHI)

30202-041-015

$29.26

3

FELT, OIL (HITACHI)

30205-041-005

$3.83

4

CONDENSER (HITACHI)

30250-041-005

$24.74

5

ALTERNATOR ASSY. (HITACHI) (NOT AVAILABLE) | Use up to Engine SN CS306031 This part replaces 31100-181-671.

31100-181-672

Unavailable

5

ALTERNATOR ASSY. (HITACHI) (NOT AVAILABLE)

31100-181-672

Unavailable

6

ROTOR (HITACHI)

31121-165-005

Unavailable

7

STATOR (NOT AVAILABLE) | Use up to Engine SN CS306031 This part replaces 31141-181-671.

31141-181-672

Unavailable

7

STATOR (NOT AVAILABLE)

31141-181-672

Unavailable

8

GROMMET, ALTERNATOR WIRE (NOT AVAILABLE)

32971-116-000

Unavailable

9

GROMMET, NEUTRAL SWITCH WIRE

32981-035-000

Unavailable

10

WASHER, MAGNET FIXING

90426-035-000

$2.57

11

OIL SEAL (18.9X30X5) This part replaces 91202-GB4-682.

91202-GK4-722

$6.14

11

OIL SEAL (18.9X30X5)

91202-GK4-722

$6.14

11

OIL SEAL (18.9X30X5) This part replaces 91202-035-003.

91202-GK4-722

$6.14

11

OIL SEAL (18.9X30X5) This part replaces 91202-035-005.

91202-GK4-722

$6.14

12

O-RING (107X2) (ARAI) This part replaces 91301-035-000.

91301-035-003

$7.05

12

O-RING (107X2)

91301-035-003

$7.05

13

O-RING (6X1.7)

91317-171-003

$2.92

14

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

14

SCREW, PAN (6X28)

93500-06028-0A

$1.49

15

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

15

SCREW, PAN (6X28)

93500-06028-0A

$1.49

16

SCREW, PAN (6X35)

93500-06035-0A

$1.49

16

SCREW, PAN (6X35) This part replaces 93500-06036.

93500-06035-0A

$1.49

17

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

17

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

18

NUT, HEX. (10MM)

94030-10000

$1.49
