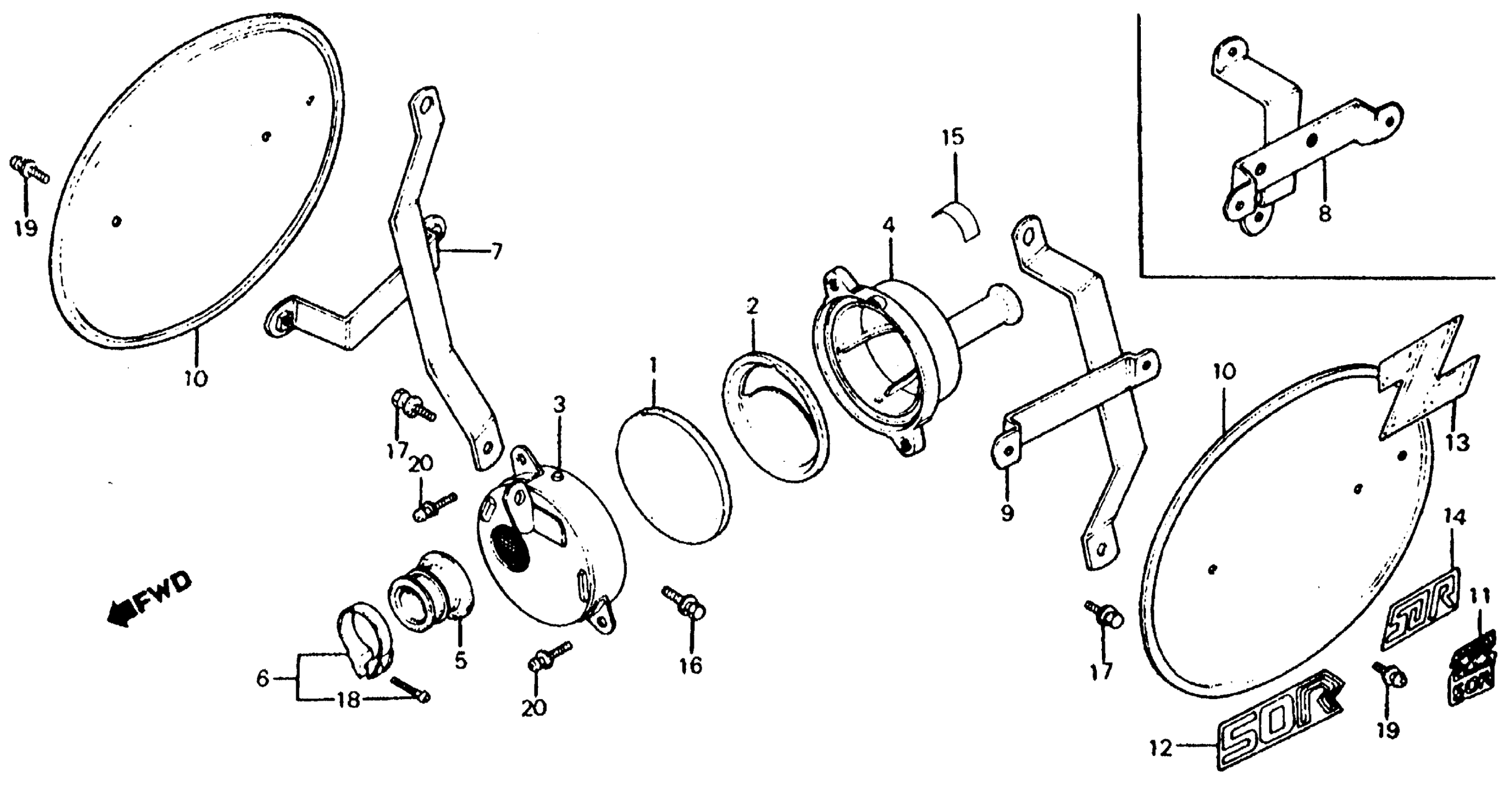

Honda Z50RA (79) MOTORCYCLE, JPN, VIN# AB02-5000009 TO AB02-5024801 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER | Use up to Frame SN 5002908

17211-120-000

$4.33

1

ELEMENT, AIR CLEANER | Use from Frame SN 5002909 to 5022291 This part replaces 17211-165-000.

17211-165-730

Unavailable

1

ELEMENT, AIR CLEANER | Use from Frame SN 5002909

17211-165-730

Unavailable

2

PLATE, AIR CLEANER BAFFLE | Use from Frame SN 5022292

17212-GW8-670

$8.25

2

PLATE, AIR CLEANER BAFFLE | Use from Frame SN 5022292 This part replaces 17212-165-730.

17212-GW8-670

$8.25

3

HOUSING, AIR CLEANER

17221-165-000

$37.94

4

COVER, AIR CLEANER

17231-GW8-770

$19.82

4

COVER, AIR CLEANER This part replaces 17231-165-010.

17231-GW8-770

$19.82

5

TUBE, AIR CLEANER

17253-GW8-670

$8.30

5

TUBE, AIR CLEANER This part replaces 17253-120-010.

17253-GW8-670

$8.30

6

BAND, INSULATOR

16223-GBF-830

$10.35

6

BAND, INSULATOR This part replaces 17255-098-000.

16223-GBF-830

$10.35

6

BAND, INSULATOR This part replaces 17256-367-690.

16223-GBF-830

$10.35

8

STAY, SIDE NUMBER PLATE (NOT AVAILABLE)

50189-181-000

Unavailable

10

PLATE, FR. NUMBER *R23* (TAHITIAN RED)

64113-116-690ZA

Unavailable

11

EMBLEM, SIDE NUMBER PLATE (NOT AVAILABLE)

87128-181-300

Unavailable

15

LABEL, AIR CLEANER CAUTION

87508-120-000

$4.90

16

BOLT-WASHER (6X12)

93401-06012-00

$1.48

16

BOLT-WASHER (6X12) This part replaces 93411-06012-00.

93401-06012-00

$1.48

16

BOLT-WASHER (6X12) This part replaces 93481-06012-00.

93401-06012-00

$1.48

17

BOLT-WASHER (6X12)

93402-06012-00

$1.61

17

BOLT-WASHER (6X12) This part replaces 93412-06012-00.

93402-06012-00

$1.61

17

BOLT-WASHER (6X12) This part replaces 93482-06012-00.

93402-06012-00

$1.61

18

SCREW, PAN (4X25)

93500-04025-0A

$1.71

19

SCREW-WASHER (5X12)

93891-05012-00

$1.04

20

SCREW-WASHER (5X12)

93892-05012-07

$0.65
