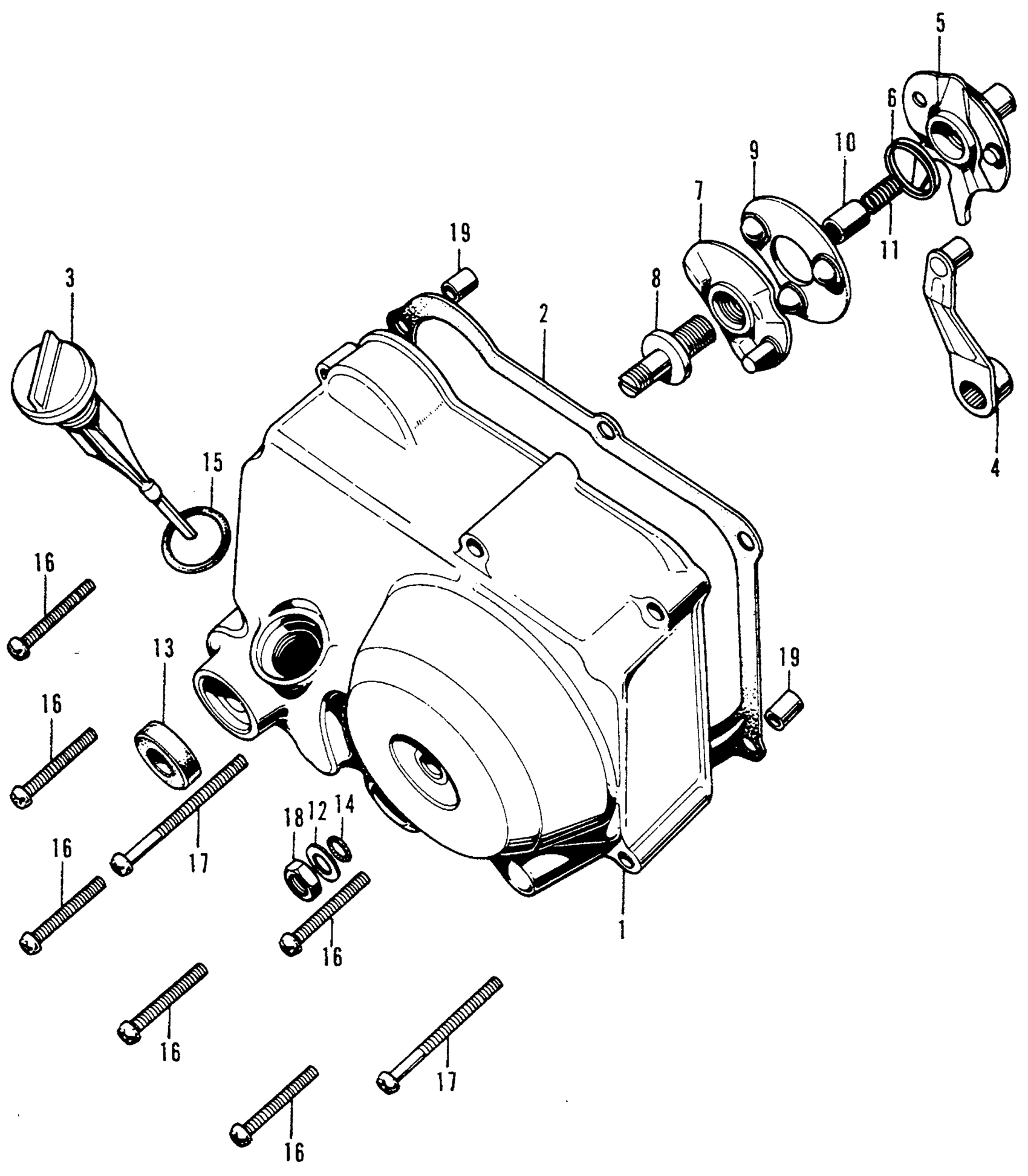

Honda Z50AK5A MOTORCYCLE, JPN, VIN# Z50A-5000001 TO Z50A-5033245 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE This part replaces 11330-045-010.

11330-045-020

Unavailable

2

GASKET, R. CRANKCASE COVER This part replaces 11394-GW8-680.

11394-GW8-682

$13.57

2

GASKET, R. CRANKCASE COVER This part replaces 11394-035-010.

11394-GW8-682

$13.57

2

GASKET, R. CRANKCASE COVER This part replaces 11394-035-306.

11394-GW8-682

$13.57

3

DIPSTICK, OIL

15650-098-730

$7.78

4

LEVER, CLUTCH

22811-040-020

$32.34

5

PLATE, CLUTCH CAM This part replaces 22820-918-000.

22820-918-020

$20.42

5

PLATE, CLUTCH CAM This part replaces 22820-918-010.

22820-918-020

$20.42

5

PLATE, CLUTCH CAM

22820-918-020

$20.42

6

SPRING, CAM PLATE SIDE

22825-046-000

$2.08

7

PLATE, CLUTCH LIFTER

22830-041-000

$11.73

8

BOLT, CLUTCH ADJUSTING

22846-040-010

$6.30

9

RETAINER, CLUTCH BALL This part replaces 22860-041-000.

22860-046-000

$7.04

9

RETAINER, CLUTCH BALL

22860-046-000

$7.04

10

THROUGH, OIL This part replaces 25551-918-000.

25551-GEL-A80

$6.02

10

THROUGH, OIL This part replaces 25551-918-007.

25551-GEL-A80

$6.02

11

SPRING, OIL GUIDE

25555-065-000

$1.63

12

WASHER (8MM)

90485-040-000

$1.77

13

OIL SEAL (14X24X5)

91202-KFL-841

$5.04

13

OIL SEAL (14X24X5) This part replaces 91202-216-000.

91202-KFL-841

$5.04

13

OIL SEAL (14X24X5) This part replaces 91202-216-003.

91202-KFL-841

$5.04

13

OIL SEAL (14X24X5) This part replaces 91202-302-000.

91202-KFL-841

$5.04

13

OIL SEAL (14X24X5) This part replaces 91202-302-010.

91202-KFL-841

$5.04

13

OIL SEAL (14X24X5) This part replaces 91205-HB2-771.

91202-KFL-841

$5.04

13

OIL SEAL (14X24X5) This part replaces 91205-HB2-772.

91202-KFL-841

$5.04

13

OIL SEAL (14X24X5) This part replaces 91205-035-303.

91202-KFL-841

$5.04

14

O-RING (8X1.7) (ARAI) This part replaces 91303-001-000.

91306-HB3-003

$1.81

14

O-RING (8X1.7) (ARAI)

91306-HB3-003

$1.81

15

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

15

O-RING (18X3)

91307-035-000

$2.92

16

SCREW, PAN (6X40) This part replaces 93500-06038.

93500-06040-0A

$1.49

16

SCREW, PAN (6X40) This part replaces 93500-06038-0A.

93500-06040-0A

$1.49

16

SCREW, PAN (6X40)

93500-06040-0A

$1.49

17

SCREW, PAN (6X65) This part replaces 93500-06065.

93500-06065-0A

$1.53

17

SCREW, PAN (6X65)

93500-06065-0A

$1.53

18

NUT, HEX. (8MM)

94030-08000

$1.49

19

PIN A, DOWEL (8X12)

94301-08120

$2.19
