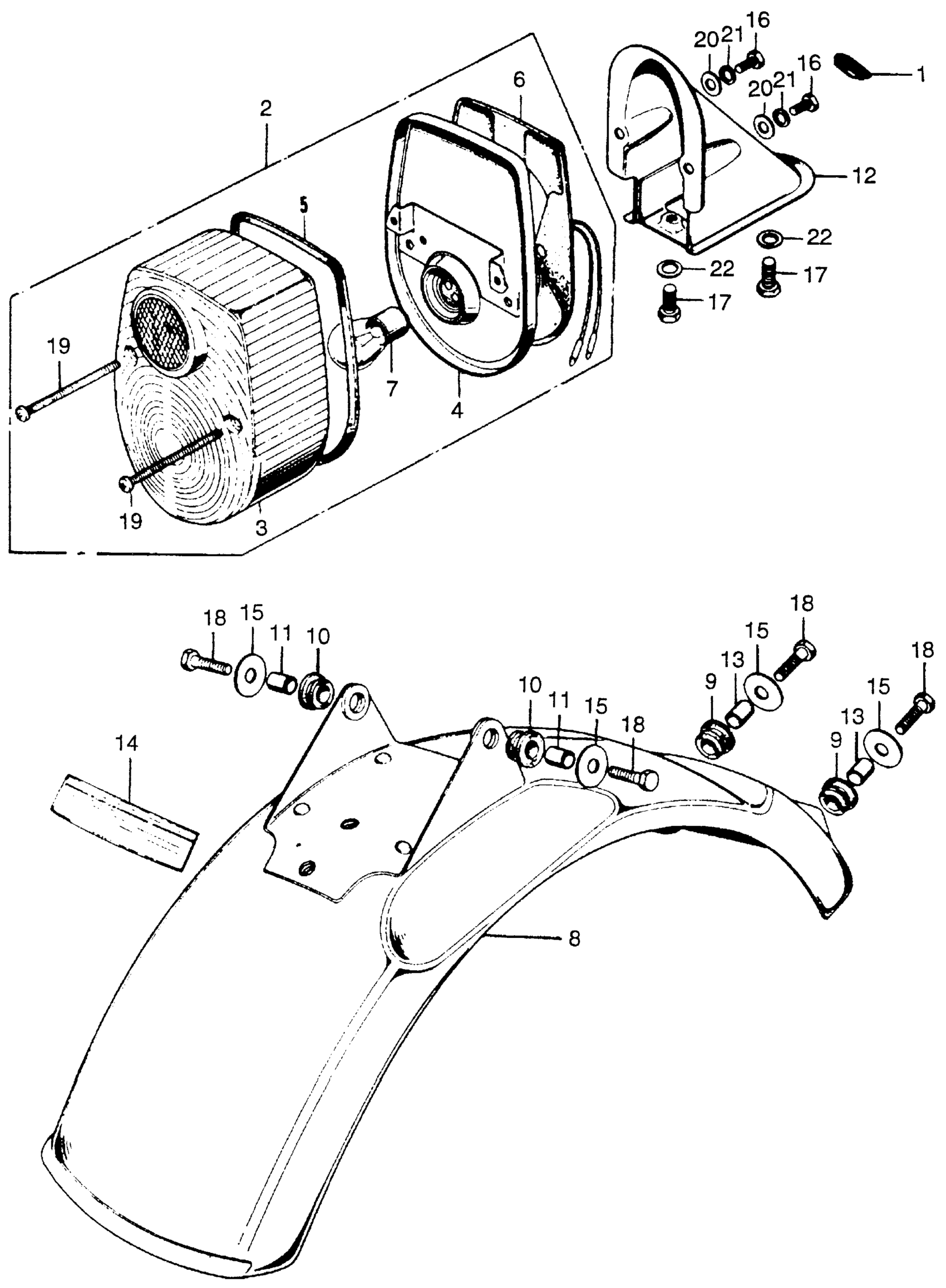

Honda Z50AK4A MOTORCYCLE, JPN, VIN# Z50A-3000001 TAILLIGHT + REAR FENDER Diagram

#

Description
Price

1

GROMMET, THROTTLE CABLE

17911-023-000

$4.12

2

TAILLIGHT UNIT (NOT AVAILABLE)

33701-120-000

Unavailable

3

LENS, TAILLIGHT

33702-045-690

$18.62

4

BASE, TAILLIGHT (NOT AVAILABLE)

33703-074-671

Unavailable

5

GASKET, TAILLIGHT LENS

33709-074-671

$2.08

6

GASKET, TAILLIGHT BASE

33719-074-670

Unavailable

7

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34906-041-671.

34906-202-670

$11.50

7

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY)

34906-202-670

$11.50

7

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34906-205-222.

34906-202-670

$11.50

7

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34911-001-810.

34906-202-670

$11.50

8

FENDER, RR. *MRCR2* (CHROME PLATING) This part replaces 80100-120-000XW.

80100-130-690XW

$138.43

8

FENDER, RR. *MRCR2* (CHROME PLATING)

80100-130-690XW

$138.43

9

RUBBER, RR. FENDER CUSHION

80101-310-000

$1.94

10

RUBBER A, RR. FENDER

80105-061-000

$4.01

11

COLLAR A, RR. FENDER This part replaces 80108-061-000.

80108-061-010

$4.12

11

COLLAR A, RR. FENDER

80108-061-010

$4.12

12

BRACKET, NUMBER PLATE *NH1* (BLACK) (NOT AVAILABLE)

84701-120-670B

Unavailable

13

COLLAR, RR. FENDER

84705-310-000

$1.72

15

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$1.49

15

WASHER, PLAIN (6MM)

94103-06800

$1.49

16

BOLT, HEX. (5X12) This part replaces 92000-05012-0B.

92101-05012-0B

$1.49

16

BOLT, HEX. (5X12)

92101-05012-0B

$1.49

17

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

18

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

18

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

19

SCREW, PAN (4X50)

93500-04050-0B

$1.49

20

WASHER, PLAIN (5MM)

94101-05000

$1.49

21

WASHER, SPRING (5MM)

94111-05000

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

22

WASHER, PLAIN (6MM)

94101-06800

$1.49
