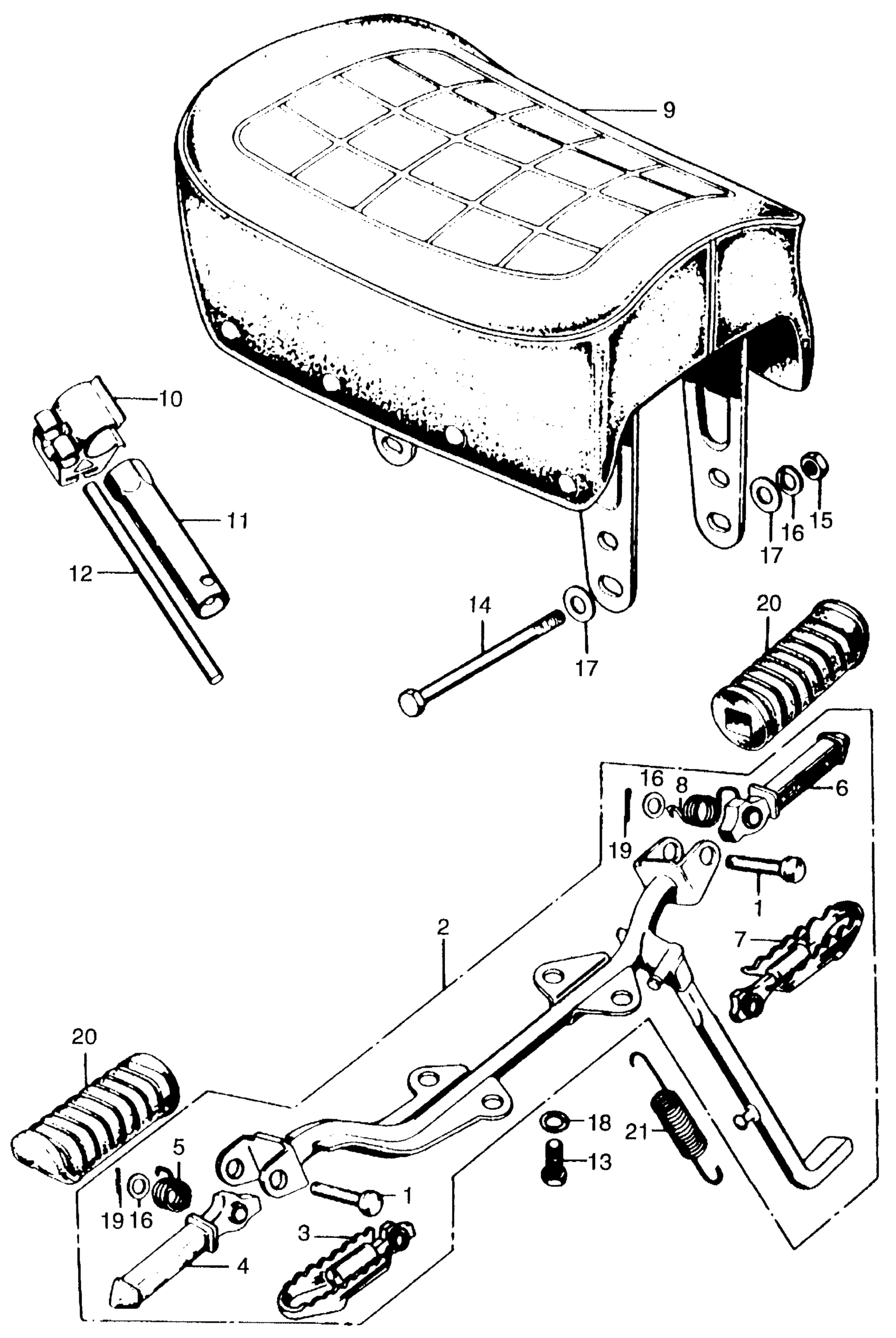

Honda Z50AK4A MOTORCYCLE, JPN, VIN# Z50A-3000001 SEAT + STEP BAR Diagram

#

Description
Price

1

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

1

PIN, STEP BAR JOINT

50603-033-010

$3.30

2

BAR, STEP (NOT AVAILABLE)

50610-130-670

Unavailable

4

ARM, R. STEP

50616-130-670

Unavailable

5

SPRING, R. STEP RETURN

50617-MM9-000

$4.53

5

SPRING, R. STEP RETURN This part replaces 50617-329-000.

50617-MM9-000

$4.53

7

STEP, L. (NOT AVAILABLE)

50642-130-670

Unavailable

8

SPRING, L. STEP RETURN

50644-MM9-000

$4.53

8

SPRING, L. STEP RETURN This part replaces 50644-329-000.

50644-MM9-000

$4.53

9

SEAT ASSY. *NH1L* (BLACK)

77100-130-000A

Unavailable

9

SEAT ASSY. *NH1L* (BLACK) This part replaces 77100-130-670A.

77100-130-000A

Unavailable

10

HOLDER, TOOL (NOT AVAILABLE)

83520-120-000

Unavailable

11

WRENCH, SPARK PLUG This part replaces 89216-045-000.

89216-045-010

$6.26

11

WRENCH, SPARK PLUG

89216-045-010

$6.26

11

WRENCH, SPARK PLUG This part replaces 89216-045-670.

89216-045-010

$6.26

12

BAR, HANDLE

89217-045-670

$4.94

13

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

$1.62

13

BOLT, HEX. (8X20)

92101-08020-0A

$1.62

14

This part replaces 92000-08100-0A.

92101-08100-0A

Unavailable

14

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

14

WASHER, PLAIN (6MM)

94101-06800

$1.49

15

NUT, HEX. (8MM)

94001-08000-0S

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

16

WASHER, PLAIN (6MM)

94101-06800

$1.49

17

WASHER, PLAIN (8MM)

94101-08000

$1.49

18

WASHER, SPRING (8MM)

94111-08000

$1.49

19

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

19

PIN, COTTER (1.6X25)

94201-16250

$1.49

20

RUBBER, STEP

50661-312-000

$16.08

20

RUBBER, STEP | Use up to Frame SN 1019611

50661-331-770

$16.37

20

RUBBER, STEP | Use up to Frame SN 1019611 This part replaces 95011-24000.

50661-331-770

$16.37

21

SPRING A, SIDE STAND This part replaces 95014-72100.

95014-72102

$2.84

21

SPRING A, SIDE STAND This part replaces 95014-72101.

95014-72102

$2.84

21

SPRING A, SIDE STAND

95014-72102

$2.84
