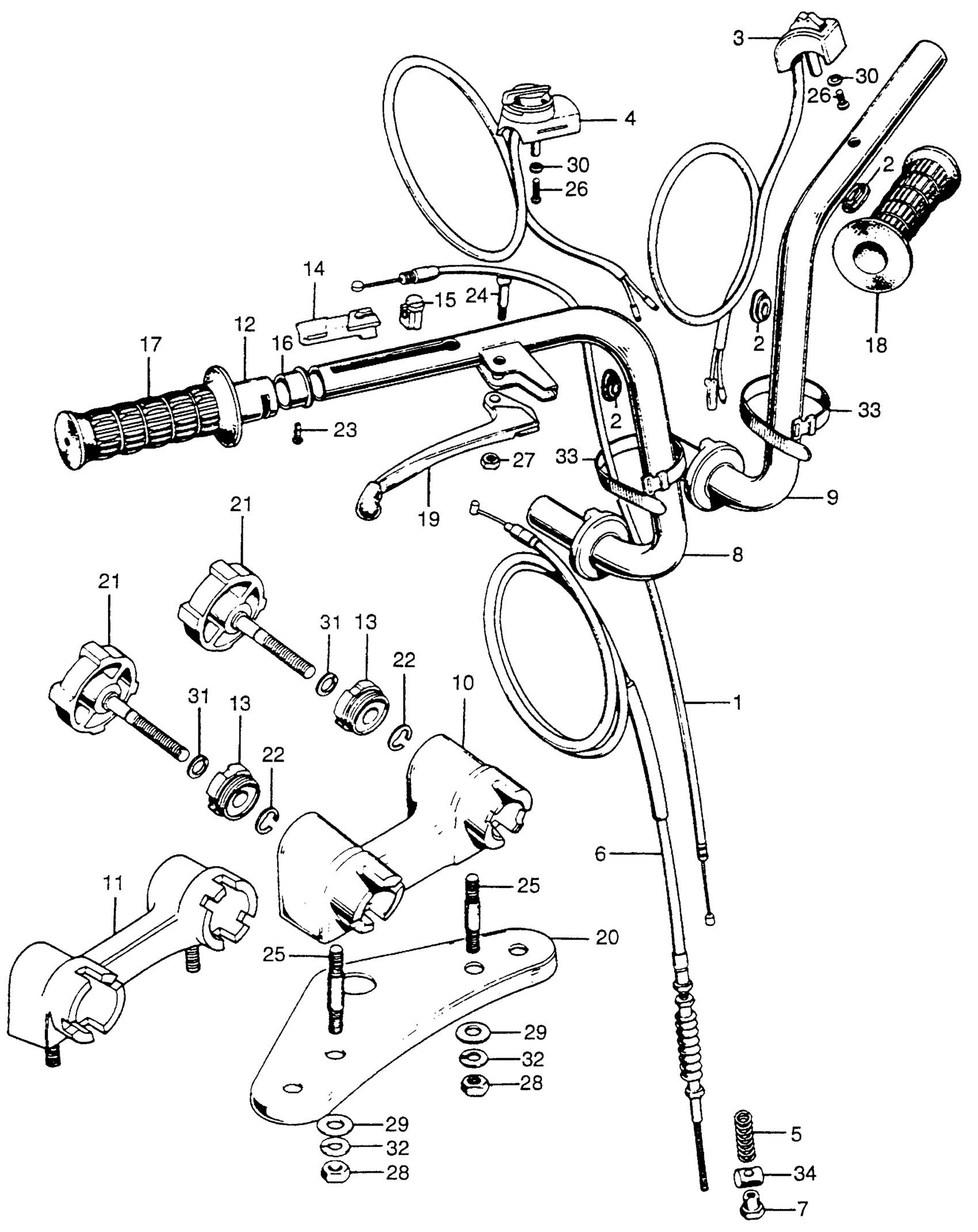

Honda Z50AK4A MOTORCYCLE, JPN, VIN# Z50A-3000001 HANDLEBAR Diagram

#

Description
Price

1

CABLE, THROTTLE This part replaces 17910-120-000.

17910-130-690

Unavailable

1

CABLE, THROTTLE

17910-130-690

Unavailable

2

GROMMET, THROTTLE CABLE

17911-023-000

$4.12

3

SWITCH ASSY., LIGHTING (NOT AVAILABLE) This part replaces 35250-120-671.

35250-130-720

Unavailable

3

SWITCH ASSY., LIGHTING (NOT AVAILABLE)

35250-130-720

Unavailable

4

SWITCH ASSY., STOP (NOT AVAILABLE)

35300-120-673

Unavailable

5

SPRING, FR. BRAKE ARM

45437-001-000

$3.50

6

CABLE, FR. BRAKE This part replaces 45450-120-000.

45450-130-640

Unavailable

6

CABLE, FR. BRAKE This part replaces 45450-130-000.

45450-130-640

Unavailable

6

CABLE, FR. BRAKE

45450-130-640

Unavailable

7

NUT A, BRAKE ROD ADJUSTING | Use up to Frame SN 1019611 This part replaces 45462-001-000.

95015-41000

$1.49

7

NUT A, BRAKE ROD ADJUSTING | Use up to Frame SN 1019611 This part replaces 45462-028-000.

95015-41000

$1.49

7

NUT A, BRAKE ROD ADJUSTING | Use up to Frame SN 1019611

95015-41000

$1.49

7

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

8

HANDLEBAR, R. This part replaces 53110-120-000.

53110-130-690

Unavailable

8

HANDLEBAR, R.

53110-130-690

Unavailable

9

HANDLEBAR, L. This part replaces 53120-120-000.

53120-130-690

Unavailable

9

HANDLEBAR, L.

53120-130-690

Unavailable

12

PIPE, THROTTLE GRIP

53141-098-000

$17.71

13

NUT, HANDLE HOLDER

53143-045-000

Unavailable

14

HINGE, THROTTLE CABLE

53161-044-000

$8.88

15

HOLDER, THROTTLE CABLE (OUTER)

53162-098-010

$6.30

16

STOPPER, THROTTLE GRIP

53163-044-000

$4.95

17

GRIP, R. HANDLEBAR

53165-120-000

$16.86

18

GRIP, L. HANDLEBAR

53166-120-000

$16.86

19

LEVER, R. HANDLEBAR

53175-045-670

Unavailable

20

BRIDGE, FORK TOP *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE)

53230-120-000S

Unavailable

21

KNOB, HANDLE HOLDER

53741-120-000

Unavailable

22

RING, KNOB STOPPER

53746-045-010

Unavailable

23

SCREW, THROTTLE GRIP MOUNT This part replaces 90101-063-000.

90101-063-505

$5.04

23

SCREW, THROTTLE GRIP MOUNT

90101-063-505

$5.04

24

SCREW, L. HANDLEBAR LEVER PIVOT This part replaces 90114-063-000.

90116-GF8-000

$3.58

24

SCREW, L. HANDLEBAR LEVER PIVOT

90116-GF8-000

$3.58

26

SCREW, PAN (3X12)

93500-03012-0A

$1.49

27

NUT, HEX. (5MM)

94001-05000-0S

$2.74

28

NUT, HEX. (10MM)

94001-10000-0S

$1.49

29

WASHER, PLAIN (10MM)

94101-10000

$1.49

30

WASHER, SPRING (3MM)

94111-03000

$1.49

31

WASHER, SPRING (8MM)

94111-08000

$1.49

32

WASHER, SPRING (8MM)

94111-10000

$1.49

33

BAND B3, CABLE HARNESS

95014-62300

$2.25

34

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.53

34

JOINT A, BRAKE ARM

95015-31001

$1.53
