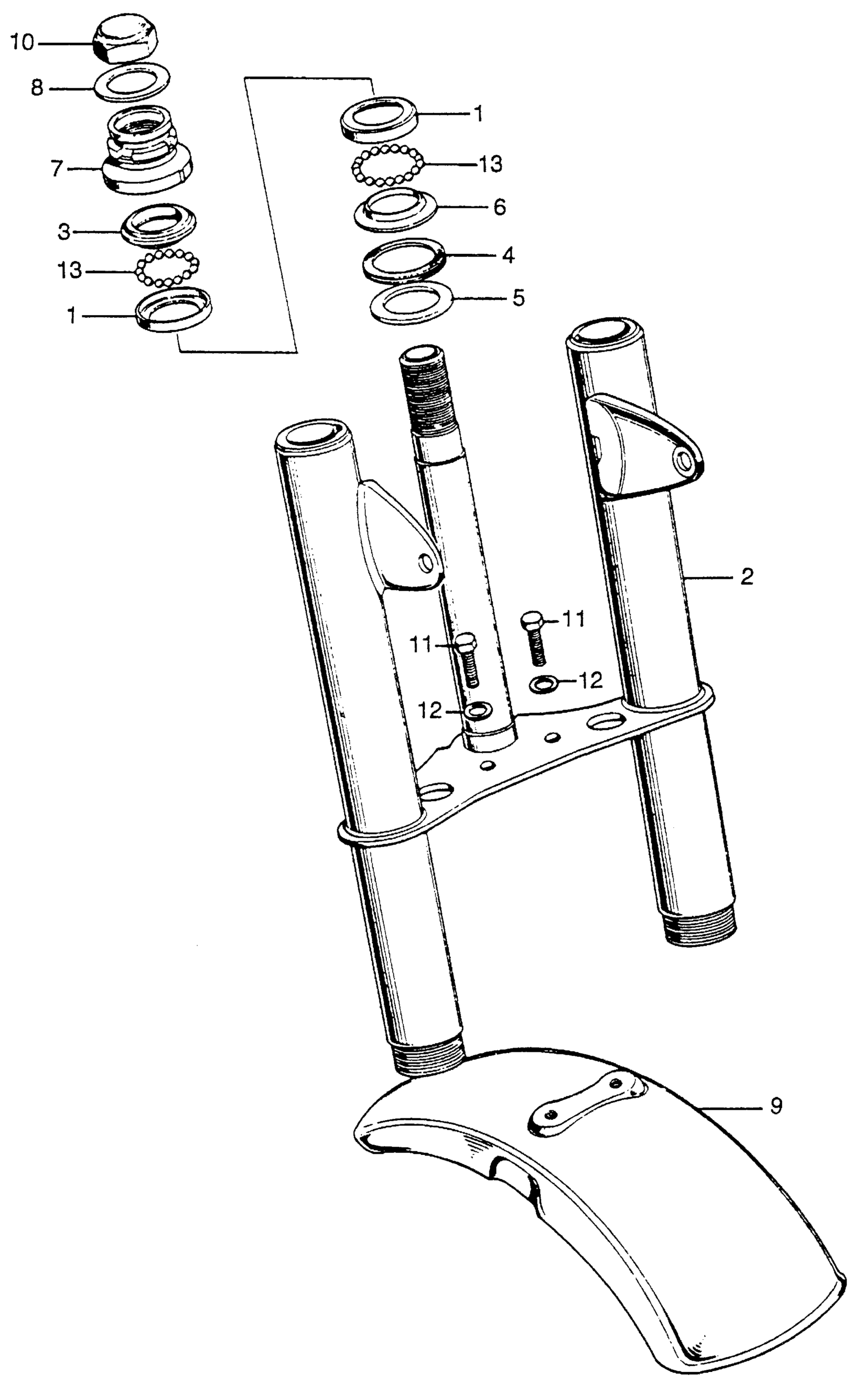

Honda Z50AK4A MOTORCYCLE, JPN, VIN# Z50A-3000001 FRONT FORK I + FRONT FENDER Diagram

#

Description
Price

1

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

1

RACE, STEERING TOP BALL

50301-041-010

$12.39

1

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$12.39

3

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$11.09

3

RACE, STEERING CONE (UPPER)

53211-028-010

$11.09

3

RACE, STEERING TOP CONE This part replaces 53211-028-305.

53211-028-010

$11.09

4

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

5

WASHER, DUST SEAL

53215-120-000

$2.85

6

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

6

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

6

RACE, STEERING CONE (LOWER) This part replaces 53212-937-000.

53212-030-010

$10.73

6

RACE, STEERING CONE (LOWER) This part replaces 53217-030-305.

53212-030-010

$10.73

7

THREAD, STEERING HEAD TOP This part replaces 53220-051-690.

53220-098-670

$16.83

7

THREAD, STEERING HEAD TOP

53220-098-670

$16.83

8

WASHER, STEERING STEM

90503-051-870

$2.84

9

FENDER, FR. *MRCR2* (CHROME PLATING) This part replaces 61100-120-000XW.

61100-130-690XW

$107.11

9

FENDER, FR. *MRCR2* (CHROME PLATING)

61100-130-690XW

$107.11

10

NUT, STEERING STEM This part replaces 90304-011-000.

90304-159-000

$7.02

10

NUT, STEERING STEM

90304-159-000

$7.02

10

NUT, STEERING STEM This part replaces 95020-11100.

90304-159-000

$7.02

11

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

11

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

11

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

12

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

12

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

12

WASHER, PLAIN (6MM)

94101-06800

$1.49

13

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
