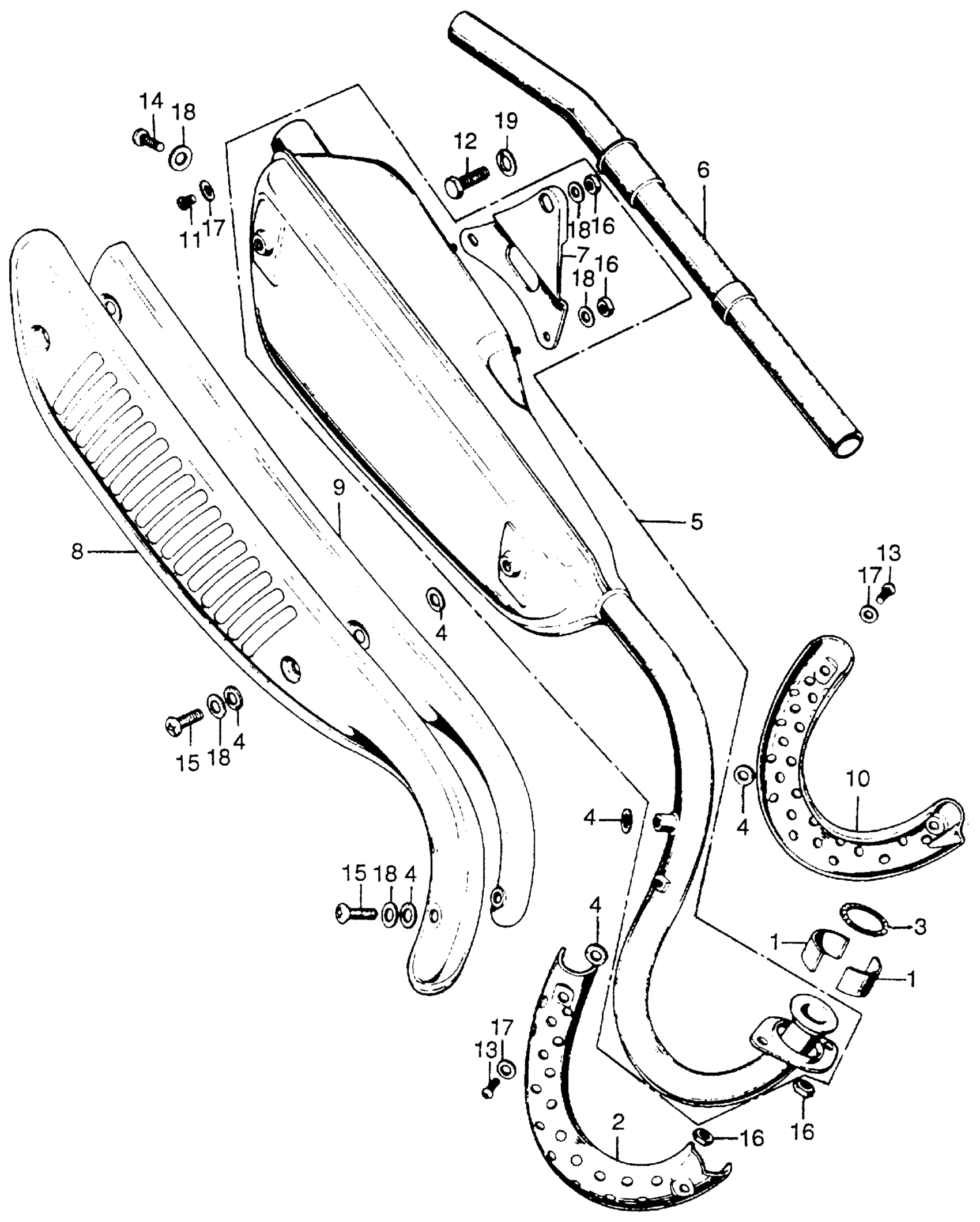

Honda Z50AK3A MOTORCYCLE, JPN, VIN# Z50A-1000001 MUFFLER Diagram

#

Description
Price

1

COLLAR, EX. PIPE JOINT

18233-040-010

Unavailable

2

COVER A, EX. PIPE (NOT AVAILABLE)

18240-120-000

Unavailable

3

GASKET, EX. PIPE

18291-HB2-900

$3.72

3

GASKET, EX. PIPE This part replaces 18291-001-010.

18291-HB2-900

$3.72

3

GASKET, EX. PIPE This part replaces 18291-001-306.

18291-HB2-900

$3.72

4

GASKET, PROTECTOR

18292-167-890

$1.88

4

GASKET, PROTECTOR This part replaces 18292-290-000.

18292-167-890

$1.88

4

GASKET, PROTECTOR This part replaces 18292-329-000.

18292-167-890

$1.88

5

MUFFLER, EX. (NOT AVAILABLE)

183A0-120-671

Unavailable

5

MUFFLER, EX. (NOT AVAILABLE) This part replaces 18300-120-670CT.

183A0-120-671

Unavailable

5

MUFFLER, EX. (NOT AVAILABLE) This part replaces 18300-120-671CT.

183A0-120-671

Unavailable

5

MUFFLER, EX. (NOT AVAILABLE) This part replaces 18300-120-677.

183A0-120-671

Unavailable

6

PIPE, EX. DIFFUSER (NOT AVAILABLE) This part replaces 18314-120-000.

18314-120-010

Unavailable

6

PIPE, EX. DIFFUSER (NOT AVAILABLE)

18314-120-010

Unavailable

7

STAY, MUFFLER HANGER *NH83L* (OFF BLACK) (NOT AVAILABLE)

18353-120-000CT

Unavailable

8

PROTECTOR, MUFFLER *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

18360-120-000XW

Unavailable

9

PROTECTOR B, MUFFLER

18361-120-000

Unavailable

10

COVER B, EX. PIPE (NOT AVAILABLE)

18450-120-000

Unavailable

11

BOLT, HEX. (5X8) This part replaces 92000-05008-4J.

92101-05008-4J

$2.16

11

BOLT, HEX. (5X8)

92101-05008-4J

$2.16

12

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

$1.62

12

BOLT, HEX. (8X20)

92101-08020-0A

$1.62

13

SCREW, PAN (5X6)

93500-05006-0A

$1.49

14

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$1.49

15

SCREW, PAN (6X14) This part replaces 93500-06014.

93500-06014-0A

$1.49

15

SCREW, PAN (6X14)

93500-06014-0A

$1.49

16

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM)

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

17

WASHER, PLAIN (5MM)

94101-05000

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

18

WASHER, PLAIN (6MM)

94101-06800

$1.49

19

WASHER, SPRING (8MM)

94111-08000

$1.49
