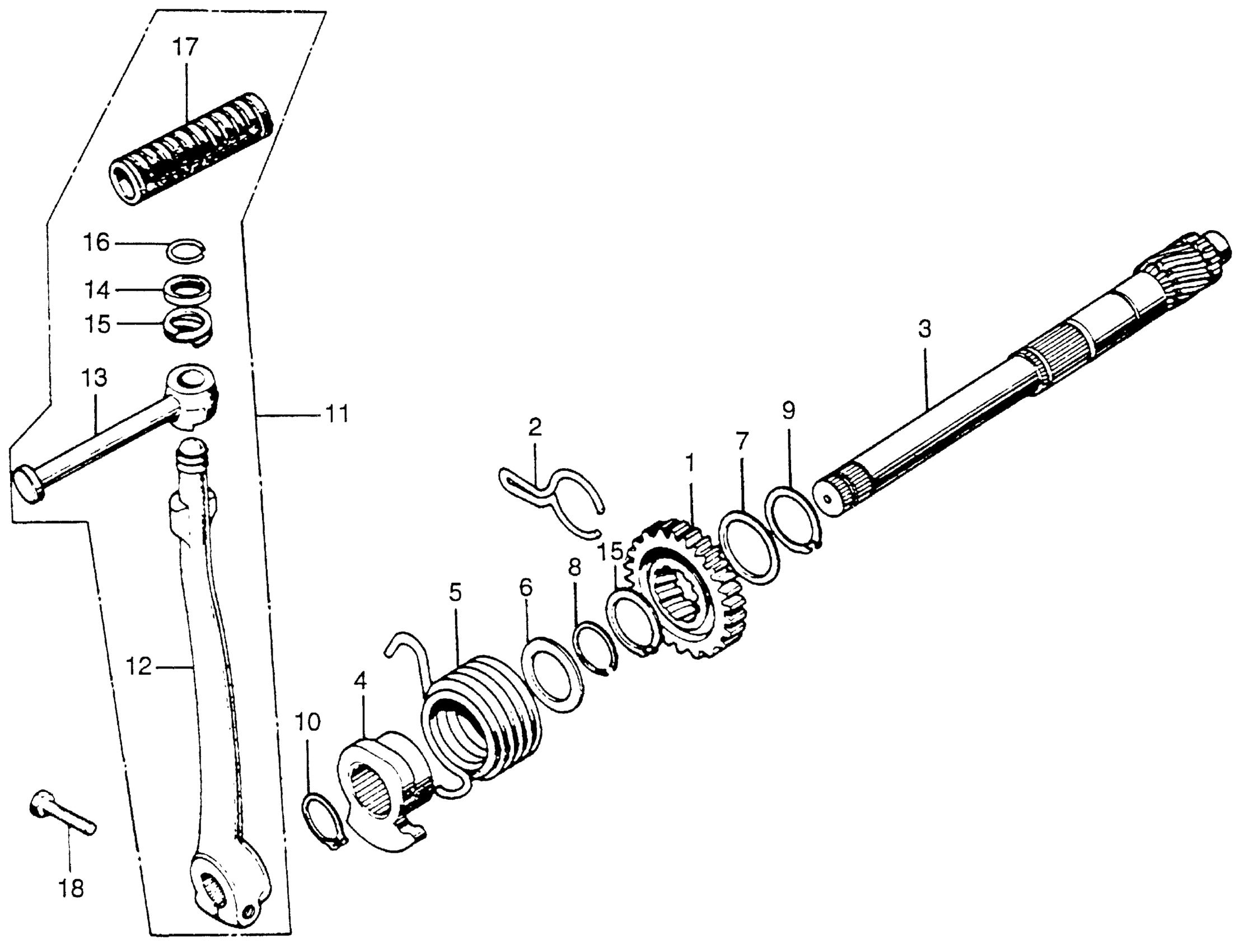

Honda Z50AK3A MOTORCYCLE, JPN, VIN# Z50A-1000001 KICK STARTER Diagram

#

Description
Price

1

PINION, KICK STARTER (22T)

28211-040-035

Unavailable

2

SPRING, KICK STARTER RATCHET

28223-035-035

Unavailable

3

SPINDLE, KICK STARTER This part replaces 28251-035-065.

28251-141-000

Unavailable

3

SPINDLE, KICK STARTER

28251-141-000

Unavailable

4

RETAINER, KICK SPRING This part replaces 28262-035-020.

28262-041-731

$16.77

4

RETAINER, KICK SPRING This part replaces 28262-041-730.

28262-041-731

$16.77

4

RETAINER, KICK SPRING

28262-041-731

$16.77

5

SPRING, KICK STARTER (NIPPON HATSUJO)

28281-035-003

$8.38

5

SPRING, KICK STARTER (NIPPON HATSUJO) This part replaces 28281-035-010.

28281-035-003

$8.38

6

WASHER, THRUST (17MM)

90451-040-000

Unavailable

7

WASHER (20MM) (NOT AVAILABLE)

90482-035-025

Unavailable

8

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

9

SET-RING (20MM)

90605-200-000

$2.92

10

CIRCLIP (OUTER) (16MM)

94510-16000

$1.49

11

ARM ASSY., KICK STARTER

28300-120-000

Unavailable

12

ARM, KICK STARTER

28301-120-000

$72.10

13

PEDAL, KICK STARTER

28302-033-000

Unavailable

14

WASHER, KICK STARTER KNUCKLE

28303-001-000

$1.79

15

SPRING, KICK STARTER KNUCKLE

28322-001-000

$2.84

16

CLIP, KICK STARTER KNUCKLE

28324-001-000

$2.92

17

RUBBER A, KICK STARTER

95011-51000

$3.69

18

BOLT, HEX. (6X22)

92101-06022-0A

$1.54
