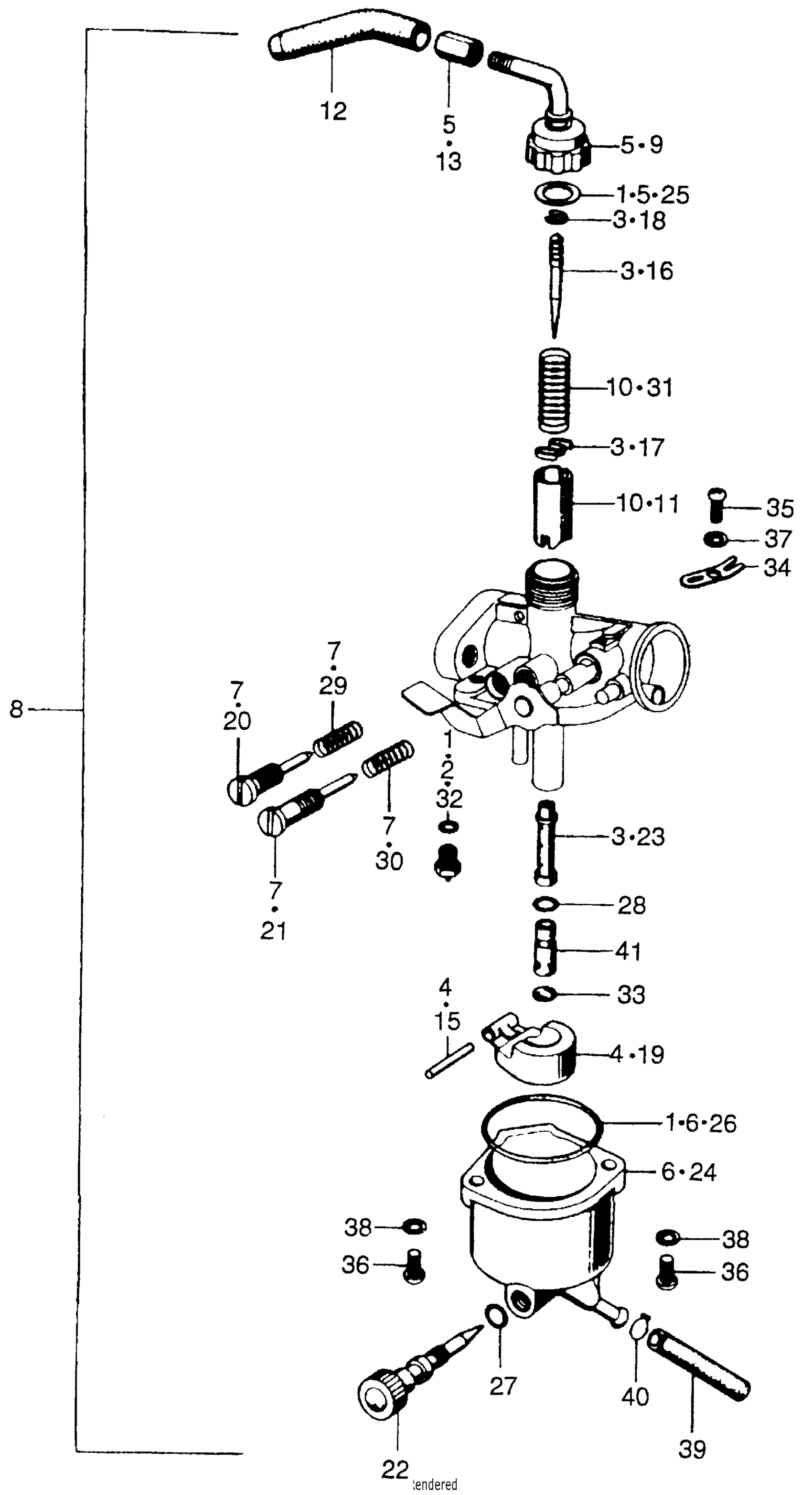

Honda Z50AK3A MOTORCYCLE, JPN, VIN# Z50A-1000001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-114-004.

16010-114-305

Unavailable

1

GASKET SET

16010-114-305

Unavailable

2

VALVE SET, FLOAT

16011-045-004

Unavailable

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-120-004

$35.36

4

FLOAT SET (NOT AVAILABLE)

16013-114-004

Unavailable

5

TOP SET A (NOT AVAILABLE)

16014-120-004

$16.36

6

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-114-004

Unavailable

7

SCREW SET A (NOT AVAILABLE) This part replaces 16016-045-610.

16016-063-004

Unavailable

7

SCREW SET A (NOT AVAILABLE)

16016-063-004

Unavailable

8

CARBURETOR ASSY. (NOT AVAILABLE)

16100-120-010

Unavailable

9

TOP SET A (NOT AVAILABLE) This part replaces 16107-120-004.

16014-120-004

$16.36

10

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-120-004

Unavailable

10

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-120-305

Unavailable

10

VALVE, THROTTLE (NOT AVAILABLE)

16111-120-004

Unavailable

10

VALVE, THROTTLE (NOT AVAILABLE)

16111-120-305

Unavailable

11

CAP, RUBBER

16118-045-770

Unavailable

12

ADJUSTER, CABLE (NOT AVAILABLE)

16118-045-004

Unavailable

12

ADJUSTER, CABLE (NOT AVAILABLE) This part replaces 16118-063-004.

16118-045-004

Unavailable

13

VALVE SET, FLOAT (NOT AVAILABLE)

16125-045-004

Unavailable

14

PIN, FLOAT ARM (NOT AVAILABLE)

16126-063-004

Unavailable

15

NEEDLE, JET (NOT AVAILABLE)

16151-063-690

Unavailable

16

PLATE, NEEDLE CLIP (NOT AVAILABLE)

16156-063-004

Unavailable

17

CLIP, NEEDLE (NOT AVAILABLE)

16157-044-004

Unavailable

18

FLOAT (NOT AVAILABLE)

16161-114-004

Unavailable

19

SCREW, AIR (NOT AVAILABLE)

16162-044-004

Unavailable

20

SCREW, THROTTLE STOP (NOT AVAILABLE)

16163-063-004

Unavailable

21

SCREW, DRAIN (NOT AVAILABLE)

16164-045-014

Unavailable

22

NEEDLE, JET (NOT AVAILABLE)

16164-120-004

Unavailable

23

BODY, FLOAT CHAMBER (NOT AVAILABLE)

16167-114-004

Unavailable

24

WASHER, TOP (NOT AVAILABLE)

16171-044-004

Unavailable

25

O-RING (43X1.4) (NOT AVAILABLE)

16173-063-004

Unavailable

26

O-RING (3.8X1.9) (NOT AVAILABLE)

16174-045-004

Unavailable

27

O-RING (3.2X1.1) (NOT AVAILABLE)

16176-551-004

Unavailable

28

SPRING, AIR SCREW (NOT AVAILABLE)

16181-001-004

Unavailable

29

SPRING, AIR SCREW (NOT AVAILABLE)

16181-250-004

Unavailable

30

SPRING, THROTTLE (NOT AVAILABLE)

16185-044-004

Unavailable

31

WASHER (NOT AVAILABLE)

16188-049-004

Unavailable

32

GASKET (NOT AVAILABLE)

16197-063-004

Unavailable

33

PLATE, CLIP (NOT AVAILABLE)

16199-063-004

Unavailable

34

SCREW, PAN (3X6)

93500-03006-0A

$1.49

35

SCREW, PAN (4X12)

93500-04012-0A

$1.49

36

WASHER, SPRING (3MM)

94111-03000

$1.49

37

WASHER, SPRING (4MM)

94111-04000

$1.49

38

BULK HOSE, FUEL (3.5X3000) (3.5X180)

95001-35003-60M

$20.85

39

CLIP, TUBE (B8)

95002-02080

$1.80

40

JET, MAIN (#50) (NOT AVAILABLE)

99101-114-0500

Unavailable

40

JET SET, MAIN (#52) (NOT AVAILABLE) This part replaces 99101-114-0520.

99201-114-0520

Unavailable

40

JET, MAIN (#55) (NOT AVAILABLE)

99101-114-0550

Unavailable

40

JET, MAIN (#58) (NOT AVAILABLE)

99101-114-0580

Unavailable

40

JET, MAIN (#60) (NOT AVAILABLE)

99101-114-0600

Unavailable

40

JET SET, MAIN (#52) (NOT AVAILABLE)

99201-114-0520

Unavailable

41

JET SET, MAIN (#55) (NOT AVAILABLE)

99201-114-0550

Unavailable
