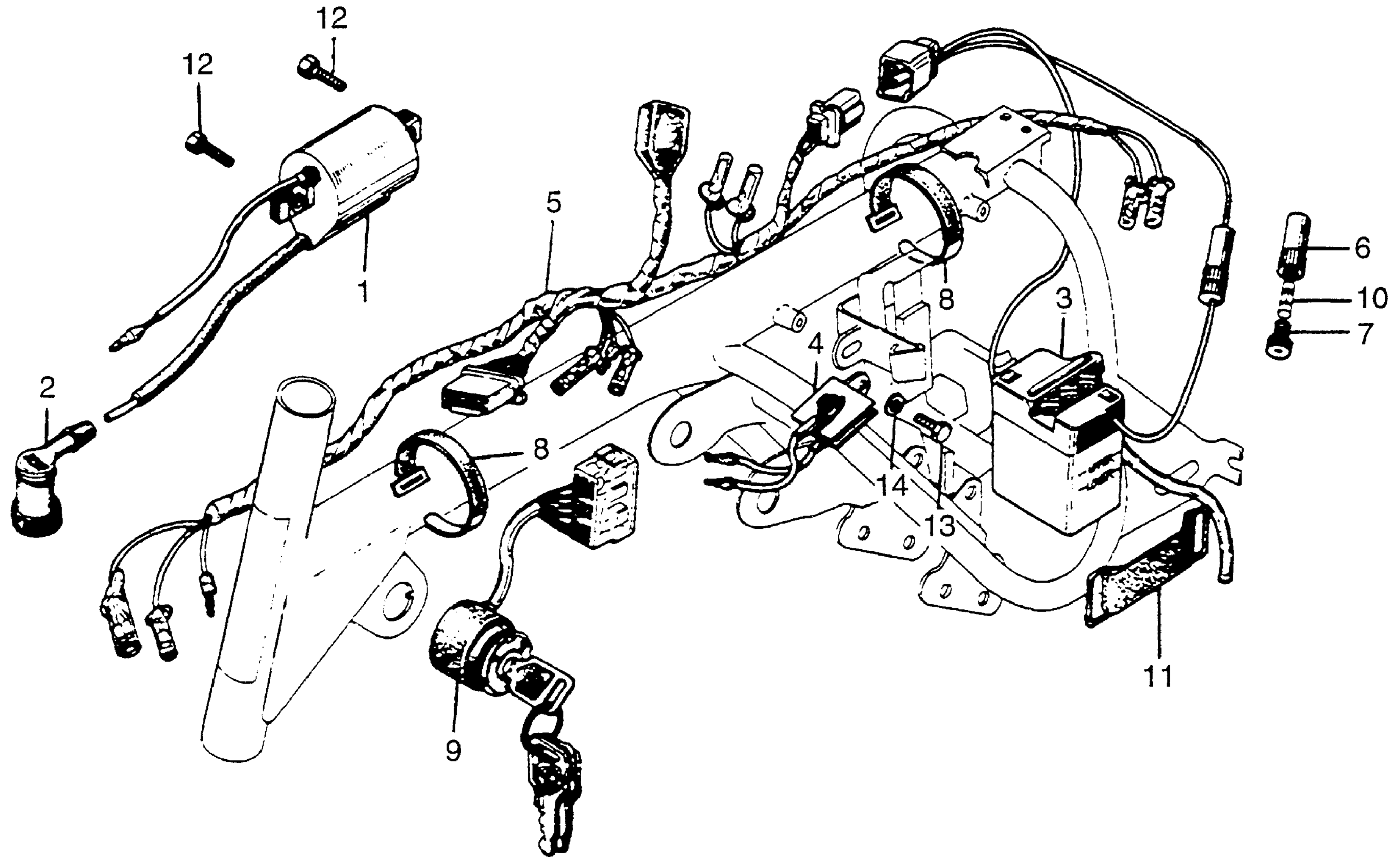

Honda Z50AK2A MOTORCYCLE, JPN, VIN# Z50A-270236 TO Z50A-387884 WIRE HARNESS + BATTERY Diagram

#

Description

Price

1

COIL ASSY., IGNITION (NOT AVAILABLE)

30400-045-035

Unavailable

2

CAP ASSY., NOISE SUPPRESSOR

30700-KE2-942

$17.87

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-153.

30700-KE2-942

$17.87

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-158.

30700-KE2-942

$17.87

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-163.

30700-KE2-942

$17.87

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-259-810.

30700-KE2-942

$17.87

5

WIRE HARNESS (NOT AVAILABLE)

32100-045-671

Unavailable

8

BAND A3, WIRE | Use up to Frame SN 382794 This part replaces 32161-001-000.

95014-61300

$1.97

8

BAND A3, WIRE | Use up to Frame SN 382794

95014-61300

$1.97

8

BAND A3, WIRE

95014-61300

$1.97

9

SWITCH ASSY., COMBINATION (NOT AVAILABLE)

35100-045-601

Unavailable

12

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

12

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

12

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49
