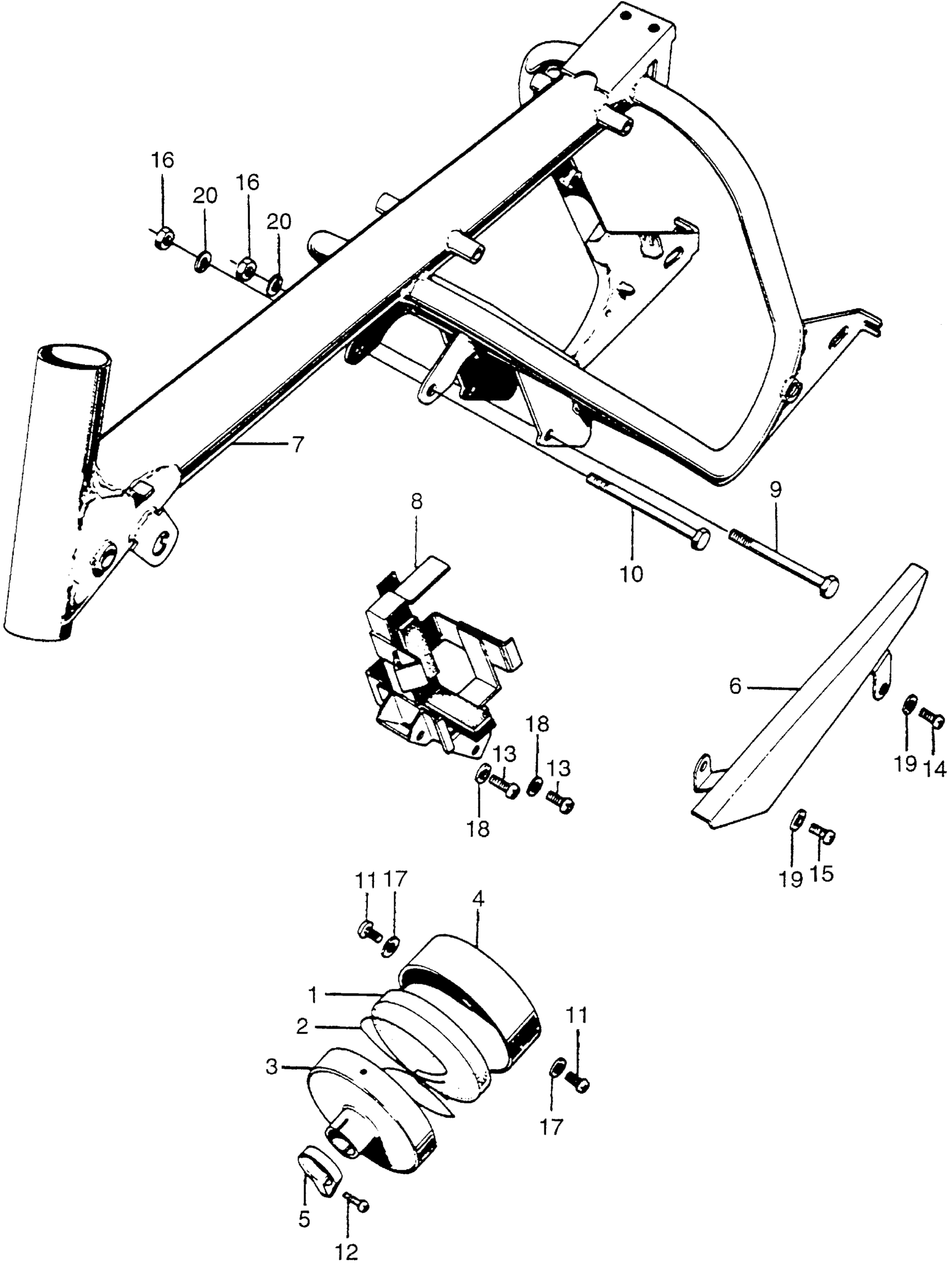

Honda Z50AK2A MOTORCYCLE, JPN, VIN# Z50A-270236 TO Z50A-387884 FRAME + AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17211-045-670

$5.26

2

WIRE, CLEANER ELEMENT SUPPORT (NOT AVAILABLE)

17213-045-670

Unavailable

3

HOUSING, AIR CLEANER

17221-045-670

Unavailable

4

COVER, AIR CLEANER

17231-045-670

Unavailable

5

BAND, CLEANER CONNECTING TUBE

17255-045-670

$10.75

6

CASE DRIVE CHAIN This part replaces 40510-045-670XW.

40510-045-405

Unavailable

7

FRAME (NOT AVAILABLE)

50100-045-677Z

Unavailable

9

This part replaces 92000-08100-0A.

92101-08100-0A

Unavailable

10

BOLT, HEX. (8X110) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-08109.

92101-08110-0A

Unavailable

10

BOLT, HEX. (8X110) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-08109-DA.

92101-08110-0A

Unavailable

10

BOLT, HEX. (8X110) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-08109-0A.

92101-08110-0A

Unavailable

11

SCREW, PAN (4X8)

93500-04008-0A

$1.49

12

SCREW, PAN (4X16)

93500-04016-0A

$1.49

14

SCREW, PAN (6X8) This part replaces 90053-371-980.

93500-06008-0H

$1.49

14

SCREW, PAN (6X8)

93500-06008

$1.49

14

SCREW, PAN (6X8)

93500-06008-0A

$1.49

14

SCREW, PAN (6X8)

93500-06008-0H

$1.49

14

SCREW, PAN (6X8) This part replaces 93500-06008-1H.

93500-06008-0H

$1.49

15

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

15

SCREW, PAN (6X12)

93500-06012-0A

$1.49

15

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

16

NUT, HEX. (8MM)

94030-08000

$1.49

17

WASHER, PLAIN (4MM)

94101-04000

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

19

WASHER, PLAIN (6MM)

94101-06800

$1.49

20

WASHER, SPRING (8MM)

94111-08000

$1.49
