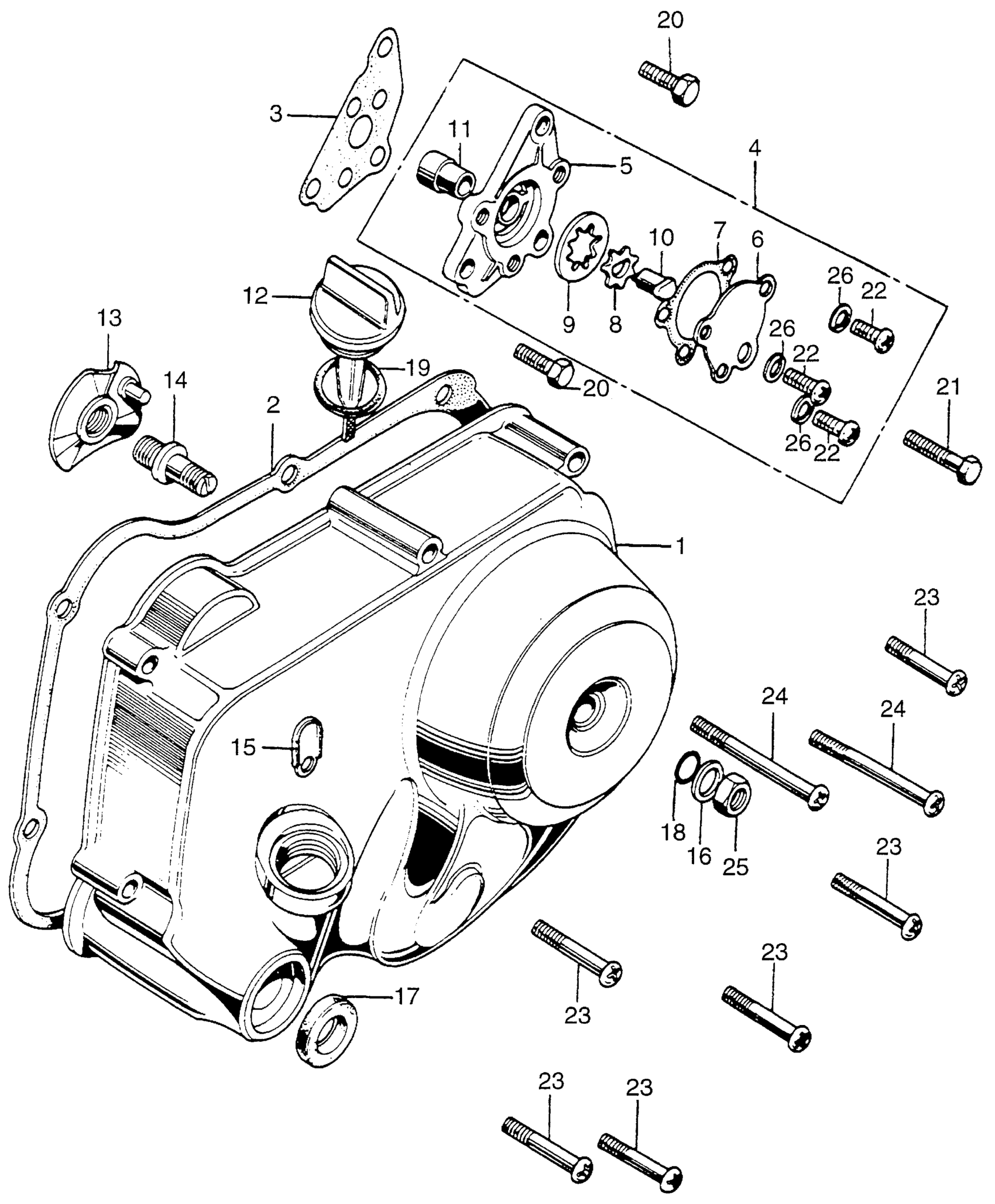

Honda Z50AK2A (71) MOTORCYCLE, JPN, VIN# Z50A-270236 TO Z50A-387884 OIL PUMP@CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE This part replaces 11330-045-010.

11330-045-020

Unavailable

2

GASKET, R. CRANKCASE COVER This part replaces 11394-GW8-680.

11394-GW8-682

$13.57

2

GASKET, R. CRANKCASE COVER This part replaces 11394-GW8-681.

11394-GW8-682

$13.57

2

GASKET, R. CRANKCASE COVER

11394-GW8-682

$13.57

2

GASKET, R. CRANKCASE COVER This part replaces 11394-035-010.

11394-GW8-682

$13.57

2

GASKET, R. CRANKCASE COVER This part replaces 11394-035-306.

11394-GW8-682

$13.57

3

GASKET, OIL PUMP BODY

15119-035-020

Unavailable

4

PUMP ASSY., OIL

15300-035-000

Unavailable

5

BODY, OIL PUMP (NOT AVAILABLE)

15311-035-013

Unavailable

6

COVER, OIL PUMP (NOT AVAILABLE)

15321-035-000

Unavailable

7

GASKET, OIL PUMP COVER This part replaces 15329-035-000.

15329-035-003

$4.24

7

GASKET, OIL PUMP COVER

15329-035-003

$4.24

8

ROTOR, OIL PUMP (INNER) (NOT AVAILABLE) This part replaces 15331-035-000.

15331-035-004

Unavailable

8

ROTOR, OIL PUMP (INNER) (NOT AVAILABLE)

15331-035-004

Unavailable

9

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE) This part replaces 15332-035-000.

15332-035-004

Unavailable

9

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE)

15332-035-004

Unavailable

10

DRIVESHAFT, OIL PUMP (NOT AVAILABLE) This part replaces 15382-035-000.

15382-035-003

Unavailable

10

DRIVESHAFT, OIL PUMP (NOT AVAILABLE)

15382-035-003

Unavailable

11

PIN, OIL PUMP KNOCK This part replaces 15383-035-000.

15383-035-003

Unavailable

12

DIPSTICK, OIL This part replaces 15650-051-690.

15650-098-730

$7.78

12

DIPSTICK, OIL

15650-098-730

$7.78

13

PLATE, CLUTCH LIFTER

22830-041-000

$11.73

14

BOLT, CLUTCH ADJUSTING

22846-040-010

$6.30

15

GUIDE, RR. BRAKE CABLE (NOT AVAILABLE)

43458-045-670

Unavailable

16

WASHER (8MM)

90485-040-000

$1.77

17

OIL SEAL (13.8X24X5)

91202-KFL-841

$5.04

17

OIL SEAL (14X24X5) This part replaces 91202-216-000.

91202-KFL-841

$5.04

17

OIL SEAL (14X24X5) This part replaces 91202-216-003.

91202-KFL-841

$5.04

17

OIL SEAL (14X24X5) This part replaces 91202-302-000.

91202-KFL-841

$5.04

17

OIL SEAL (14X24X5) This part replaces 91202-302-010.

91202-KFL-841

$5.04

17

OIL SEAL (14X24X5) This part replaces 91205-HB2-771.

91202-KFL-841

$5.04

17

OIL SEAL (14X24X5) This part replaces 91205-HB2-772.

91202-KFL-841

$5.04

17

OIL SEAL (14X24X5) This part replaces 91205-035-303.

91202-KFL-841

$5.04

18

O-RING (8X1.7) (ARAI) This part replaces 91303-001-000.

91306-HB3-003

$1.81

18

O-RING (8X1.7) (ARAI)

91306-HB3-003

$1.81

19

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

19

O-RING (18X3)

91307-035-000

$2.92

20

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

21

BOLT, HEX. (6X20) BOLT, FLANGE (6X20)

92101-06020-0A

$1.49

23

SCREW, PAN (6X40) This part replaces 93500-06038.

93500-06040-0A

$1.49

23

SCREW, PAN (6X40) This part replaces 93500-06038-0A.

93500-06040-0A

$1.49

23

SCREW, PAN (6X40)

93500-06040-0A

$1.49

24

SCREW, PAN (6X65) This part replaces 93500-06065.

93500-06065-0A

$1.53

24

SCREW, PAN (6X65)

93500-06065-0A

$1.53

25

NUT, HEX. (8MM)

94030-08000

$1.49

26

WASHER, SPRING (5MM)

94111-05000

$1.49
