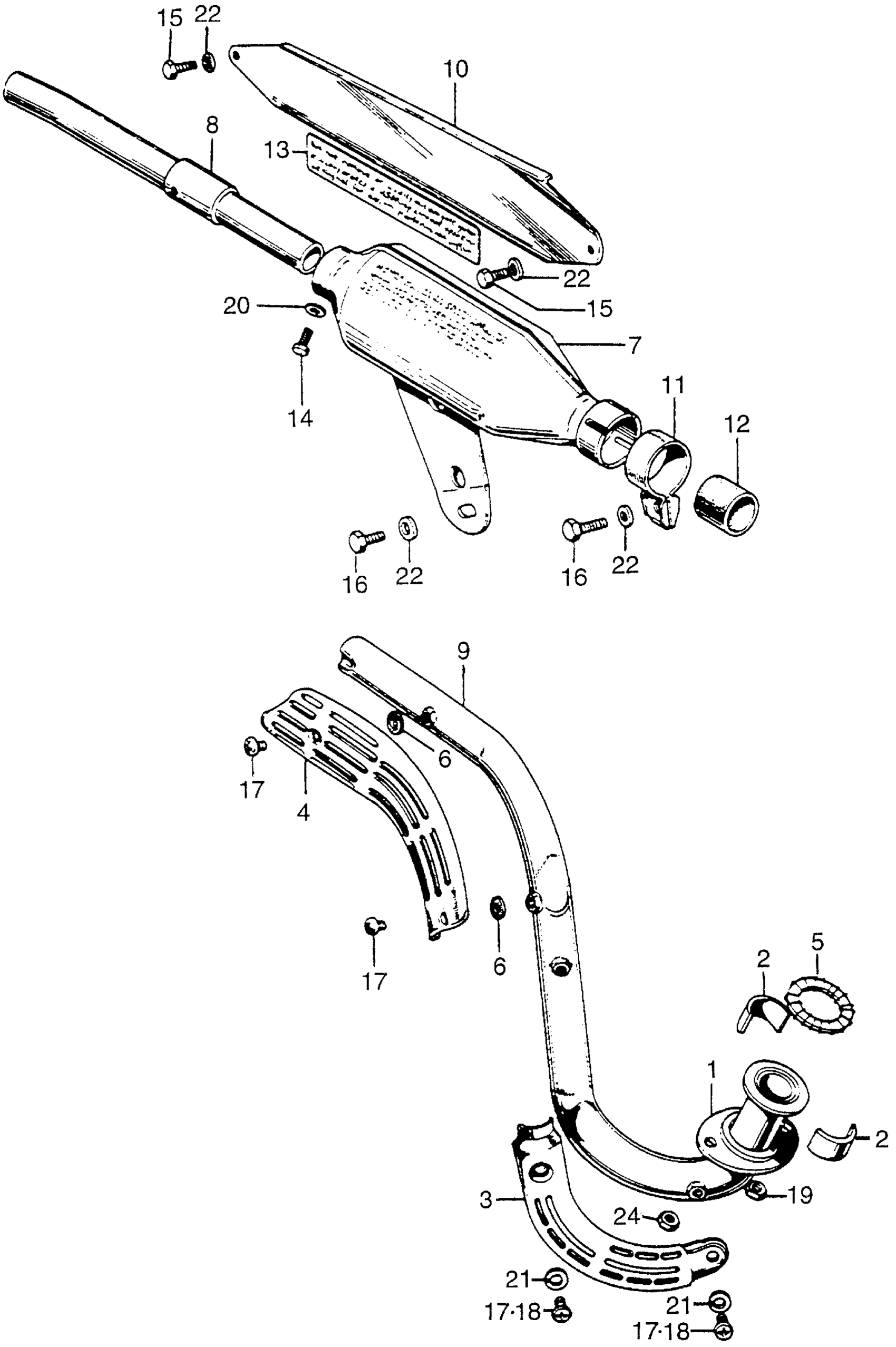

Honda Z50AK2A (71) MOTORCYCLE, JPN, VIN# Z50A-270236 TO Z50A-387884 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE (NOT AVAILABLE)

18231-040-000

$8.79

1

JOINT, EX. PIPE (NOT AVAILABLE) This part replaces 18231-041-300.

18231-040-000

$8.79

2

COLLAR, EX. PIPE JOINT (NOT AVAILABLE)

18233-040-010

Unavailable

3

COVER, EX. PIPE (NOT AVAILABLE)

18240-045-670

Unavailable

4

PROTECTOR, EX. PIPE (NOT AVAILABLE)

18241-045-000

Unavailable

5

GASKET, EX. PIPE

18291-HB2-900

$3.72

5

GASKET, EX. PIPE This part replaces 18291-001-010.

18291-HB2-900

$3.72

5

GASKET, EX. PIPE This part replaces 18291-001-306.

18291-HB2-900

$3.72

6

GASKET, PROTECTOR

18292-167-890

$1.88

6

GASKET, PROTECTOR This part replaces 18292-290-000.

18292-167-890

$1.88

6

GASKET, PROTECTOR This part replaces 18292-329-000.

18292-167-890

$1.88

7

MUFFLER (NOT AVAILABLE)

183A1-045-671

Unavailable

7

MUFFLER (NOT AVAILABLE) This part replaces 18310-045-671.

183A1-045-671

Unavailable

7

MUFFLER (NOT AVAILABLE) This part replaces 18310-045-677.

183A1-045-671

Unavailable

8

PIPE, EX. DIFFUSER (NOT AVAILABLE)

18314-045-670

Unavailable

9

PIPE, EX. (NOT AVAILABLE)

18320-045-671

Unavailable

10

PROTECTOR, MUFFLER (NOT AVAILABLE) This part replaces 18360-045-671CM.

18360-045-671Z

Unavailable

11

BAND, MUFFLER This part replaces 18371-045-000.

18371-GZ4-670

Unavailable

11

BAND, MUFFLER This part replaces 18371-114-000.

18371-GZ4-670

Unavailable

12

GASKET, MUFFLER

18391-GZ4-670

$18.81

12

GASKET, MUFFLER This part replaces 18391-045-000.

18391-GZ4-670

$18.81

12

GASKET, MUFFLER This part replaces 18391-045-306.

18391-GZ4-670

$18.81

13

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

13

LABEL, MUFFLER CAUTION This part replaces 87506-045-000.

87504-028-670

$2.92

14

BOLT, HEX. (5X8) This part replaces 92000-05008-4J.

92101-05008-4J

$2.16

14

BOLT, HEX. (5X8)

92101-05008-4J

$2.16

15

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

15

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

15

BOLT, HEX. (6X12) BOLT, FLANGE (6X12)

92101-06012-0A

$1.49

16

BOLT, HEX. (6X18) This part replaces 92000-06018.

92101-06018-0A

$1.49

16

BOLT, HEX. (6X18) This part replaces 92000-06018-0A.

92101-06018-0A

$1.49

16

BOLT, HEX. (6X18)

92101-06018-0A

$1.49

16

BOLT, HEX. (6X18) This part replaces 92200-06018.

92101-06018-0A

$1.49

18

BOLT, FLANGE (8X62)

93500-05008-0A

$1.49

19

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM)

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

20

WASHER, PLAIN (5MM)

94101-05000

$1.49

21

WASHER, PLAIN (5MM)

94101-05200

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

22

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

$1.49
