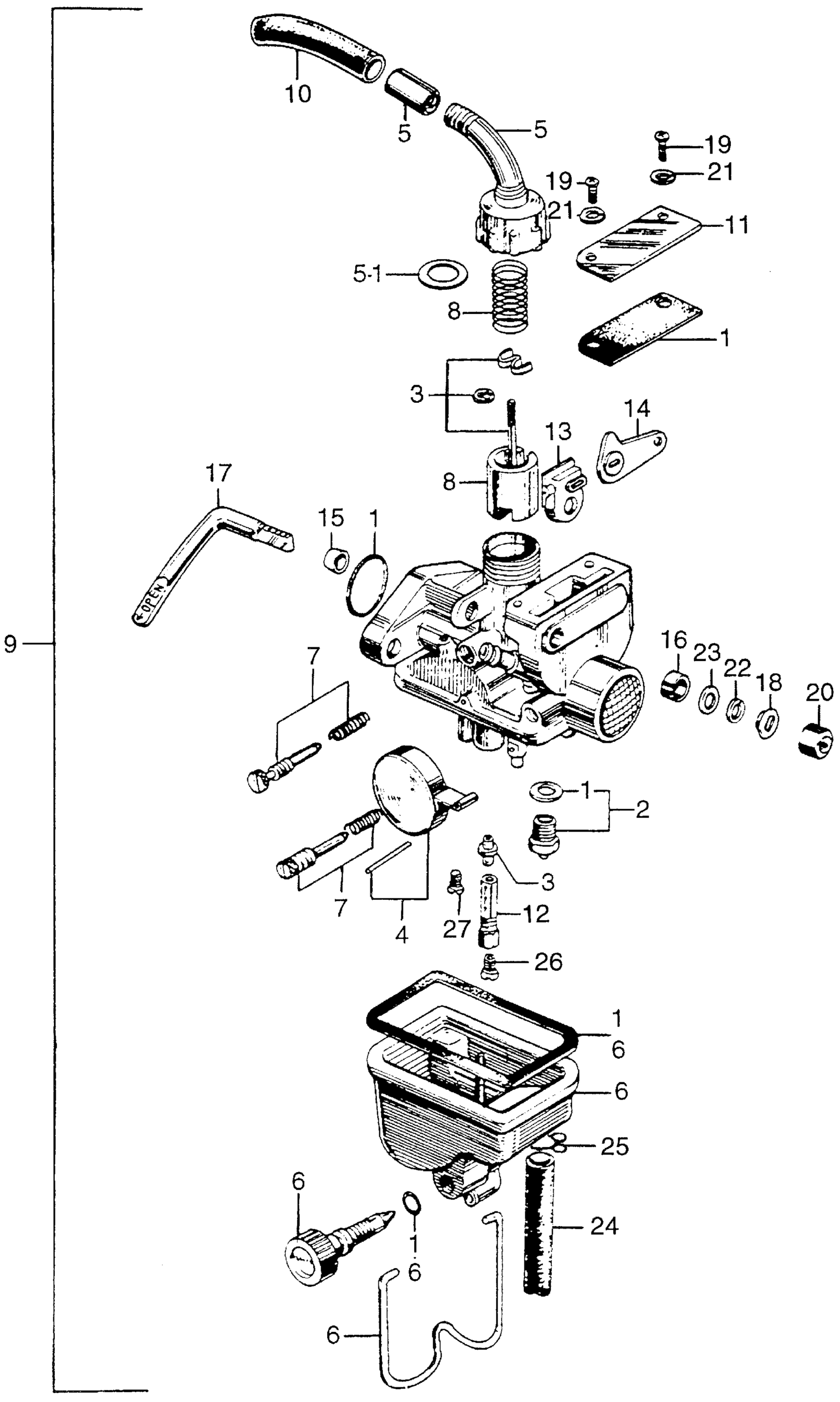

Honda Z50AK1A MOTORCYCLE, JPN, VIN# Z50A-120088 TO Z50A-270235 CARBURETOR SET Diagram

#

Description
Price

1

GASKET SET (NOT AVAILABLE)

16010-045-670

Unavailable

2

VALVE SET, FLOAT (NOT AVAILABLE)

16011-045-004

Unavailable

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-045-670

Unavailable

4

FLOAT SET (NOT AVAILABLE)

16013-045-004

Unavailable

5

TOP SET (NOT AVAILABLE)

16014-045-004

Unavailable

6

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-045-670

Unavailable

7

SCREW SET A (NOT AVAILABLE)

16016-045-014

$14.10

8

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-045-600

Unavailable

9

CARBURETOR ASSY. (NOT AVAILABLE) | Use up to Engine SN 255950 This part replaces 16100-045-670.

16100-045-671

Unavailable

9

CARBURETOR ASSY. (NOT AVAILABLE) | Use up to Engine SN 255950

16100-045-671

Unavailable

10

CAP, RUBBER (NOT AVAILABLE) | Use up to Engine SN 255950

16118-045-770

Unavailable

10

CAP, RUBBER | Use up to Engine SN 255950 This part replaces 16194-045-004.

16118-045-770

Unavailable

11

COVER, CHOKE (NOT AVAILABLE)

16123-049-004

Unavailable

12

HOLDER, NEEDLE JET (NOT AVAILABLE)

16139-045-014

Unavailable

13

VALVE, CHOKE (NOT AVAILABLE)

16142-049-004

Unavailable

14

LINK, CHOKE (NOT AVAILABLE)

16143-050-004

Unavailable

15

SEAL (NOT AVAILABLE)

16178-049-004

Unavailable

16

SEAT, SEALING (NOT AVAILABLE)

16179-049-004

Unavailable

17

LEVER, CHOKE (NOT AVAILABLE)

16192-050-014

Unavailable

18

WASHER, STOPPER (NOT AVAILABLE)

16197-049-004

Unavailable

19

SCREW, PAN (3X8)

93500-03008-0A

$1.49

20

NUT, HEX. (5MM) | Use from Engine SN 108296

94001-05000-0S

$2.74

21

WASHER, SPRING (3MM)

94111-03000

$1.49

22

WASHER, SPRING (5MM)

94111-05000

$1.49

23

WASHER, PLAIN (5MM)

94101-05000

$1.49

24

BULK HOSE, FUEL (3.5X3000) (3.5X200) | Use from Engine SN 255951

95001-35003-60M

$20.85

25

CLIP, TUBE (B7)

95002-02070

$1.80

25

CLIP, TUBE (B7) | Use from Engine SN 255951

95002-02070

$1.80

26

JET, MAIN (#50) (NOT AVAILABLE)

99114-076-0500

Unavailable

27

JET, SLOW (#38) (NOT AVAILABLE)

99151-03804

Unavailable

27

JET, SLOW (#38) (NOT AVAILABLE) This part replaces 99153-03804.

99151-03804

Unavailable
