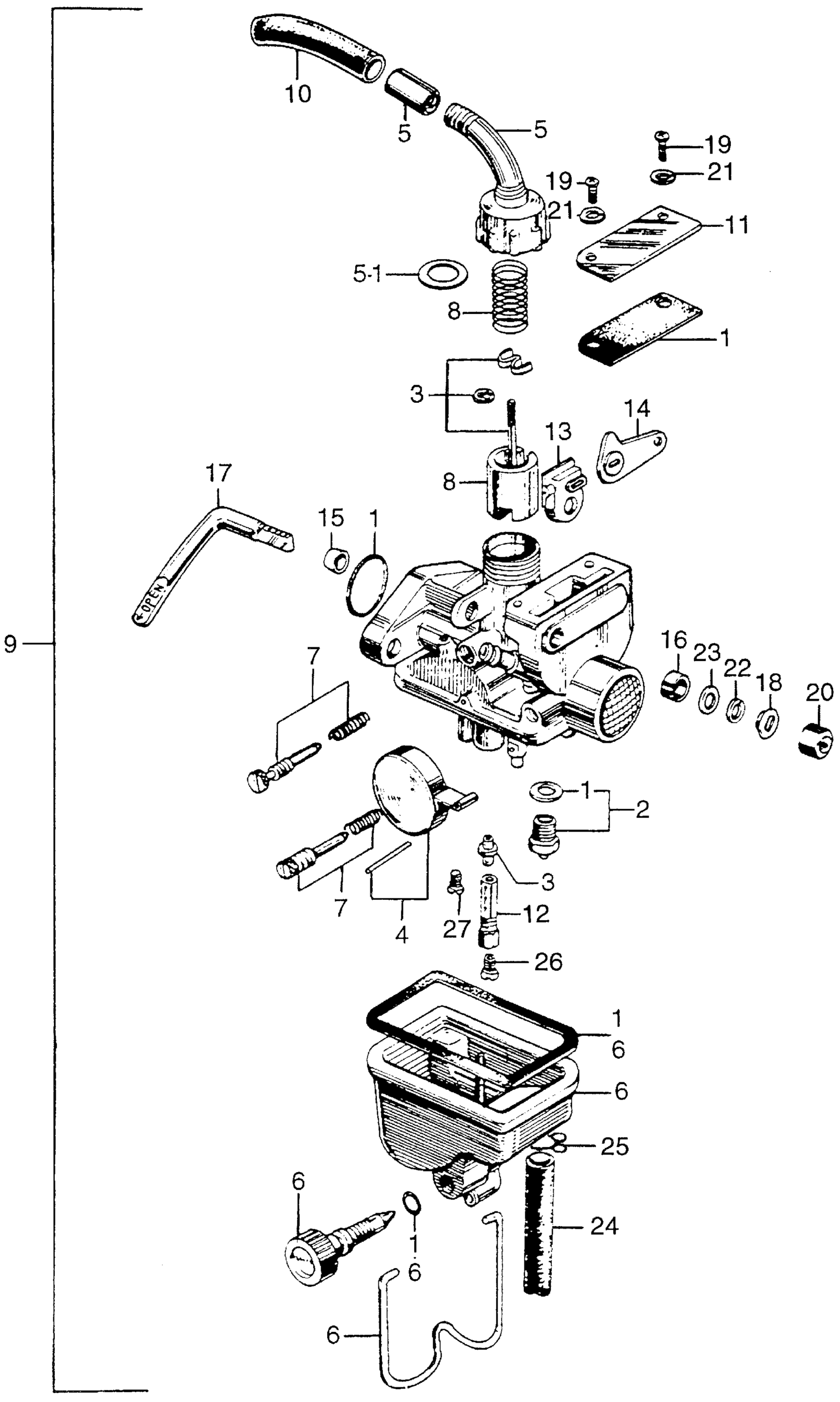

Honda Z50AK1A (70) MOTORCYCLE, JPN, VIN# Z50A-120088 TO Z50A-270235 CARBURETOR SET Diagram

GASKET SET (NOT AVAILABLE)

16010-045-670

Unavailable

VALVE SET, FLOAT (NOT AVAILABLE)

16011-045-004

Unavailable

NEEDLE SET, JET (NOT AVAILABLE)

16012-045-670

Unavailable

FLOAT SET (NOT AVAILABLE)

16013-045-004

Unavailable

TOP SET (NOT AVAILABLE)

16014-045-004

Unavailable

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-045-670

Unavailable

SCREW SET A (NOT AVAILABLE)

16016-045-014

$14.10

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-045-600

Unavailable

CARBURETOR ASSY. (NOT AVAILABLE) | Use up to Engine SN 255950. This part replaces 16100-045-670.

16100-045-671

Unavailable

CARBURETOR ASSY. (NOT AVAILABLE) | Use up to Engine SN 255950.

16100-045-671

Unavailable

CAP, RUBBER (NOT AVAILABLE) | Use up to Engine SN 255950.

16118-045-770

Unavailable

CAP, RUBBER | Use up to Engine SN 255950. This part replaces 16194-045-004.

16118-045-770

Unavailable

COVER, CHOKE (NOT AVAILABLE)

16123-049-004

Unavailable

VALVE, CHOKE (NOT AVAILABLE)

16142-049-004

Unavailable

LINK, CHOKE (NOT AVAILABLE)

16143-050-004

Unavailable

SEAL (NOT AVAILABLE)

16178-049-004

Unavailable

SEAT, SEALING (NOT AVAILABLE)

16179-049-004

Unavailable

LEVER, CHOKE (NOT AVAILABLE)

16192-050-014

Unavailable

WASHER, STOPPER (NOT AVAILABLE)

16197-049-004

Unavailable

WASHER, SPRING (3MM)

94111-03000

$1.49

WASHER, SPRING (5MM)

94111-05000

$1.49

WASHER, PLAIN (5MM)

94101-05000

$1.49

BULK HOSE, FUEL (3.5X3000) (95001-3500(95001-35001-60M) | Use from Engine SN 255951.

95001-35003-60M

$20.85

CLIP, TUBE (B7) CLIP, TUBE (B6.5)

95002-02070

$1.80

JET, SLOW (#38) (NOT AVAILABLE)

99151-03804

Unavailable

JET, SLOW (#38) (NOT AVAILABLE) This part replaces 99153-03804.

99151-03804

Unavailable
