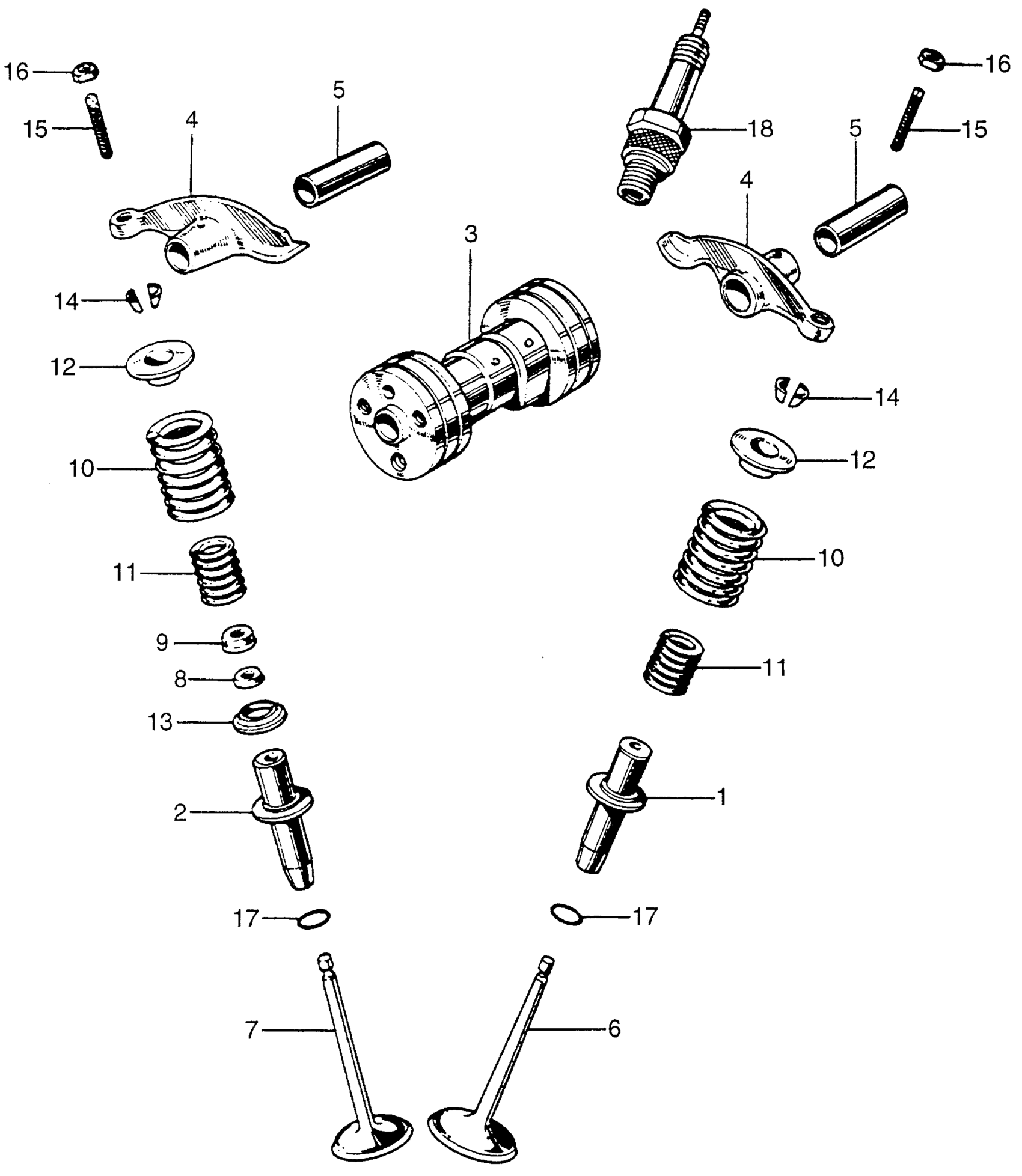

Honda Z50AK1A (70) MOTORCYCLE, JPN, VIN# Z50A-120088 TO Z50A-270235 CAMSHAFT@VALVE Diagram

#

Description
Price

1

GUIDE, VALVE This part replaces 12021-035-811.

12023-035-405

Unavailable

2

GUIDE, EX. VALVE This part replaces 12023-051-310.

12023-051-320

Unavailable

2

GUIDE, EX. VALVE (NOT AVAILABLE)

12023-051-320

Unavailable

3

CAMSHAFT This part replaces 14101-041-020.

14101-041-030

Unavailable

3

CAMSHAFT (NOT AVAILABLE)

14101-041-030

Unavailable

4

ARM, VALVE ROCKER This part replaces 14431-035-000.

14431-035-020

$38.09

4

ARM, VALVE ROCKER This part replaces 14431-035-010.

14431-035-020

$38.09

4

ARM, VALVE ROCKER

14431-035-020

$38.09

5

SHAFT, VALVE ROCKER ARM

14451-035-000

$8.80

6

VALVE, IN. (NOT AVAILABLE)

14711-036-000

Unavailable

7

VALVE, EX. This part replaces 14721-036-000.

14721-036-010

Unavailable

7

VALVE, EX. (NOT AVAILABLE)

14721-036-010

Unavailable

8

SEAL, VALVE STEM

14730-028-013

$9.71

9

CAP, VALVE STEM SEAL

14731-028-000

$4.35

10

SPRING, VALVE (OUTER)

14751-035-600

$4.85

11

SPRING, VALVE (INNER)

14761-035-000

$3.12

12

RETAINER, VALVE SPRING (NOT AVAILABLE)

14771-035-600

Unavailable

13

SEAT, VALVE SPRING (INNER)

14776-028-000

$4.37

14

COTTER, VALVE

14781-001-004

$4.95

14

COTTER, VALVE

14781-001-010

$5.66

15

SCREW, TAPPET ADJ. This part replaces 90012-200-000.

90012-333-000

$2.75

15

SCREW, TAPPET ADJUSTING

90012-333-000

$2.75

16

NUT, TAPPET ADJUSTING

90206-001-000

$1.66

17

O-RING (9.5X1.6)

91306-028-000

$2.92

18

SPARK PLUG (C6HSA) (NGK) This part replaces 98056-56711.

98056-56713

$2.38

18

SPARK PLUG (C6HSA) (NGK)

98056-56713

$2.38

18

SPARK PLUG (U20FB) (DENSO) This part replaces 98056-56721.

98056-56723

$2.20

18

SPARK PLUG (U20FB) (DENSO)

98056-56723

$2.20
