- Z50AA MOTORCYCLE, JPN, VIN# Z50A-100001 TO Z50A-120087
REAR WHEEL

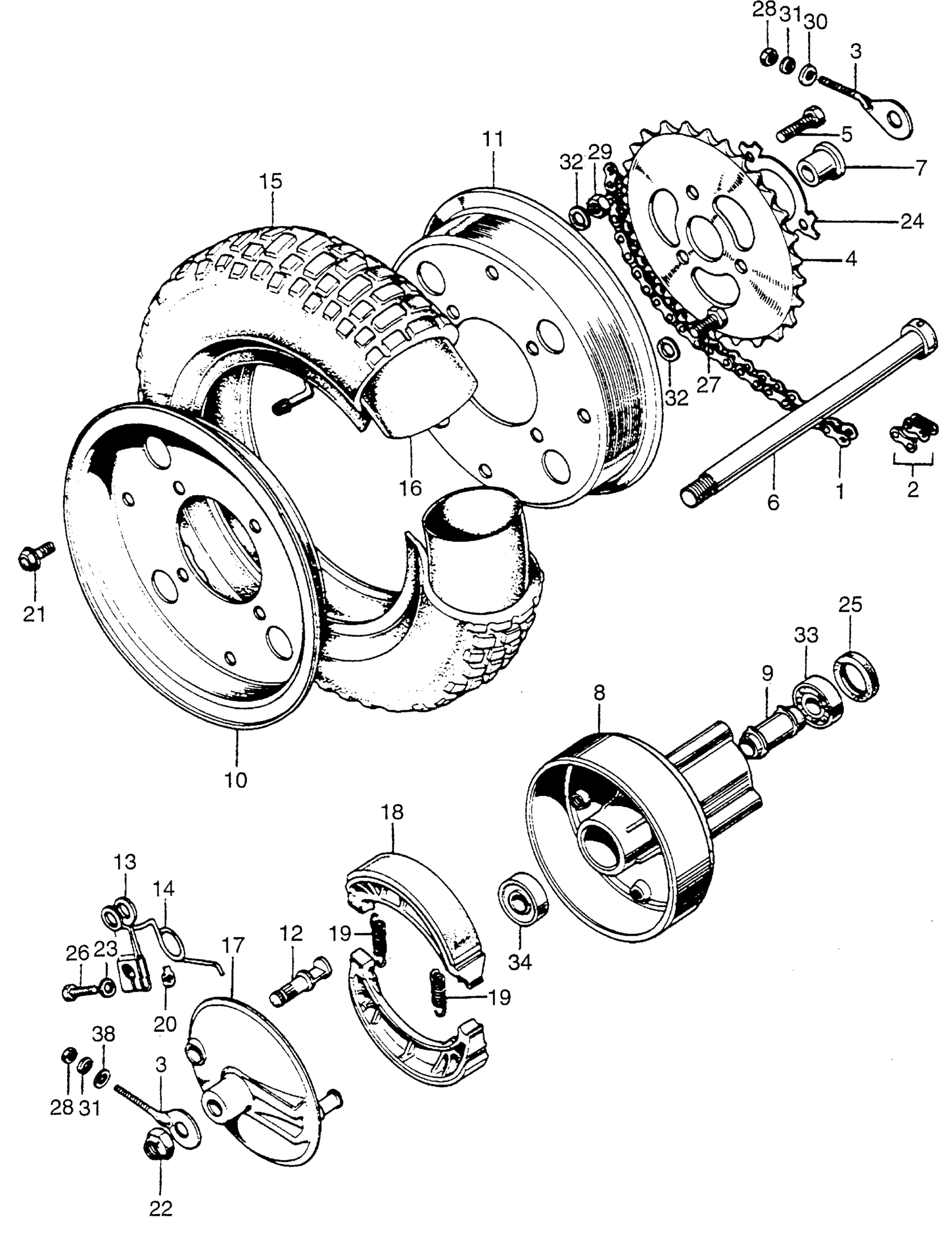

Honda Z50AA MOTORCYCLE, JPN, VIN# Z50A-100001 TO Z50A-120087 REAR WHEEL Diagram
#
1
CHAIN, DRIVE This part replaces 40530-045-670.
405W3-045-505
Unavailable
1
CHAIN, DRIVE | (Optional). This part replaces 40530-045-811.
405W3-045-505
Unavailable
2
MASTER LINK (NOT AVAILABLE)
40531-045-010
Unavailable
4
SPROCKET, FINAL DRIVEN (34T) (NOT AVAILABLE) | Use up to Frame SN 106900
41201-045-670
Unavailable
4
SPROCKET, FINAL DRIVEN (35T) (NOT AVAILABLE) | Use from Frame SN 106901
41201-045-671
Unavailable
4
SPROCKET, FINAL DRIVEN (38T) (NOT AVAILABLE) | (Optional).
41201-045-811
Unavailable
5
BOLT, HEX. (8X25) | Use up to Frame SN 106604 This part replaces 41209-032-000.
92101-08025-0A
$1.74
5
BOLT, HEX. (8X25) | Use up to Frame SN 106604 This part replaces 92000-08024.
92101-08025-0A
$1.74
5
BOLT, HEX. (8X25) | Use up to Frame SN 106604 This part replaces 92000-08024-0A.
92101-08025-0A
$1.74
5
BOLT, HEX. (8X25) | Use up to Frame SN 106604 This part replaces 92000-08025.
92101-08025-0A
$1.74
5
BOLT, HEX. (8X25) | Use up to Frame SN 106604 This part replaces 92000-08025-0A.
92101-08025-0A
$1.74
5
BOLT, HEX. (8X25) | Use up to Frame SN 106604 This part replaces 92000-08026.
92101-08025-0A
$1.74
6
AXLE, FR. WHEEL | Use up to Frame SN 108295 This part replaces 42301-045-000.
44301-074-000
Unavailable
6
AXLE, FR. WHEEL This part replaces 42301-045-010.
44301-074-000
Unavailable
6
AXLE, FR. WHEEL (NOT AVAILABLE)
44301-074-000
Unavailable
7
COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)
42311-045-000
Unavailable
8
HUB, RR. WHEEL (NOT AVAILABLE)
42601-045-671
Unavailable
9
COLLAR, RR. AXLE DISTANCE | Use from Frame SN 100006
42620-045-020
Unavailable
10
RIM, R. WHEEL *NH35M* (CLOUD SILVER METALLIC) This part replaces 42701-045-670AU.
42701-045-671ZA
Unavailable
10
RIM, R. WHEEL *NH35M* (CLOUD SILVER METALLIC) This part replaces 42701-045-670ZC.
42701-045-671ZA
Unavailable
11
RIM, L. WHEEL *NH35M* (CLOUD SILVER METALLIC) This part replaces 42702-045-670AU.
42702-045-671ZA
Unavailable
11
RIM, L. WHEEL *NH35M* (CLOUD SILVER METALLIC) This part replaces 42702-045-670ZC.
42702-045-671ZA
Unavailable
12
CAM, RR. BRAKE (NOT AVAILABLE)
43141-045-000
Unavailable
13
ARM, FR. BRAKE This part replaces 43410-045-670.
45410-045-405
Unavailable
14
SPRING, RR. BRAKE ARM RETURN (NOT AVAILABLE)
43412-045-670
Unavailable
15
TIRE, WHEEL (3.50-8) (NITTO) (NOT AVAILABLE)
42711-130-672
Unavailable
15
TIRE, WHEEL (3.50-8) (NITTO) (NOT AVAILABLE) This part replaces 44711-045-671.
42711-130-672
Unavailable
16
TUBE (300/350-8) (NOT AVAILABLE)
08400-12010
Unavailable
16
TUBE, TIRE (3.50-8) (BS) This part replaces 42712-GC3-003.
44712-120-003
Unavailable
16
TUBE, TIRE (3.50-8) (BS)
44712-120-003
Unavailable
16
TUBE, TIRE (3.50-8) (BS) This part replaces 44712-120-006.
44712-120-003
Unavailable
17
PANEL, RR. BRAKE *CLEAR* (CLEAR) (NOT AVAILABLE) This part replaces 45100-045-020.
45100-045-020ZA
Unavailable
17
PANEL, RR. BRAKE *CLEAR* (CLEAR) (NOT AVAILABLE)
45100-045-020ZA
Unavailable
18
SHOE, BRAKE (SEE KIT P/N--END OF BLOCK) (N/A: USE P/N 451A0-001-670)
45120-001-010
Unavailable
21
BOLT, SPLIT WHEEL | Use from Frame SN 108296 This part replaces 90194-567-000.
90194-567-010
$3.08
21
BOLT, HEX. (8X16) | Use up to Frame SN 108295 This part replaces 92000-08016.
92101-08016-0A
$1.49
21
BOLT, HEX. (8X16) | Use up to Frame SN 108295 This part replaces 92000-08016-0A.
92101-08016-0A
$1.49
21
BOLT, HEX. (8X16) | Use up to Frame SN 108295 This part replaces 92200-08016-OA.
92101-08016-0A
$1.49
22
NUT, LOCK (12MM) (NOT AVAILABLE) | Use up to Frame SN 108295
90353-250-000
Unavailable
24
WASHER B, TONGUED | Use from Frame SN 106605 to 237607 This part replaces 90529-045-670.
94108-21000
$1.59
24
WASHER B, TONGUED | Use from Frame SN 106605 to 237607 This part replaces 90529-045-671.
94108-21000
$1.59
24
WASHER, TOOTHED | Use up to Frame SN 106604
90552-001-000
Unavailable
