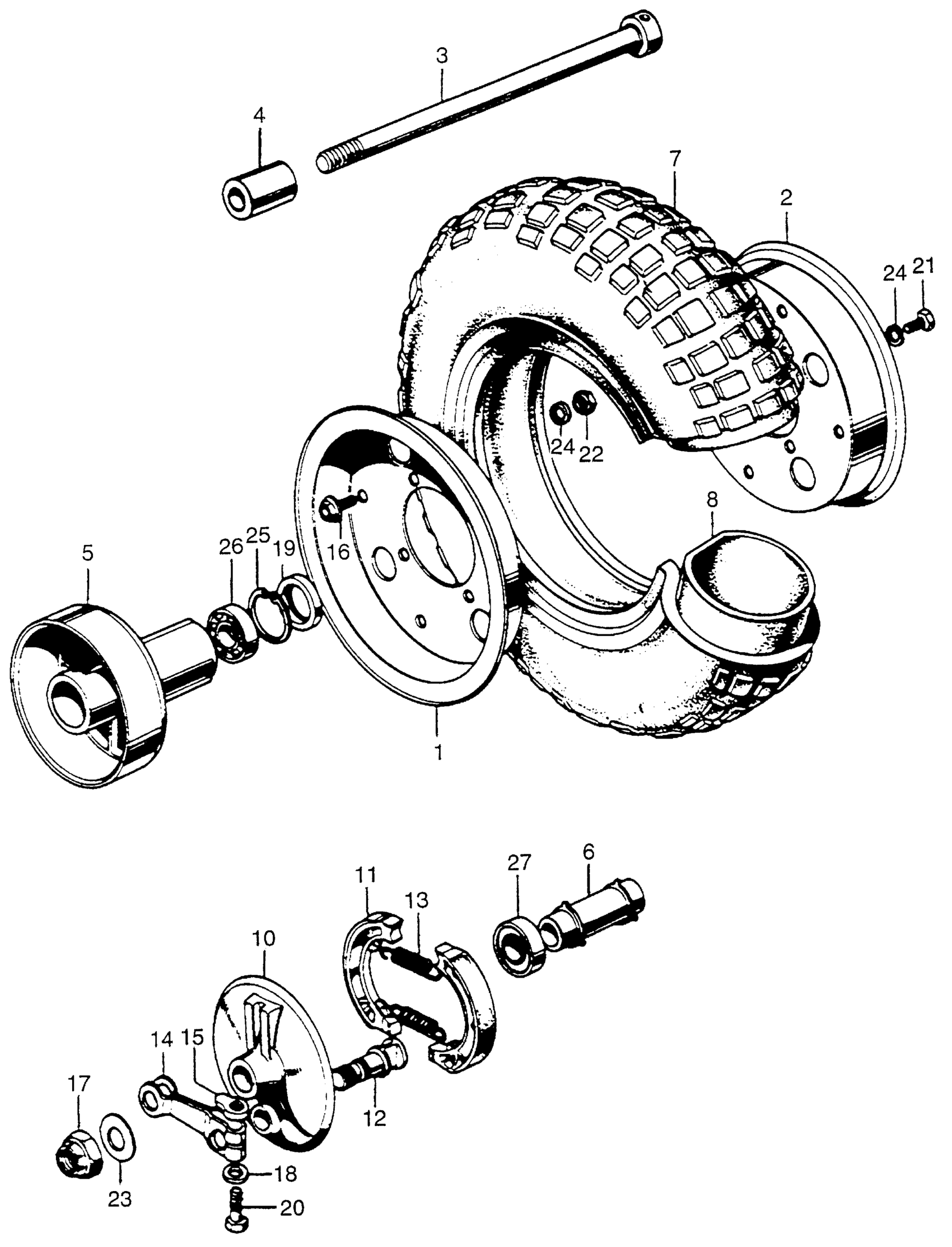

Honda Z50AA MOTORCYCLE, JPN, VIN# Z50A-100001 TO Z50A-120087 FRONT WHEEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (JB) This part replaces 06450-GAG-003.

06450-178-932

$22.34

NI

SHOE SET, BRAKE (JB) This part replaces 06450-001-405.

06450-178-932

$22.34

NI

SHOE SET, BRAKE (JB)

06450-178-932

$22.34

NI

SHOE SET, BRAKE (JB) This part replaces 451A0-001-670.

06450-178-932

$22.34

1

RIM, R. WHEEL *NH35M* (CLOUD SILVER METALLIC) This part replaces 42701-045-670AU.

42701-045-671ZA

Unavailable

1

RIM, R. WHEEL *NH35M* (CLOUD SILVER METALLIC) This part replaces 42701-045-670ZC.

42701-045-671ZA

Unavailable

2

RIM, L. WHEEL *NH35M* (CLOUD SILVER METALLIC) This part replaces 42702-045-670AU.

42702-045-671ZA

Unavailable

2

RIM, L. WHEEL *NH35M* (CLOUD SILVER METALLIC) This part replaces 42702-045-670ZC.

42702-045-671ZA

Unavailable

3

AXLE, FR. WHEEL | Use up to Frame SN 108295 This part replaces 44301-045-000.

44301-045-010

Unavailable

3

AXLE, FR. WHEEL

44301-045-010

Unavailable

4

COLLAR, FR. WHEEL SIDE

44311-045-670

$4.73

5

HUB, FR. WHEEL *CLEAR* (CLEAR) | Use from Frame SN 100006 This part replaces 44600-045-671.

44600-045-673ZC

Unavailable

5

HUB, FR. WHEEL *CLEAR* (CLEAR) | Use from Frame SN 100006 This part replaces 44600-045-672.

44600-045-673ZC

Unavailable

6

COLLAR, FR. AXLE DISTANCE (NOT AVAILABLE) | Use from Frame SN 100006

44620-045-020

Unavailable

7

TIRE, WHEEL (3.50-8) (NITTO) (NOT AVAILABLE)

42711-130-672

Unavailable

7

TIRE, WHEEL (3.50-8) (NITTO) (NOT AVAILABLE) This part replaces 44711-045-671.

42711-130-672

Unavailable

8

TUBE (300/350-8) (NOT AVAILABLE)

08400-12010

Unavailable

8

TUBE, TIRE (3.50-8) (BS) This part replaces 42712-GC3-003.

44712-120-003

Unavailable

8

TUBE, TIRE (3.00-8) (IRC)

42712-GC3-004

Unavailable

8

TUBE, TIRE (3.00-8) (IRC) This part replaces 44712-045-670.

42712-GC3-004

Unavailable

8

TUBE, TIRE (3.50-8) (BS)

44712-120-003

Unavailable

8

TUBE, TIRE (3.50-8) (BS) This part replaces 44712-120-006.

44712-120-003

Unavailable

10

PANEL, RR. BRAKE *CLEAR* (CLEAR) (NOT AVAILABLE) This part replaces 45100-045-020.

45100-045-020ZA

Unavailable

10

PANEL, RR. BRAKE *CLEAR* (CLEAR) (NOT AVAILABLE)

45100-045-020ZA

Unavailable

11

SHOE, BRAKE (SEE KIT P/N--END OF BLOCK) (N/A: USE P/N 451A0-001-670)

45120-001-010

Unavailable

12

CAM, RR. BRAKE (NOT AVAILABLE)

45131-045-000

Unavailable

13

SPRING, BRAKE SHOE

45133-028-000

$1.86

14

ARM, FR. BRAKE This part replaces 45410-045-670.

45410-045-405

Unavailable

15

NUT, FR. BRAKE ARM SETTING

45436-001-000

$1.71

16

BOLT, SPLIT WHEEL | Use from Frame SN 108296 This part replaces 90194-567-000.

90194-567-010

$2.45

16

BOLT, SPLIT WHEEL | Use from Frame SN 108296

90194-567-010

$2.45

16

BOLT, SPLIT WHEEL

90194-567-010

$2.45

16

BOLT, HEX. (8X16) | Use up to Frame SN 108295 This part replaces 92000-08016.

92101-08016-0A

$1.35

16

BOLT, HEX. (8X16) | Use up to Frame SN 108295 This part replaces 92000-08016-0A.

92101-08016-0A

$1.35

16

BOLT, HEX. (8X16) | Use up to Frame SN 108295

92101-08016-0A

$1.35

16

BOLT, HEX. (8X16) | Use up to Frame SN 108295 This part replaces 92200-08016-OA.

92101-08016-0A

$1.35

17

NUT, SELF-LOCK (12MM) | Use from Frame SN 108296

90353-045-000

$5.58

17

NUT, LOCK (12MM) (NOT AVAILABLE) | Use up to Frame SN 108295

90353-250-000

Unavailable

18

WASHER, RR. BRAKE ARM

90525-001-000

$1.78

19

OIL SEAL (21X35X5.5) This part replaces 91252-001-020.

91252-001-023

$5.71

19

OIL SEAL (21X35X5.5)

91252-001-023

$5.71

20

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.48

20

BOLT, HEX. (6X25)

92101-06025-0A

$1.48

21

BOLT, HEX. (8X16) This part replaces 92000-08016.

92101-08016-0A

$1.35

21

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.35

21

BOLT, HEX. (8X16)

92101-08016-0A

$1.35

21

BOLT, HEX. (8X16) This part replaces 92200-08016-OA.

92101-08016-0A

$1.35

22

NUT, HEX. (8MM)

94030-08000

$0.97

23

WASHER, PLAIN (12MM)

94101-12000

$1.12

24

WASHER, SPRING (8MM)

94111-08000

$0.90

25

CIRCLIP (INNER) (32MM)

94520-32000

$1.61

26

BEARING, RADIAL BALL (6201) This part replaces 96100-62010.

96100-62010-00

$7.52

26

BEARING, RADIAL BALL (6201)

96100-62010-00

$7.52

27

BEARING, RADIAL BALL (6201U) This part replaces 96140-62010.

96140-62010-00

$8.65

27

BEARING, RADIAL BALL (6201U)

96140-62010-00

$8.65
