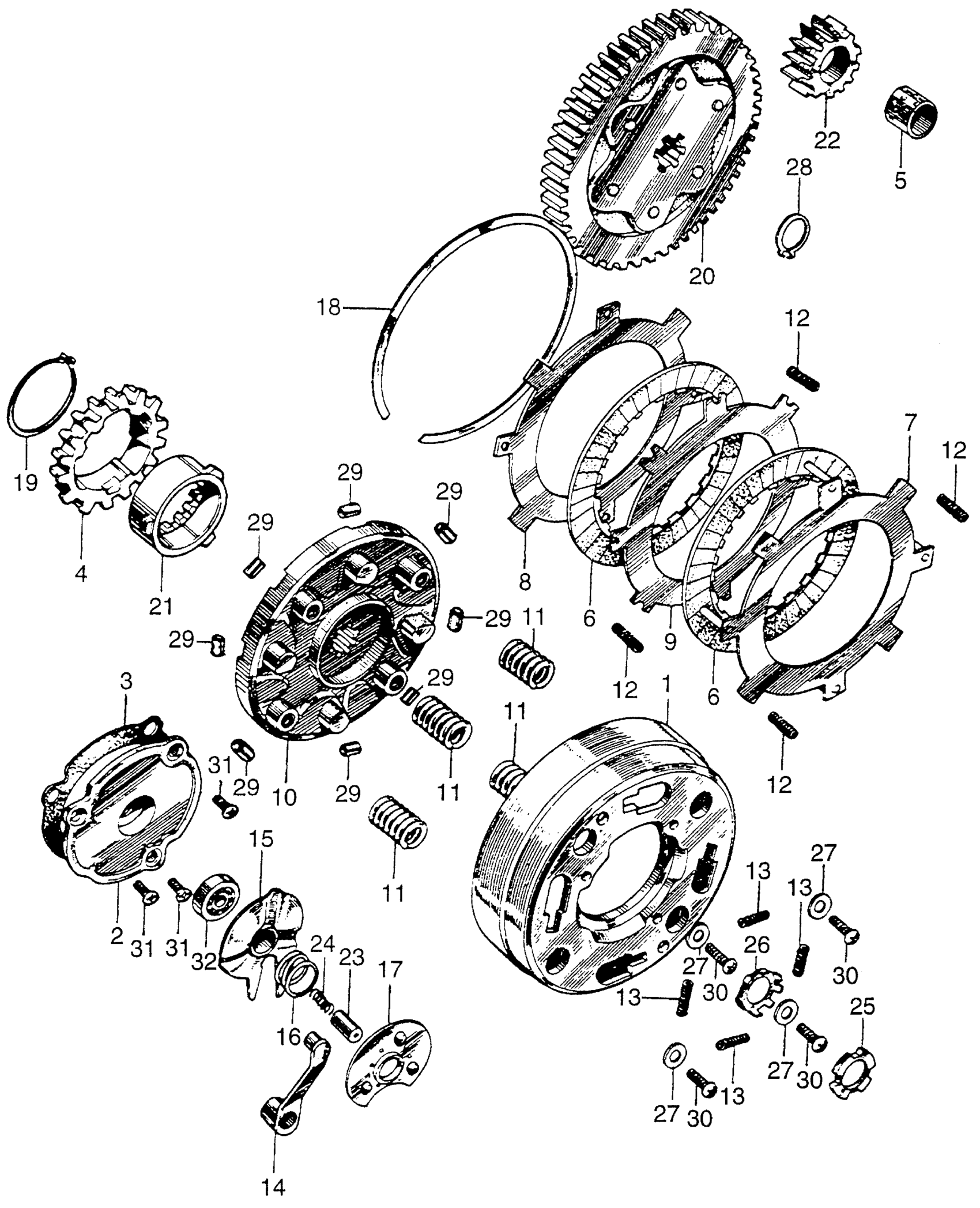

Honda Z50AA MOTORCYCLE, JPN, VIN# Z50A-100001 TO Z50A-120087 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER) | Use up to Engine SN 108295 This part replaces 22101-040-010.

22101-040-030

Unavailable

1

CLUTCH (OUTER)

22101-040-030

Unavailable

2

COVER, CLUTCH (OUTER)

22111-040-000

Unavailable

3

GASKET, CLUTCH COVER (OUTER) This part replaces 22119-040-000.

22119-040-010

$3.40

3

GASKET, CLUTCH COVER (OUTER)

22119-040-010

$3.40

4

CENTER, CLUTCH (17T) (NOT AVAILABLE) | Use up to Engine SN 103192

22120-040-010

Unavailable

4

CENTER, CLUTCH (17T) (NOT AVAILABLE) | Use from Engine SN 103193 to 217925

22120-040-020

Unavailable

5

GUIDE, CLUTCH CENTER This part replaces 22131-035-020.

22131-035-030

$20.39

5

GUIDE, CLUTCH CENTER

22131-035-030

$20.39

6

DISK, CLUTCH FRICTION This part replaces 22201-040-000.

22201-165-951

$14.21

6

DISK, CLUTCH FRICTION This part replaces 22201-087-306.

22201-165-951

$14.21

6

DISK, CLUTCH FRICTION

22201-165-951

$14.21

7

PLATE A, CLUTCH

22310-GB0-910

$14.59

7

PLATE A, CLUTCH This part replaces 22310-041-010.

22310-GB0-910

$14.59

8

PLATE B, CLUTCH This part replaces 22321-041-000.

22321-046-020

$9.83

8

PLATE B, CLUTCH

22321-046-020

$9.83

9

PLATE C, CLUTCH

22331-041-000

Unavailable

10

PLATE, DRIVE (NOT AVAILABLE) | Use up to Engine SN 108295 This part replaces 22351-040-060.

22351-040-070

Unavailable

10

PLATE, DRIVE (NOT AVAILABLE) | Use up to Engine SN 108295

22351-040-070

Unavailable

11

SPRING, CLUTCH

22401-040-010

Unavailable

12

SPRING, CLUTCH FREE

22411-041-000

$2.13

13

SPRING, CLUTCH DAMPER

22421-040-000

$2.03

14

LEVER, CLUTCH

22811-040-020

$32.34

15

PLATE, CLUTCH CAM This part replaces 22820-046-000.

22820-046-010

Unavailable

15

PLATE, CLUTCH CAM

22820-046-010

Unavailable

16

SPRING, CAM PLATE SIDE

22825-046-000

$2.08

17

RETAINER, CLUTCH BALL This part replaces 22860-041-000.

22860-046-000

$7.04

17

RETAINER, CLUTCH BALL

22860-046-000

$7.04

18

SET-RING (102MM)

22901-001-000

$4.02

19

SET-RING (45MM) (NOT AVAILABLE) | Use up to Engine SN 103192

22901-040-000

Unavailable

19

CIRCLIP (45MM) (NOT AVAILABLE) | Use from Engine SN 103193

90602-041-000

Unavailable

20

GEAR, PRIMARY DRIVEN (67T)

23110-GCF-670

$123.47

20

GEAR, PRIMARY DRIVEN (67T) This part replaces 23110-036-000.

23110-GCF-670

$123.47

20

GEAR, PRIMARY DRIVEN (67T) This part replaces 23110-036-010.

23110-GCF-670

$123.47

20

GEAR, PRIMARY DRIVEN (67T) This part replaces 23110-087-000.

23110-GCF-670

$123.47

20

GEAR, PRIMARY DRIVEN (67T) This part replaces 23110-098-740.

23110-GCF-670

$123.47

21

OUTER, DRIVE GEAR (18T) (NOT AVAILABLE) | Use up to Engine SN 103192

23112-041-010

Unavailable

21

OUTER, DRIVE GEAR (18T) (NOT AVAILABLE) | Use from Engine SN 103193 to 217925

23112-041-030

Unavailable

22

GEAR, PRIMARY DRIVE (18T) | Use up to Engine SN 217925

23120-036-010

Unavailable

23

THROUGH, OIL This part replaces 25551-040-007.

25551-GEL-A80

$6.02

23

THROUGH, OIL This part replaces 25551-918-000.

25551-GEL-A80

$6.02

23

THROUGH, OIL This part replaces 25551-918-007.

25551-GEL-A80

$6.02

24

SPRING, OIL THROUGH

25555-065-000

$1.63

25

NUT, LOCK (14MM)

90231-KY4-900

$4.22

25

NUT, LOCK (14MM) This part replaces 90231-041-000.

90231-KY4-900

$4.22

26

WASHER, LOCK (14MM) (NOT AVAILABLE)

90431-001-000

Unavailable

27

WASHER, STOPPER This part replaces 90483-040-000.

90483-041-000

$1.92

27

WASHER, STOPPER

90483-041-000

$1.92

28

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

29

ROLLER (8X10) This part replaces 91102-041-000.

91102-041-007

Unavailable

29

ROLLER (8X10)

91102-041-007

Unavailable

30

SCREW, PAN (5X8) | Use up to Engine SN 108295 This part replaces 90050-371-980.

93500-05008-0A

$1.49

30

SCREW, PAN (5X8) | Use up to Engine SN 108295 This part replaces 93500-05008.

93500-05008-0A

$1.49

30

SCREW, PAN (5X8) | Use up to Engine SN 108295

93500-05008-0A

$1.49

30

SCREW, PAN (5X8)

93500-05008-0A

$1.49

30

SCREW, PAN (5X8) | Use up to Engine SN 108295 This part replaces 93500-05008-1A.

93500-05008-0A

$1.49

30

SCREW, PAN (5X8) | Use up to Engine SN 108295 This part replaces 93506-05008-0A.

93500-05008-0A

$1.49

31

SCREW, FLAT (5X10) (NOT AVAILABLE) | Use up to Engine SN 108295

93600-05010

Unavailable

31

SCREW, FLAT (5X10) | Use from Engine SN 108296

93600-05010-0A

$1.49

32

BEARING, RADIAL BALL (6000) This part replaces 96100-60000.

96100-60000-00

$8.13

32

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
