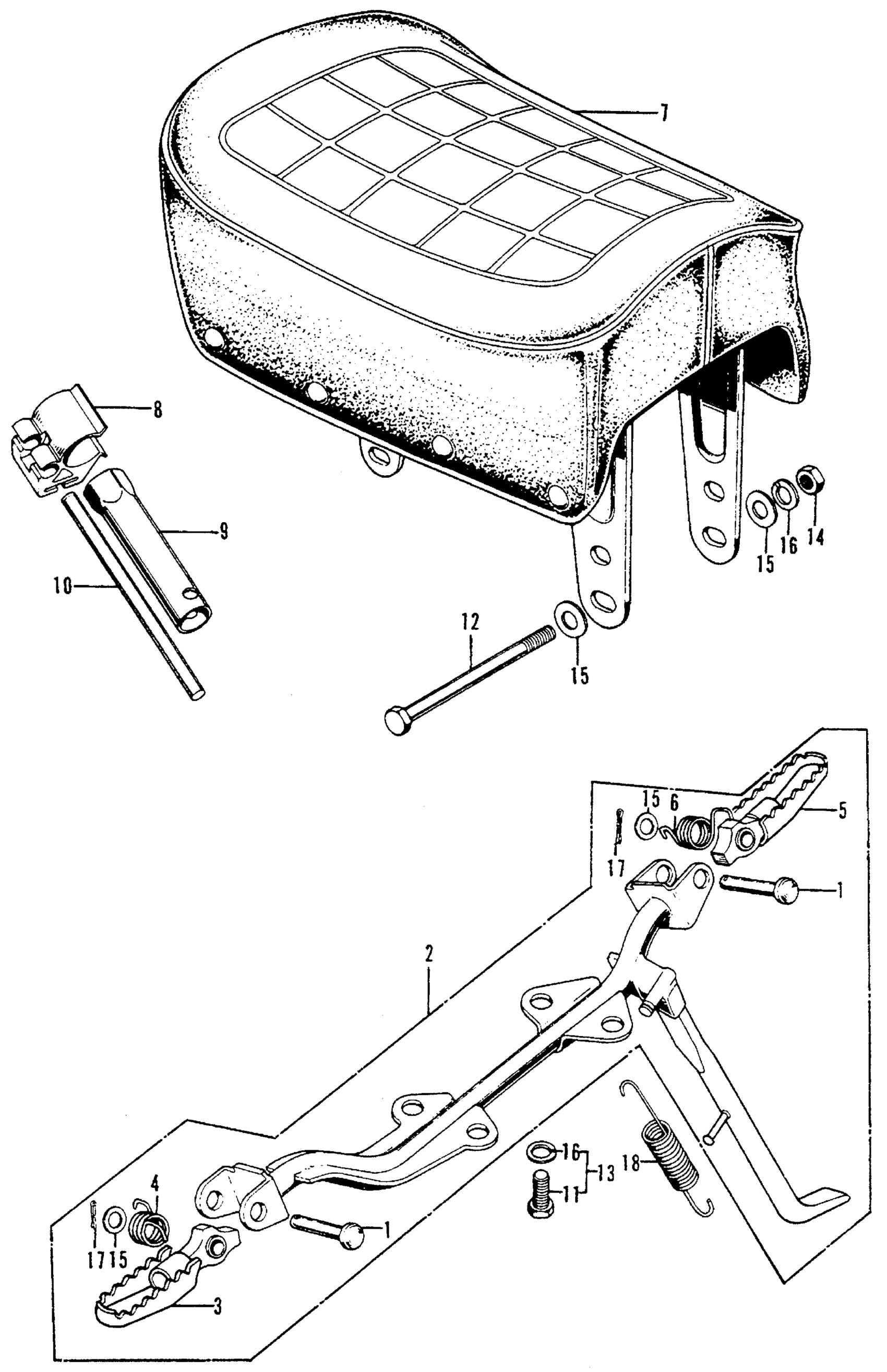

Honda Z50AA (78) MINI TRAIL 50, JPN, VIN# Z50A-6300003 SEAT + STEP Diagram

#

Description
Price

1

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

1

PIN, STEP BAR JOINT

50603-033-010

$3.30

2

BAR, STEP (NOT AVAILABLE)

50610-130-670

Unavailable

3

ARM, R. STEP

50616-130-670

Unavailable

4

SPRING, R. STEP RETURN

50617-MM9-000

$4.53

4

SPRING, R. STEP RETURN This part replaces 50617-329-000.

50617-MM9-000

$4.53

5

STEP, L. (NOT AVAILABLE)

50642-130-670

Unavailable

6

SPRING, L. STEP RETURN

50644-MM9-000

$4.53

6

SPRING, L. STEP RETURN This part replaces 50644-329-000.

50644-MM9-000

$4.53

7

SEAT ASSY. *NH1L* (BLACK)

77100-130-000A

Unavailable

8

HOLDER, TOOL (NOT AVAILABLE)

83520-120-000

Unavailable

9

WRENCH, SPARK PLUG

89216-130-690

$7.16

10

BAR, HANDLE

89217-045-670

$4.94

12

This part replaces 92000-08100-0A.

92101-08100-0A

Unavailable

13

BOLT-WASHER (8X20)

93402-08020-00

$1.92

13

BOLT-WASHER (8X20) This part replaces 93412-08020-00.

93402-08020-00

$1.92

13

BOLT-WASHER (8X20) This part replaces 93482-08020-00.

93402-08020-00

$1.92

14

NUT, HEX. (8MM)

94001-08000-0S

$1.49

15

WASHER, PLAIN (8MM)

94101-08000

$1.49

16

WASHER, SPRING (8MM)

94111-08000

$1.49

17

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

17

PIN, COTTER (1.6X25)

94201-16250

$1.49

18

SPRING A, SIDE STAND

95014-72102

$2.84
