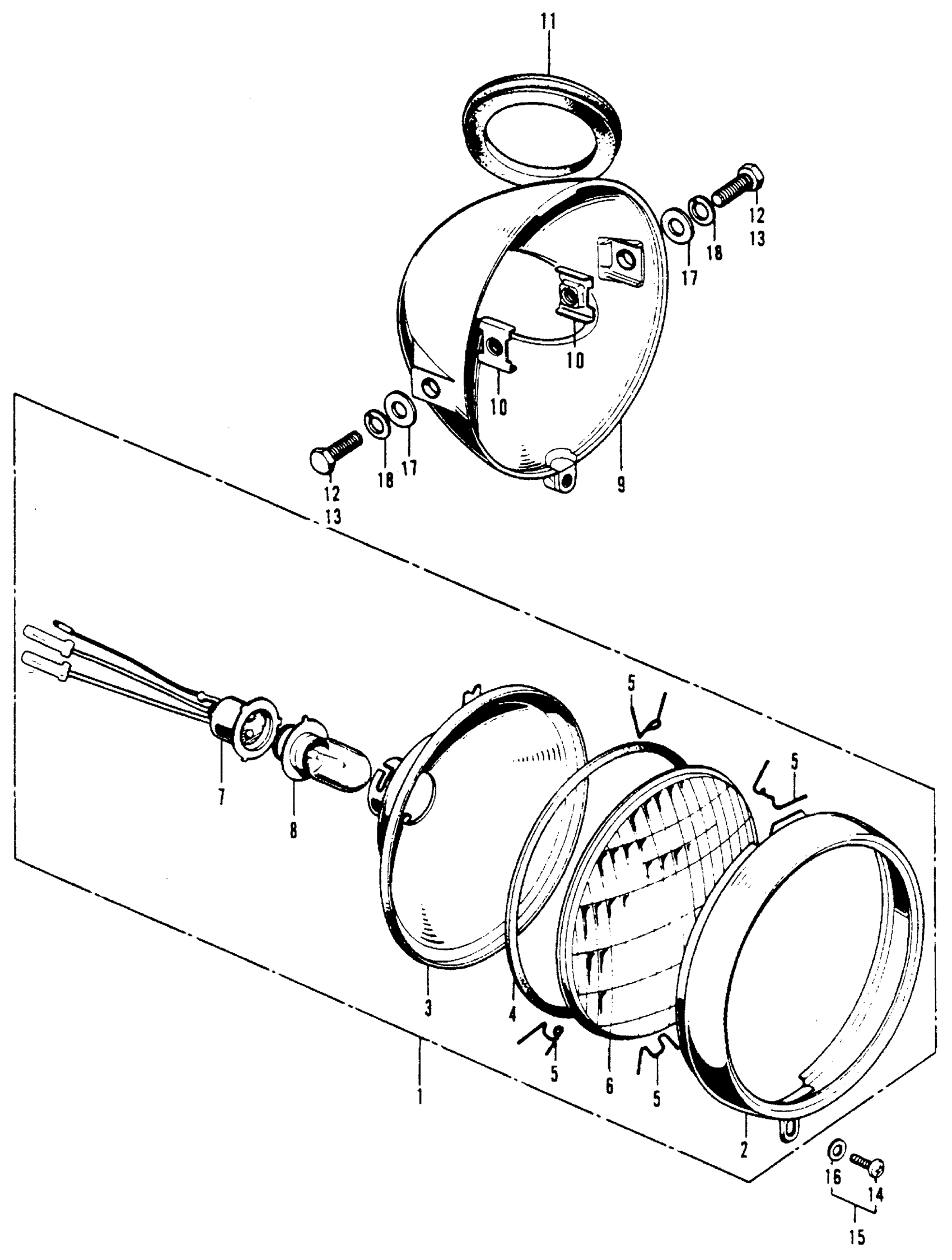

Honda Z50AA (78) MINI TRAIL 50, JPN, VIN# Z50A-6300003 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY. | Use up to Frame SN 6304952

33100-051-690

$63.84

1

HEADLIGHT ASSY. (NOT AVAILABLE) | Use from Frame SN 6304953

33100-130-741

Unavailable

2

RIM, HEADLIGHT

33101-028-013

Unavailable

3

REFLECTOR, HEADLIGHT

33104-028-003

Unavailable

4

GASKET, HEADLIGHT LENS

33105-028-003

Unavailable

5

SPRING, UNIT HOLDER (STANLEY)

33108-028-013

$2.34

6

LENS, HEADLIGHT

33121-028-013

Unavailable

7

SOCKET, HEADLIGHT | Use up to Frame SN 6304952

33130-GK4-631

$13.36

7

SOCKET, HEADLIGHT | Use up to Frame SN 6304952 This part replaces 33130-051-690.

33130-GK4-631

$13.36

7

SOCKET, HEADLIGHT (NOT AVAILABLE) | Use from Frame SN 6304953

33130-130-741

Unavailable

8

BULB, HEADLIGHT (6V15/15W) (STANLEY) This part replaces 34901-001-023.

34901-001-025

$19.11

8

BULB, HEADLIGHT (6V15/15W) (STANLEY)

34901-001-025

$19.11

8

BULB, HEADLIGHT (6V15/15W) (STANLEY) This part replaces 34901-001-671.

34901-001-025

$19.11

8

BULB, HEADLIGHT (6V15/15W) (STANLEY) This part replaces 34901-011-671.

34901-001-025

$19.11

9

CASE, HEADLIGHT *NH1* (BLACK) This part replaces 61301-115-000B.

61301-115-010ZJ

$59.17

9

CASE, HEADLIGHT *NH1* (BLACK)

61301-115-010ZJ

$59.17

10

NUT, HEADLIGHT CASE

61303-105-000

$3.81

11

GROMMET, HEADLIGHT CASE (NOT AVAILABLE)

61304-115-000

Unavailable

13

BOLT, HEX. (8X25) This part replaces 92000-08025-0B.

92101-08025-0B

$1.79

13

BOLT, HEX. (8X25)

92101-08025-0B

$1.79

15

SCREW-WASHER (5X12)

93891-05012-00

$1.49

17

WASHER, PLAIN (8MM)

94101-08000

$1.49

18

WASHER, SPRING (8MM)

94111-08000

$1.49
