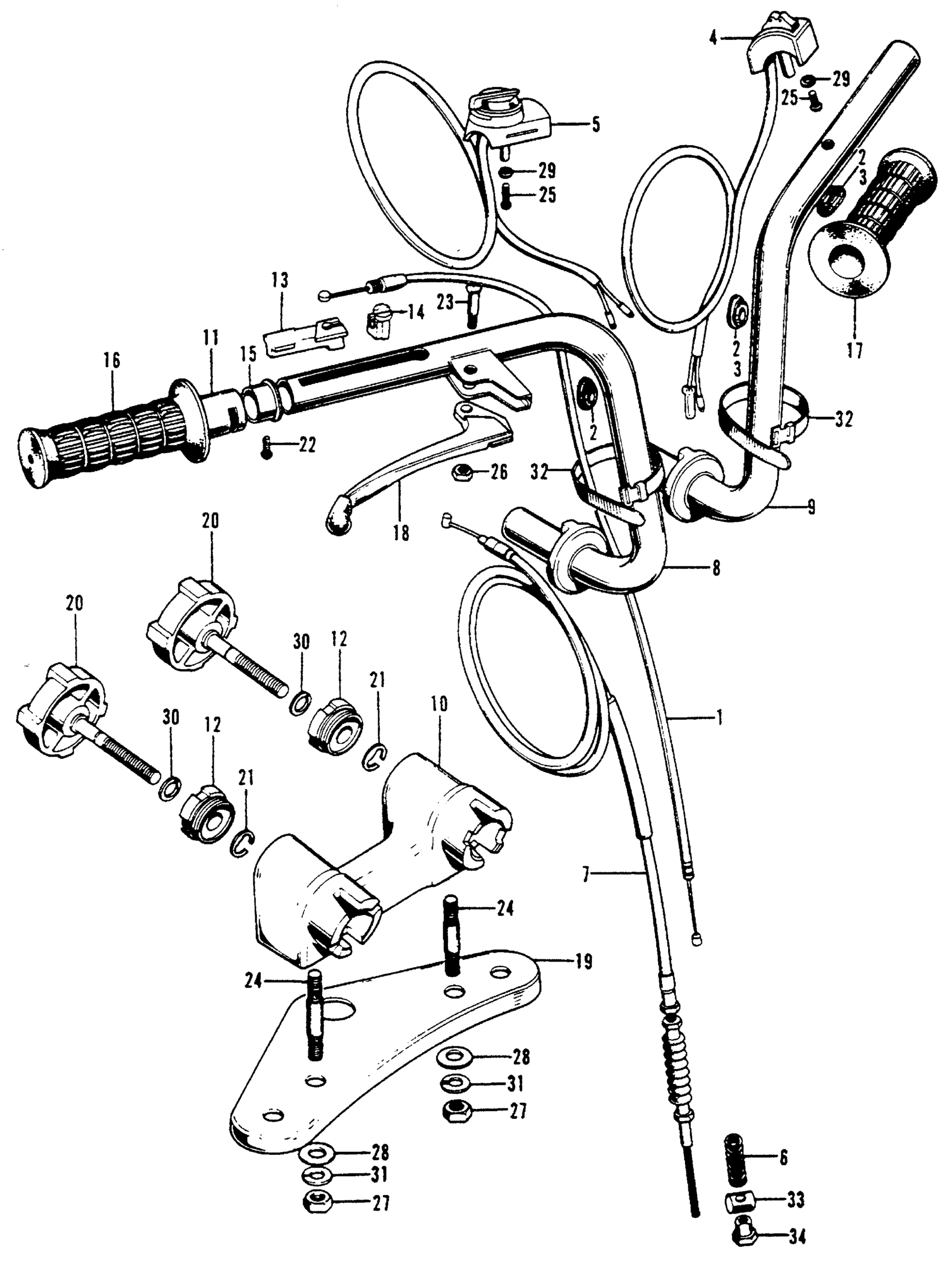

Honda Z50AA (78) MINI TRAIL 50, JPN, VIN# Z50A-6300003 HANDLEBAR + TOP BRIDGE + CABLES Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-130-640

Unavailable

2

GROMMET, THROTTLE CABLE | Use up to Frame SN 6302502

17911-023-000

$4.12

2

GROMMET, THROTTLE CABLE | Use from Frame SN 6302503

17911-023-000

$4.12

3

GROMMET, THROTTLE CABLE | Use from Frame SN 6302503

17911-023-000

$4.12

3

GROMMET, THROTTLE CABLE | Use from Frame SN 6302503 This part replaces 32983-126-000.

17911-023-000

$4.12

4

SWITCH ASSY., LIGHTING (NOT AVAILABLE)

35250-130-720

Unavailable

5

SWITCH ASSY., STOP (NOT AVAILABLE)

35300-120-673

Unavailable

6

SPRING, FR. BRAKE ARM

45437-001-000

$3.50

7

CABLE, FR. BRAKE

45450-130-640

Unavailable

8

HANDLEBAR, R.

53110-130-690

Unavailable

9

HANDLEBAR, L.

53120-130-690

Unavailable

10

HOLDER, HANDLEBAR (NOT AVAILABLE)

53131-130-670

Unavailable

11

PIPE, THROTTLE GRIP

53141-098-000

$17.71

12

NUT, HANDLE HOLDER

53143-045-000

Unavailable

13

HINGE, THROTTLE CABLE

53161-044-000

$8.88

14

HOLDER, THROTTLE CABLE (OUTER)

53162-098-010

$6.30

15

STOPPER, THROTTLE GRIP

53163-044-010

Unavailable

16

GRIP, R. HANDLEBAR

53165-120-000

$16.86

17

GRIP, L. HANDLEBAR

53166-120-000

$16.86

18

LEVER, R. HANDLEBAR

53175-045-670

Unavailable

19

BRIDGE, FORK TOP *A1* (SEMI GLAZED BLACK) (NOT AVAILABLE)

53231-120-000SG

Unavailable

20

KNOB, HANDLE HOLDER

53741-120-000

Unavailable

21

RING, KNOB STOPPER

53746-045-010

Unavailable

22

SCREW, THROTTLE GRIP MOUNT This part replaces 90101-063-000.

90101-063-505

$5.04

22

SCREW, THROTTLE GRIP MOUNT

90101-063-505

$5.04

23

SCREW, L. HANDLEBAR LEVER PIVOT This part replaces 90114-063-000.

90116-GF8-000

$3.58

23

SCREW, L. HANDLEBAR LEVER PIVOT

90116-GF8-000

$3.58

24

BOLT, STUD (10X40) This part replaces 92715-10040.

92715-10040-0B

Unavailable

24

BOLT, STUD (10X40)

92715-10040-0B

Unavailable

25

SCREW, PAN (3X12)

93500-03012-0A

$1.49

26

NUT, HEX. (5MM)

94001-05000-0S

$2.74

27

NUT, HEX. (10MM)

94030-10000

$1.49

28

WASHER, PLAIN (10MM)

94101-10000

$1.49

29

WASHER, SPRING (3MM)

94111-03000

$1.49

30

WASHER, SPRING (8MM)

94111-08000

$1.49

31

WASHER, SPRING (8MM)

94111-10000

$1.49

32

BAND B1, CABLE

95014-62100

$1.64

33

JOINT, BRAKE ARM

95015-32001

$1.49

34

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83
