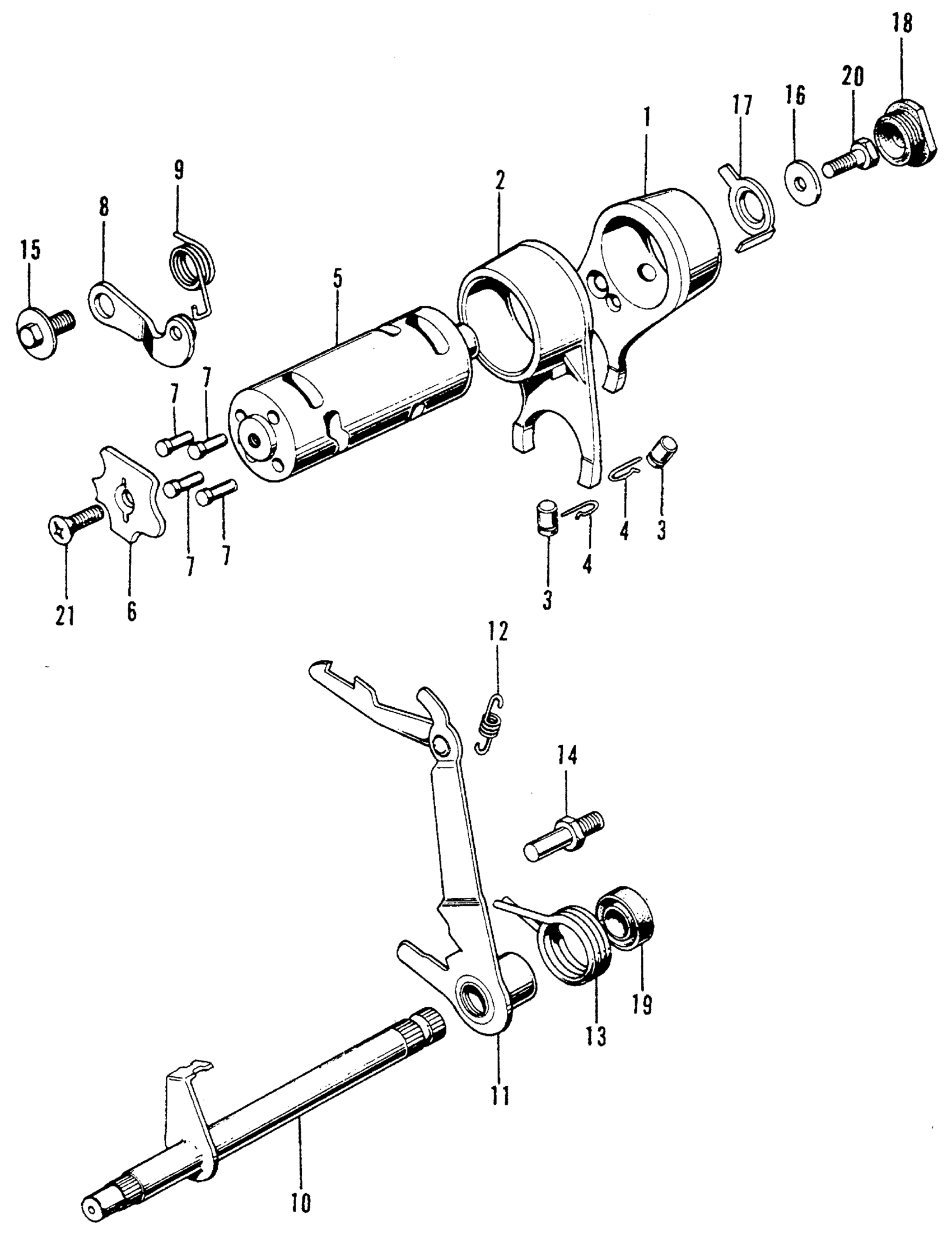

Honda Z50AA (78) MINI TRAIL 50, JPN, VIN# Z50A-6300003 GEARSHIFT + SPINDLE Diagram

#

Description
Price

1

FORK, L. GEARSHIFT This part replaces 24211-087-000.

24211-087-010

$70.77

1

FORK, L. GEARSHIFT

24211-087-010

$70.77

2

FORK, R. GEARSHIFT This part replaces 24221-041-000.

24221-041-010

$84.39

2

FORK, R. GEARSHIFT

24221-041-010

$84.39

3

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-028-010.

24261-121-742

$2.33

3

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-740.

24261-121-742

$2.33

3

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-741.

24261-121-742

$2.33

4

CLIP, GEARSHIFT FORK GUIDE

24263-028-000

$2.66

5

DRUM, GEARSHIFT This part replaces 24301-045-670.

24301-045-673

Unavailable

5

DRUM, GEARSHIFT This part replaces 24301-045-671.

24301-045-673

Unavailable

5

DRUM, GEARSHIFT This part replaces 24301-045-672.

24301-045-673

Unavailable

5

DRUM, GEARSHIFT

24301-045-673

Unavailable

6

PLATE, GEARSHIFT DRUM STOPPER (NOT AVAILABLE) | Use up to Engine SN 6323253

24411-041-020

Unavailable

6

PLATE, GEARSHIFT DRUM STOPPER (NOT AVAILABLE) | Use from Engine SN 6323254 This part replaces 24411-041-030.

24411-041-040

Unavailable

7

PIN, GEARSHIFT DRUM

24421-041-000

$2.07

8

STOPPER, GEARSHIFT DRUM

24430-041-010

Unavailable

9

SPRING, GEARSHIFT DRUM STOPPER This part replaces 24435-GB2-000.

24435-GB2-710

Unavailable

9

SPRING, GEARSHIFT DRUM STOPPER

24435-GB2-710

Unavailable

9

SPRING, GEARSHIFT DRUM STOPPER This part replaces 24435-040-000.

24435-GB2-710

Unavailable

10

SPINDLE, GEARSHIFT

24610-098-730

$58.95

11

ARM, GEARSHIFT This part replaces 24630-086-000.

24630-086-030

Unavailable

11

ARM, GEARSHIFT This part replaces 24630-086-010.

24630-086-030

Unavailable

11

ARM, GEARSHIFT This part replaces 24630-086-020.

24630-086-030

Unavailable

12

SPRING, GEARSHIFT ARM

24641-041-000

$2.90

13

SPRING, GEARSHIFT RETURN

24651-041-000

$5.92

14

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

15

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

15

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

16

WASHER, GEARSHIFT DRUM SIDE

90417-041-000

$2.19

17

WASHER (13.2MM)

90484-045-010

$4.00

18

PLUG, RUBBER (19MM)

90801-035-000

$2.92

19

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91203-001-000.

91208-KB4-671

$4.06

19

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-000.

91208-KB4-671

$4.06

19

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-003.

91208-KB4-671

$4.06

19

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-121-000.

91208-KB4-671

$4.06

19

OIL SEAL (11.6X23X10) (ARAI)

91208-KB4-671

$4.06

19

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91203-001-020.

91208-KB4-671

$4.06

19

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-121-005.

91208-KB4-671

$4.06

20

BOLT, HEX. (6X16) | Use up to Engine SN 6323253 This part replaces 92000-06016.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) | Use from Engine SN 6323254 This part replaces 92000-06016.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) | Use up to Engine SN 6323253 This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) | Use from Engine SN 6323254 This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) | Use up to Engine SN 6323253 This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) | Use from Engine SN 6323254 This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) | Use up to Engine SN 6323253 This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) | Use from Engine SN 6323254 This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) | Use up to Engine SN 6323253

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) | Use from Engine SN 6323254

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) | Use up to Engine SN 6323253 This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) | Use from Engine SN 6323254 This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

21

SCREW, OVAL (6X20) | Use up to Engine SN 6323253 This part replaces 93700-06020.

93700-06020-0A

$1.49

21

SCREW, OVAL (6X20) | Use up to Engine SN 6323253

93700-06020-0A

$1.49
