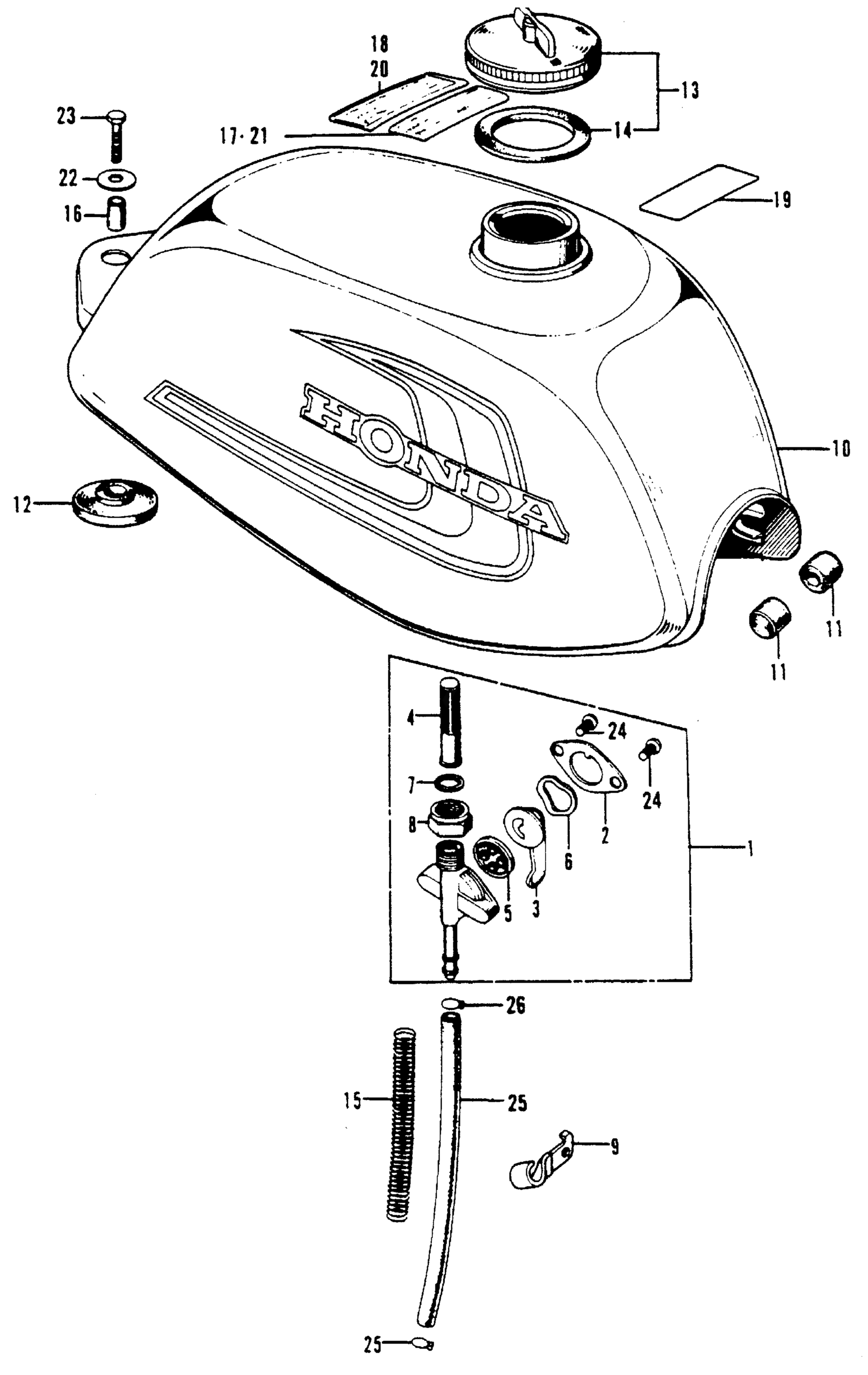

Honda Z50AA (78) MINI TRAIL 50, JPN, VIN# Z50A-6300003 FUEL TANK + FUEL LEVER Diagram

#

Description
Price

1

PETCOCK ASSY.

16950-045-005

$38.67

2

COVER, PETCOCK (NOT AVAILABLE)

16952-081-005

Unavailable

3

LEVER, VALVE (NOT AVAILABLE)

16953-081-005

Unavailable

4

STRAINER, PETCOCK

16954-045-005

Unavailable

5

GASKET, VALVE This part replaces 16955-028-004.

16957-ZE1-812

$3.08

5

GASKET, VALVE

16957-ZE1-812

$3.08

6

SPRING, PETCOCK LEVER This part replaces 16956-011-000.

16956-ZE1-811

$3.41

6

SPRING, PETCOCK LEVER This part replaces 16956-011-010.

16956-ZE1-811

$3.41

6

SPRING, PETCOCK LEVER This part replaces 16956-028-004.

16956-ZE1-811

$3.41

6

SPRING, PETCOCK LEVER This part replaces 16964-720-005.

16956-ZE1-811

$3.41

7

GASKET, FUEL STRAINER CUP

16958-081-015

Unavailable

8

NUT, TURN BUCKLE (NOT AVAILABLE)

16962-081-005

Unavailable

9

CLAMP, FUEL TUBE (NOT AVAILABLE)

17121-130-640

Unavailable

10

TANK ASSY., FUEL *R23* (TAHITIAN RED) (NOT AVAILABLE)

17500-130-760ZA

Unavailable

11

RUBBER, FR. FUEL TANK

17611-045-670

$6.80

12

RUBBER, FUEL TANK

17613-120-000

$5.19

13

CAP, FUEL FILLER This part replaces 17620-045-671.

17620-165-643

$42.47

13

CAP, FUEL FILLER This part replaces 17620-165-642.

17620-165-643

$42.47

13

CAP, FUEL FILLER This part replaces 17620-943-003.

17620-165-643

$42.47

13

CAP, FUEL FILLER This part replaces 17620-958-003.

17620-165-643

$42.47

13

CAP, FUEL FILLER This part replaces 17620-958-013.

17620-165-643

$42.47

14

GASKET This part replaces 17631-096-701.

17631-096-702

$2.47

14

GASKET This part replaces 17631-096-700.

17631-096-702

$2.47

15

PROTECTOR, OIL TUBE (NOT AVAILABLE)

55125-358-000

Unavailable

16

COLLAR B, RR. FENDER

80109-061-010

$3.15

18

LABEL, USE CAUTION *NH1* (BLACK) (NOT AVAILABLE)

87504-130-720ZA

Unavailable

19

LABEL, OPERATOR WARNING *NH1* (BLACK)

87510-147-670ZA

$2.92

21

MARK, DRIVE CAUTION (TYPEB) This part replaces 87560-375-680B.

87560-375-680ZE

Unavailable

21

MARK, DRIVE CAUTION (TYPEB) This part replaces 87560-375-680ZB.

87560-375-680ZE

Unavailable

21

MARK, DRIVE CAUTION (TYPEB)

87560-375-680ZE

Unavailable

22

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$1.49

22

WASHER, PLAIN (6MM)

94103-06800

$1.49

23

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

23

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

24

SCREW, OVAL (3X6)

93700-03006-0B

$1.49

25

BULK HOSE, FUEL (4.5X3000) (4.5X260)

95001-45003-60M

$36.67

26

CLIP, TUBE (B8)

95002-02080

$1.80
