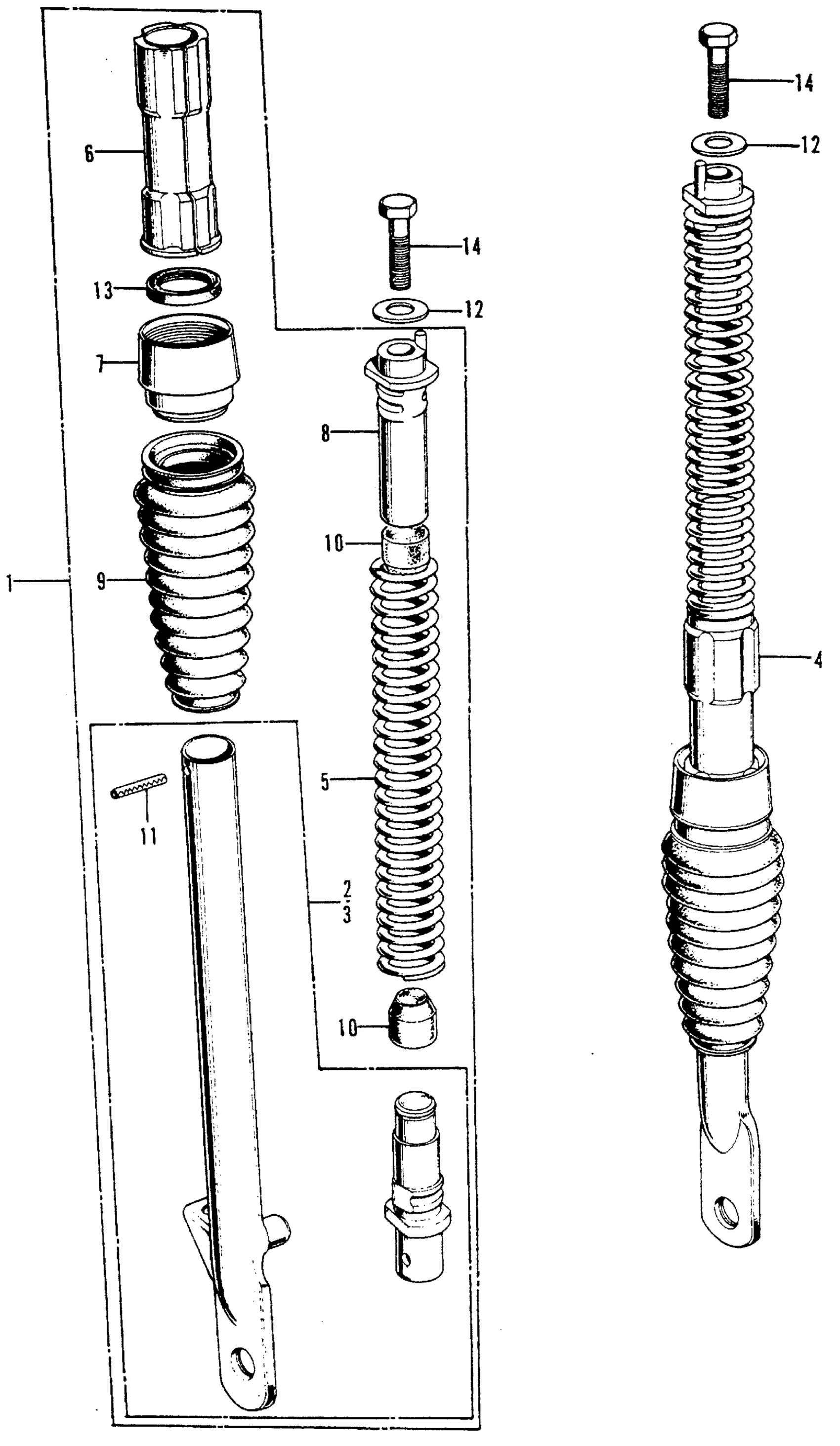

Honda Z50AA (78) MINI TRAIL 50, JPN, VIN# Z50A-6300003 FRONT SHOCK ABSORBER Diagram

#

Description
Price

1

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-120-000

Unavailable

2

PIPE, R. FR. FORK SLIDE HALF

51450-045-670

Unavailable

3

PIPE, L. FR. FORK SLIDE HALF

51460-045-670

Unavailable

4

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-120-000

Unavailable

5

SPRING, FR. FORK

51501-120-000

$25.30

6

GUIDE, FR. FORK PIPE

51502-045-670

$16.83

7

CAP, FORK PIPE GUIDE This part replaces 51503-064-010.

51503-098-000

Unavailable

7

CAP, FORK PIPE GUIDE

51503-098-000

Unavailable

8

HOLDER, SPRING (UPPER) (NOT AVAILABLE)

51504-120-000

Unavailable

9

BOOT, FR. FORK *NH1* (BLACK)

51505-064-010B

$26.44

10

RUBBER, FR. FORK STOPPER

51506-064-020

$2.92

11

PIN, SPRING

51526-064-000

Unavailable

12

WASHER, SPROCKET SETTING | Use up to Frame SN 6302502

90551-033-000

$1.74

12

WASHER, PLAIN (10.3MM) | Use from Frame SN 6302503

90527-230-000

$1.95

13

OIL SEAL (20.7X30X7)

90755-064-013

$6.34

14

BOLT, HEX. (10X32) | Use up to Frame SN 6302502 This part replaces 93000-10032-0A.

93101-10032-0A

Unavailable

14

BOLT, HEX. (10X32) | Use up to Frame SN 6302502 This part replaces 93100-10032-0A.

93101-10032-0A

Unavailable

14

BOLT, HEX. (10X32) | Use from Frame SN 6302503 This part replaces 93000-10032-0B.

93101-10032-0B

$2.92

14

BOLT, HEX. (10X32) | Use from Frame SN 6302503

93101-10032-0B

$2.92
