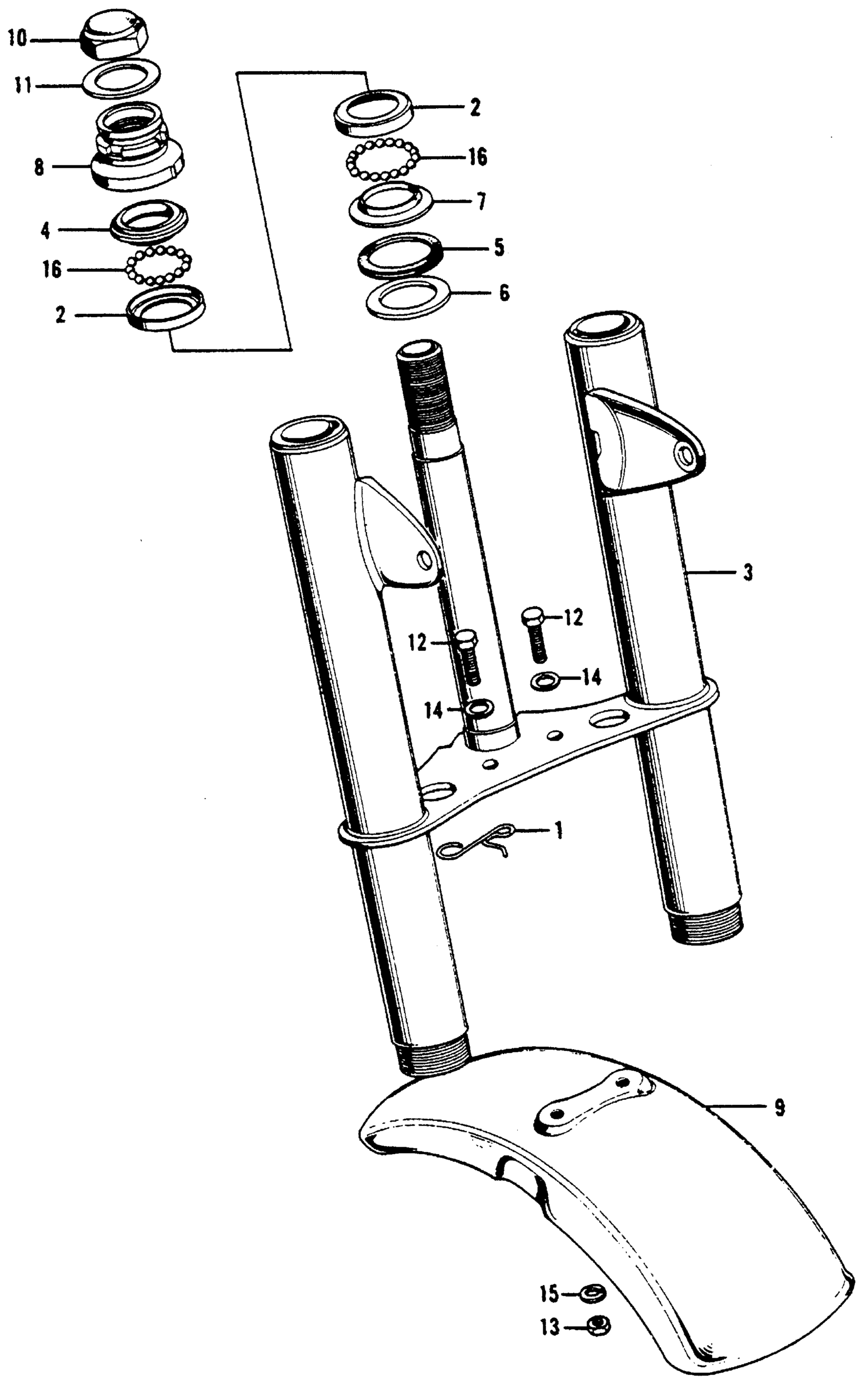

Honda Z50AA (78) MINI TRAIL 50, JPN, VIN# Z50A-6300003 FRONT FORK + FRONT FENDER Diagram

#

Description
Price

1

CLIP, FR. BRAKE CABLE (NOT AVAILABLE)

45465-130-760

Unavailable

2

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

2

RACE, STEERING TOP BALL

50301-041-010

$12.39

2

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$12.39

3

FORK, FR. *R23* (TAHITIAN RED) (NOT AVAILABLE)

51510-120-000EC

Unavailable

4

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$11.09

4

RACE, STEERING CONE (UPPER)

53211-028-010

$11.09

4

RACE, STEERING TOP CONE This part replaces 53211-028-305.

53211-028-010

$11.09

5

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

6

WASHER, DUST SEAL

53215-120-000

$2.85

7

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

7

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

7

RACE, STEERING CONE (LOWER) This part replaces 53212-937-000.

53212-030-010

$10.73

7

RACE, STEERING CONE (LOWER) This part replaces 53217-030-305.

53212-030-010

$10.73

8

THREAD, STEERING HEAD TOP

53220-098-670

$16.83

9

FENDER, FR. *R23* (TAHITIAN RED) (NOT AVAILABLE)

61100-130-760ZA

Unavailable

10

NUT, STEERING STEM This part replaces 90304-011-000.

90304-159-000

$7.02

10

NUT, STEERING STEM

90304-159-000

$7.02

10

NUT, STEERING STEM This part replaces 95020-11100.

90304-159-000

$7.02

11

WASHER, STEERING STEM | Use from Frame SN 6302503

90503-051-870

$2.84

12

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

12

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

13

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM)

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

14

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

14

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

14

WASHER, PLAIN (6MM)

94101-06800

$1.49

15

WASHER, SPRING (6MM)

94111-06000

$1.49

16

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
