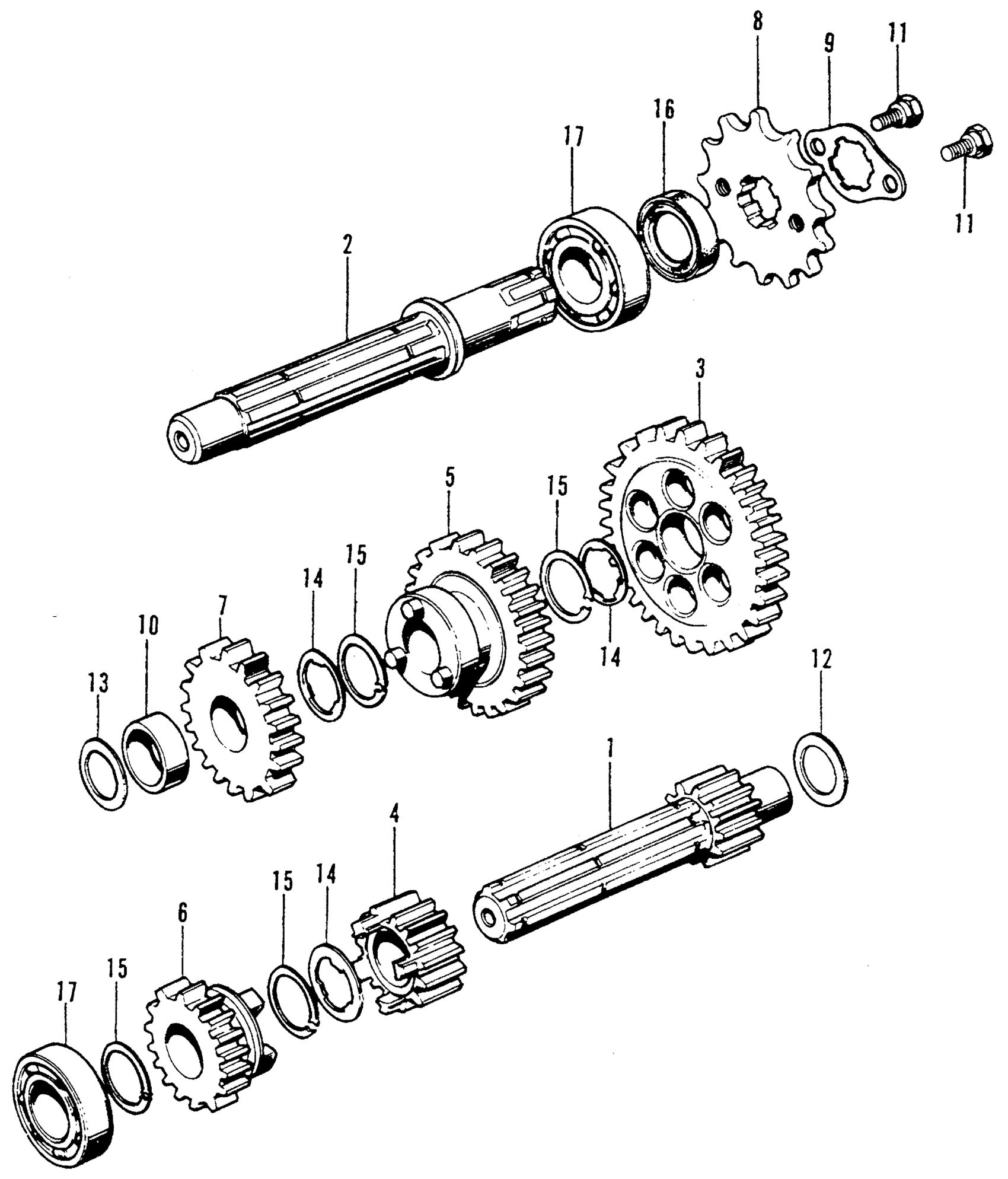

Honda Z50AA (77) MINI TRAIL 50, JPN, VIN# Z50A-6200003 TO Z50A-6219155 TRANSMISSION Diagram

MAINSHAFT, TRANSMISSION (11T)

23211-041-020

Unavailable

COUNTERSHAFT, TRANSMISSION This part replaces 23221-041-040.

23221-041-050

Unavailable

COUNTERSHAFT, TRANSMISSION

23221-041-050

Unavailable

GEAR, COUNTERSHAFT LOW (35T) (NOT AVAILABLE) This part replaces 23421-076-000.

23421-076-010

Unavailable

GEAR, COUNTERSHAFT LOW (35T)

23421-076-010

Unavailable

GEAR, MAINSHAFT SECOND (17T) (NOT AVAILABLE)

23431-041-040

Unavailable

GEAR, COUNTERSHAFT SECOND (31T) This part replaces 23441-041-060.

23441-086-010

Unavailable

GEAR, COUNTERSHAFT SECOND (31T) This part replaces 23441-086-000.

23441-086-010

Unavailable

GEAR, COUNTERSHAFT SECOND (31T)

23441-086-010

Unavailable

GEAR, MAINSHAFT TOP (21T) (NOT AVAILABLE)

23471-041-040

Unavailable

GEAR, COUNTERSHAFT THIRD (25T) This part replaces 23481-041-020.

23481-086-010

Unavailable

GEAR, COUNTERSHAFT THIRD (25T) This part replaces 23481-086-000.

23481-086-010

Unavailable

GEAR, COUNTERSHAFT THIRD (25T)

23481-086-010

Unavailable

SPROCKET, DRIVE (12T)

23800-045-671

Unavailable

PLATE, DRIVE SPROCKET FIXING

23802-045-670

$2.33

COLLAR, GEAR This part replaces 23911-041-010.

23911-041-020

Unavailable

COLLAR, GEAR

23911-041-020

Unavailable

BOLT, DRIVE SPROCKET FIXING

90084-041-000

$4.62

WASHER, THRUST (14MM)

90451-001-000

$3.67

WASHER (13.5MM)

90451-035-000

Unavailable

WASHER, SPLINE (17MM)

90461-035-000

$2.57

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

OIL SEAL (17X29X5) (NOK) This part replaces 91203-035-000.

91203-035-005

$8.91

OIL SEAL (17X29X5) (NOK)

91203-035-005

$8.91

BEARING, RADIAL BALL (6203) This part replaces 96100-62030.

96100-62030-00

$8.70

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70
