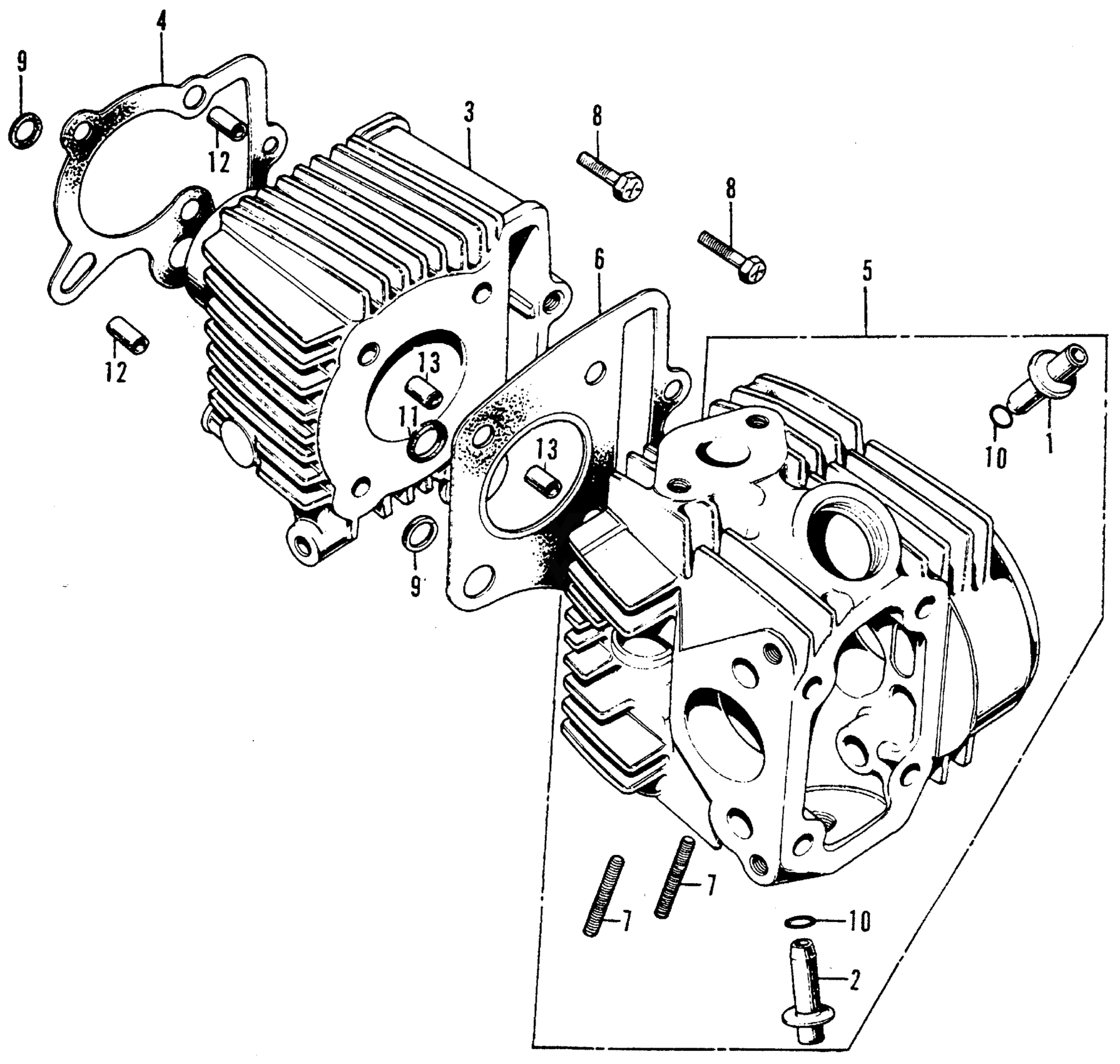

Honda Z50AA (77) MINI TRAIL 50, JPN, VIN# Z50A-6200003 TO Z50A-6219155 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE, VALVE This part replaces 12021-035-811.

12023-035-405

Unavailable

1

GUIDE, VALVE

12023-035-405

Unavailable

2

GUIDE, EX. VALVE

12023-051-320

Unavailable

3

CYLINDER This part replaces 12101-041-030.

12101-GB2-000

$197.73

3

CYLINDER

12101-GB2-000

$197.73

3

CYLINDER This part replaces 12101-041-040.

12101-GB2-000

$197.73

4

GASKET, CYLINDER This part replaces 12191-GB2-004.

12191-GW8-683

$8.88

4

GASKET, CYLINDER This part replaces 12191-GB2-306.

12191-GW8-683

$8.88

4

GASKET, CYLINDER This part replaces 12191-GW8-681.

12191-GW8-683

$8.88

4

GASKET, CYLINDER This part replaces 12191-118-670.

12191-GW8-683

$8.88

5

CYLINDER HEAD (NOT AVAILABLE) This part replaces 12200-041-030.

12200-041-305

Unavailable

5

CYLINDER HEAD (NOT AVAILABLE) This part replaces 12200-041-040.

12200-041-305

Unavailable

5

CYLINDER HEAD (NOT AVAILABLE)

12200-041-305

Unavailable

6

GASKET, CYLINDER HEAD

12251-065-505

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-065-740.

12251-065-505

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-065-741.

12251-065-505

Unavailable

7

BOLT, STUD (6X32) This part replaces 90033-041-000.

90033-041-020

$2.25

7

BOLT, STUD (6X32) This part replaces 90033-041-010.

90033-041-020

$2.25

7

BOLT, STUD (6X32)

90033-041-020

$2.25

8

BOLT (6MM) This part replaces 90082-035-000.

90082-035-010

$2.39

8

BOLT (6MM)

90082-035-010

$2.39

9

GASKET, RUBBER (16MM)

91303-035-000

$4.87

10

O-RING (9X1.6) (ARAI) This part replaces 91305-028-158.

91305-028-900

$2.92

10

O-RING (9X1.6)

91305-028-900

$2.92

11

GASKET, RUBBER (9MM) This part replaces 91306-035-000.

91306-141-000

$4.65

11

GASKET, RUBBER (9MM)

91306-141-000

$4.65

12

PIN A, DOWEL (8X12)

94301-08120

$2.19

13

PIN A, DOWEL (8X14)

94301-08140

$2.25
