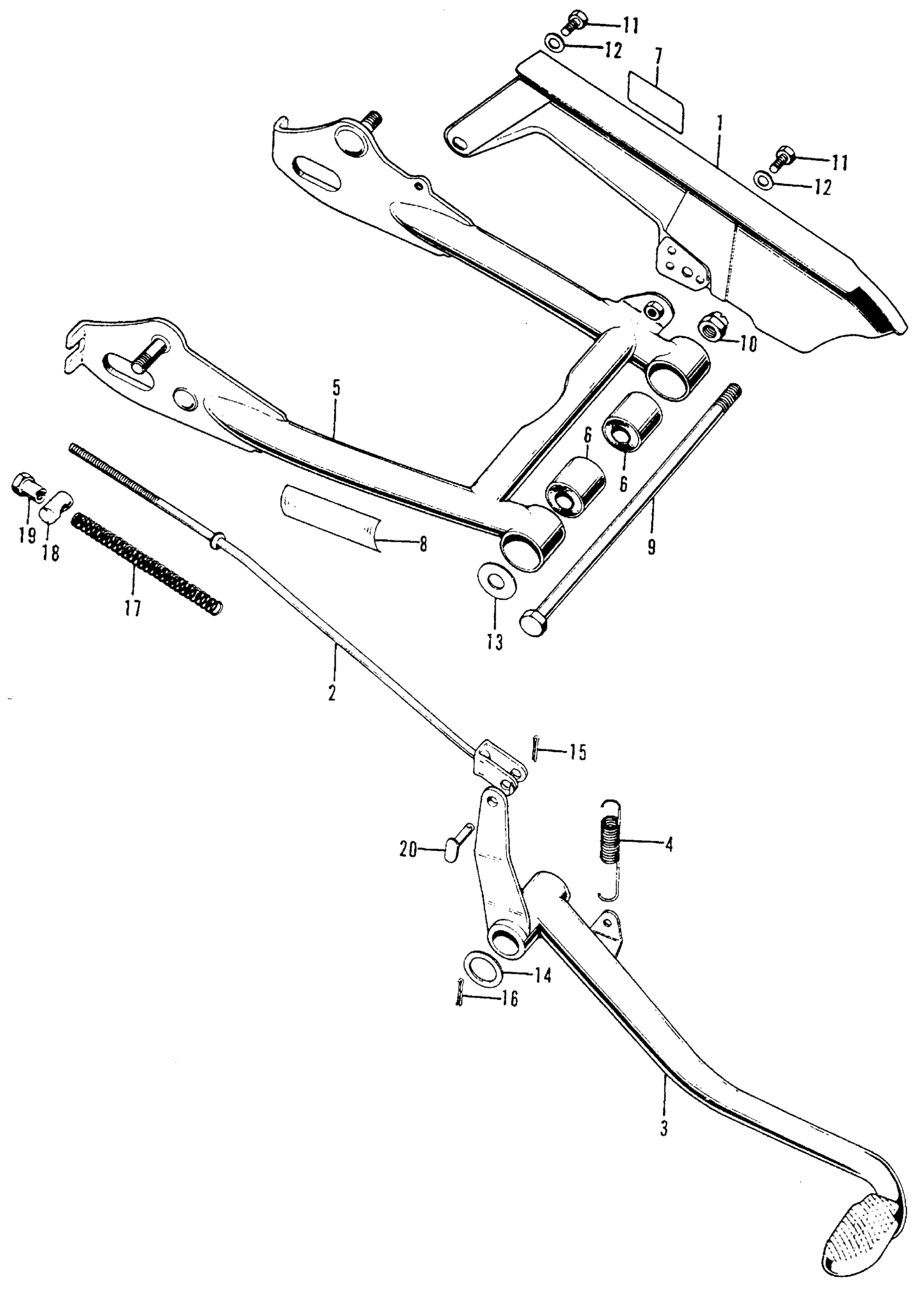

Honda Z50AA (76) MINI TRAIL 50, JPN, VIN# Z50A-6100001 SWINGARM + CHAIN CASE + RAKE PEDAL Diagram

CASE, DRIVE CHAIN *NH1* (BLACK)

40510-130-670B

Unavailable

ROD, RR. BRAKE

43451-120-010

Unavailable

PEDAL, RR. BRAKE

46500-130-690

Unavailable

SPRING, BRAKE PEDAL This part replaces 46514-028-000.

46514-GW8-670

$4.33

SWINGARM, RR. *NH1* (BLACK) (NOT AVAILABLE)

52100-120-020B

Unavailable

BUSH, SWINGARM PIVOT RUBBER

52108-081-000

$8.80

LABEL, TIRE CAUTION (NOT AVAILABLE)

87505-130-700

Unavailable

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

BOLT, SWINGARM PIVOT

90121-063-000

$16.64

NUT, SELF-LOCK (10MM)

90351-268-000

$2.87

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, PLAIN (10MM)

94101-10000

$1.49

WASHER, RR. SWINGARM PIVOT BOLT

90526-268-000

$3.10

PIN, COTTER (1.6X12)

94201-16120

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, COTTER (3.0X45)

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

SPRING A, BRAKE ROD

95014-73100

$1.49

JOINT A, BRAKE ARM | Use up to Frame SN 6112060

95015-31001

$1.53

JOINT, BRAKE ARM | Use from Frame SN 6112061

95015-32001

$1.49

NUT A, BRAKE ROD ADJUSTING | Use up to Frame SN 6112060

95015-41000

$1.49

NUT B, BRAKE ROD ADJUSTING | Use from Frame SN 6112061

95015-42000

$1.83

PIN B, BRAKE ROD JOINT

95015-52000

$2.03
